Description
ANTEC PSU 850W HCG850 HIGH CURRENT EXTREME GOLD
0-761345-11553-7 Power Supply
Engineered to meet the power demands of high-end systems, the Antec High Current Gamer Extreme power supply series boasts unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC.
Specification
Power Output Group
650W – 1100W
Power Ouput
850W
PSU Form Factor
ATX PS/2
Efficiency
80+ Gold
PFC
Active PFC
Rails 12V
1
12V Max Load
70A

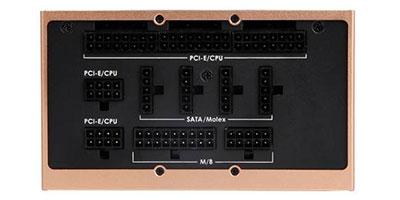

SATA Connectors
10
Molex 4 pin
6
PCI-E Connectors 8 pin
6
EPS 12V 8 pin
2
Package
Retail
Information
| 100% Japanese Capacitors: Using 100% high-performance Japanese capacitors, the HCG Extreme Gold series ensures the tightest DC stability and regulation, for reliability that you and your system can count on. |
 |
 |
PhaseWave™ Design: A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology. |
| Server-grade 50°C Temperature Rating: HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient. |
 |
