Description

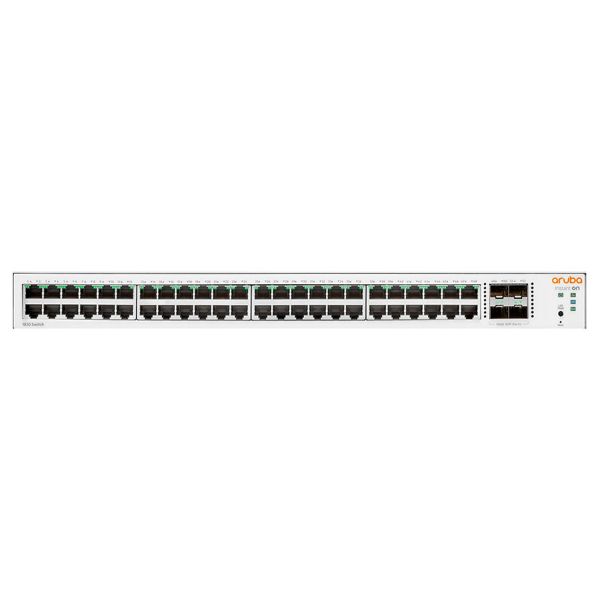

Aruba Instant On 1830 48G 4SFP Network Switch 48-Port Gigabit Managed

Interfaces

Ports     48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)

4 x 10/100/1000 Mb/s Gigabit SFP

Protocols

Layer Services Supported             Layer 2 Support

Supported Protocols      Auto-MDIX/MDI

IGMP Snooping

Link Aggregation

Port Mirroring

MAC Address Table Size               16K

Security

Security Features             DoS Attack Prevention

Storm Control

Standards

Supported IEEE Standards            802.1d, 802.1p, 802.1q, 802.1w, 802.3, 802.3ab, 802.3ac, 802.3az, 802.3x, 802.3z

Performance

Latency                2.8 to 5.2 µs

Forwarding Rate               77.37 Mpps

Switching Bandwidth      104 Gb/s

Packet Buffer    1.5 MB

Computer

Flash Memory   256 MB

CPU       800 MHz Cortex A9 Single-Core

Memory              512 MB

Electrical

Power Draw       40.00 W (Max)

17.7 W (Idle)

AC Input Power                100 to 240 VAC, 50 / 60 Hz at 0.6 to 0.9 A

Power Supply Type         Internal

Environmental

Operating Temperature                32 to 104°F / 0 to 40°C

Operating Humidity        15 to 95%

Storage Temperature    -40 to 158°F / -40 to 70°C

Storage Humidity             15 to 95%

Operating Altitude          10,000′ / 3048 m

Noise Level         19.0 dB

General

Cooling System Fan

Mean Time Between Failures (MTBF)     1,002,144 Hours

Rack Form Factor             1 RU

Dimensions        17.4 x 8.5 x 1.7″ / 443 x 215.9 x 43.9 mm

Weight 7.8 lb / 3.54 kg

Packaging Info

Package Weight                10.775 lb

Box Dimensions (LxWxH)             20.1 x 15.7 x 5.1″
