Description

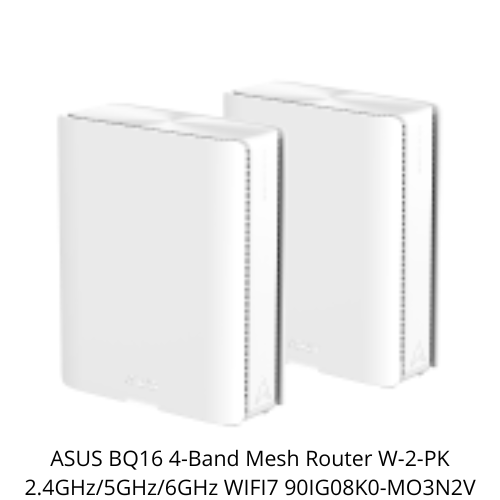

ASUS BQ16 4-Band Mesh Router W-2-PK 2.4GHz/5GHz/6GHz WIFI7 90IG08K0-MO3N2V
Network standards
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- WiFi 4 (802.11n)
- WiFi 5 (802.11ac)
- WiFi 6 (802.11ax)
- WiFi 6E (802.11ax)
- WiFi 7 (802.11be)
- IPv4
- IPv6
Product segment
- Maximum performance BE25000: 1376 + 5764 + 5764 + 11529 Mbps
Data transfer speed
- WiFi 7 (802.11be) (2.4 GHz): up to 1376 Mbps
- WiFi 7 (802.11be) (5 GHz-1): up to 5764 Mbps
- WiFi 7 (802.11be) (5 GHz-2): up to 5764 Mbps
- WiFi 7 (802.11be) (6 GHz): up to 11529 Mbps
Antennas
- Internal antenna x 12
MIMO scheme
- 2.4 GHz 4 × 4
- 5 GHz-1 4 × 4
- 5 GHz-2 4 × 4
- 6 GHz 4×4
RAM
- 2 GB RAM
- 256 MB Flash
Acceleration tools
- OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: Standard and Universal
4096-QAM high data rate
Bandwidth 20/40/80/160/320 MHz
Operating frequency
- 2.4 GHz / 5 GHz / 6 GHz
- 2.4 GHz
- 5 GHz-1
- 5 GHz-2
- 6 GHz
Operating modes
- Wireless Router Mode
- AiMesh Node Mode
- Access Point Mode
Ports
- 10G WAN/LAN x 1, 10G LAN x 1, 1G WAN/LANx 1, 1G LAN x2, USB 3.0
Buttons
- Reset/ WPS/ Rocker Switch
LED indicator
- Power x 1
Feeding
- AC Input: 110V~240V(50~60Hz)
- DC Output: 19V with max . 3.42A current AC Input:
- 110V~240V(50~60Hz)
- DC Output: 19V with max. 3.42A current
Equipment
- ZenWiFi BQ16
- RJ-45 cable
- Power adapter
- Warranty card
- Quick start guide
Mass, g
- 1341 g
Dimensions with antennas (L*W*H) mm
- 214 x 174.2 x 72 mm
AiMesh
- AiMesh
- Primary AiMesh router
- AiMesh node
Parental control
- Parental Controls
- Web and App Filters
- Time Scheduling
- Reward
- Parental Controls – Safe Browsing
- Individual Internet Access Schedule
- – Max. number of profiles: 64
- – Max. number of content filtering rules: 64
Mobile app
- ASUS Router APP
Guest network
- Guest network provides Internet connection for guests but limits access to your local network
Guest network
– Max. guest network rules :2.4G+5G/ 2.4G+5G+6G: 8
Guest network connection time limit
Open system, WPA/WPA2-Personal/WPA3-Personal
Security
- AiProtection
- VPN
- WPA3 Enterprise, WPA3 Personal, WPA2 Enterprise ,
- WPA2 Personal, WPA Personal, WPA Enterprise , WPS support
- WPS
- Let’s Encrypt
- DNS-over-TLS
- SSH
- Security Scan
- Firewall
- – Max. Firewall Keyword Filter: 64
- – Max. Firewall Service Filter: 32
- – Max. Firewall URL Filter: 64
AiProtection
- AiProtection Pro
- Yes
- Blocking malicious websites
- Two-Way IPS
- Detecting and blocking infected devices
Virtual Private Network (VPN)
- Instant Guard
- VPN Client L2TP
- VPN Client OVPN
- VPN Client PPTP
- VPN Client WireGuard VPN
- Server IPSec VPN
- Server OVPN
- VPN Server PPTP
- VPN Server WireGuard
- VPN Fusion
Traffic management
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
– Max. number of bandwidth limiter rules:32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
– Traffic analysis period:Daily, Weekly, Monthly
• Website History
– Traffic analysis period:Daily, Weekly, Monthly
• Bandwidth Monitor
• Bandwidth Limiter
– Max. number of bandwidth limiter rules:32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
– Traffic analysis period:Daily, Weekly, Monthly
• Website History
– Traffic analysis period:Daily, Weekly, Monthly
WAN
- Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
Dual WAN
Android tethering
Port forwarding
– Max. number of port forwarding rules:64
Port triggering
– Max. number of dynamic port forwarding rules:32
DMZ
DDNS
LAN
- DHCP Server
IGMP snooping
IPTV
LAN Link Aggregation
Manually assign IP address
Wake on LAN (WOL)
Wireless network
- MU-MIMO
UTF-8 SSID
WiFi MAC address filter
– Max. number of MAC address filters: 64
Wireless scheduler
Airtime fairness
Universal beamforming
Explicit beamforming
USB application
- Android tethering
Yes
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
Administration
- Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Automatic firmware update
