Description
Chipset
AMD A520
Socket
AM4
MB Form Factor
Micro ATX
Memory Type
DDR4
DDR4 Slots
4
Storage Interface
SATA3
\Â M.2 PCIe
\Â M.2 SATA
SATA3 Ports
4
M.2 PCIe Connectors
1 (PCIE 3.0 x4 and SATA modes)
RAID
0,1,10
MB Expansion Slots
Trusted Platform Module (TPM)
PCI-E x16
1
PCI-E x1
2
USB2.0 Ports
6
USB3.2 Ports
6
Front USB Connector
USB 2.0
\Â USB 3.2
Graphics O.B
AMD APU
Graphics Interface
VGA
\Â DVI
\Â HDMI
O.B Audio
3 Port
LAN
Realtek GbE
Network Connections
GIGABIT LAN
COM Port
Optional
Package
Retail
Information

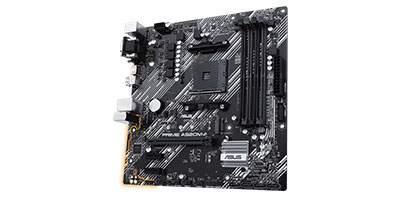

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. | ![]() |
![]() |

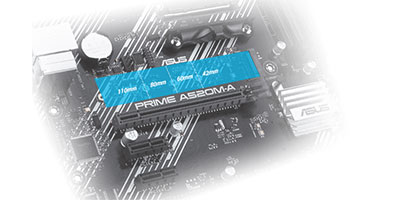

PCIe 3.0 M.2 (up to 32 Gbps) Achieve speed with onboard M.2 M.2 slot supports up to 22110 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data. |
USB 3.2 Gen 1 Type-A Numerous USB ports support high-end rigs loaded with peripherals, including four rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases. |
![]() |
