Description

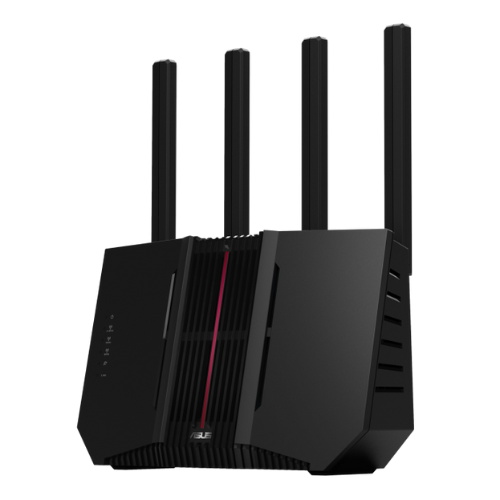

ASUS RT-BE92U Tri-Band Router 2.4GHZ/5GHZ/6GHZ WIFI7 4*ANT 90IG0950-MO9A0V
Model
ASUS RT-BE92U
Network standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Performance level
Maximum performance BE9700: 1032+2882+5764 Mbps
Data transfer speed
WiFi 7 (802.11be) (2.4 GHz): up to 1032 Mbps
WiFi 7 (802.11be) (5 GHz): up to 2882 Mbps
WiFi 7 (802.11be) (6 GHz): up to 5764 Mbps
WiFi 7 (802.11be) (5 GHz): up to 2882 Mbps
WiFi 7 (802.11be) (6 GHz): up to 5764 Mbps
Antennas
External antenna x 4
MIMO scheme
2.4 GHz 3 × 3
5 GHz 2 × 2
6 GHz 2×2
5 GHz 2 × 2
6 GHz 2×2
Processor
Quad-core 2.0 GHz processor
RAM
256MB Flash
1GB DDR4 RAM
1GB DDR4 RAM
Acceleration tools
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: Standard and Universal
4096-QAM high data rate
Bandwidth 20/40/80/160/320 MHz
Beamforming: Standard and Universal
4096-QAM high data rate
Bandwidth 20/40/80/160/320 MHz
Operating frequency
2.4 GHz
5 GHz
6 GHz
5 GHz
6 GHz
Operating modes
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode
Ports
1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
3 x 2.5 Gbps for LAN
USB 3.2 Gen1 x1
1 x 2.5Gbps for WAN/LAN
3 x 2.5 Gbps for LAN
USB 3.2 Gen1 x1
Buttons
WPS button, reset button, power switch
LED indicator
Power x1
WAN x1
LAN x1
2.4GHz x1
5GHz x1
6GHz x1
WAN x1
LAN x1
2.4GHz x1
5GHz x1
6GHz x1
Power supply
AC Input: 110V~240V (50~60Hz)
DC Output: 12V max. 3A
DC Output: 12V max. 3A
Equipment
RT-BE92U WiFi 7 Tri-band Router
wall mount kit
RJ-45 cable
Power Adapter
Quick Start Guide
Warranty Card
wall mount kit
RJ-45 cable
Power Adapter
Quick Start Guide
Warranty Card
Dimensions
247.18 x 101.59 x 287.47 mm
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Primary AiMesh router
AiMesh node
Parental control
Parental Controls
Web and App Filters
Time Scheduling
Safe Browsing
Individual Internet Access Schedule
– Max. number of profiles: 64
– Max. number of content filtering rules: 64
Web and App Filters
Time Scheduling
Safe Browsing
Individual Internet Access Schedule
– Max. number of profiles: 64
– Max. number of content filtering rules: 64
Guest network
The ability to create additional networks for various purposes, separated from the main network, is supported. This provides increased security and allows you to get a comprehensive network environment with your own settings.
• Maximum number of guest network rules: 2.4 GHz + 5 GHz: 3
– Guest Network Pro Encryption: Open system, WPA/WPA2/WPA3-Personal
• Maximum number of guest network rules: 2.4 GHz + 5 GHz: 3
– Guest Network Pro Encryption: Open system, WPA/WPA2/WPA3-Personal
Security
AiProtection
VPN
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Network Shield
• Number of keywords in firewall filter (max.) :64
• Network service firewall filter (max.) :32
• Firewall URL filter (max.) :64
VPN
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Network Shield
• Number of keywords in firewall filter (max.) :64
• Network service firewall filter (max.) :32
• Firewall URL filter (max.) :64
AiProtection
AiProtection Pro
AiProtection
Malicious website blocking
Two-way IPS
Detect and block infected devices
AiProtection
Malicious website blocking
Two-way IPS
Detect and block infected devices
Virtual Private Network (VPN)
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard VPN
Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard VPN
Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Traffic management
Adaptive QoS
Bandwidth Manager
Bandwidth Limiter
– Max. Bandwidth Limiter Rules: 32
Traditional QoS
Traffic Manager
Real-time Traffic Monitoring
Wired Traffic
Monitoring Wireless Traffic Monitoring
Traffic Analyzer
– Traffic Analysis Period: Daily, Weekly, Monthly
Website Browsing History
Bandwidth Manager
Bandwidth Limiter
– Max. Bandwidth Limiter Rules: 32
Traditional QoS
Traffic Manager
Real-time Traffic Monitoring
Wired Traffic
Monitoring Wireless Traffic Monitoring
Traffic Analyzer
– Traffic Analysis Period: Daily, Weekly, Monthly
Website Browsing History
WAN
Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
Modem 3G/4G LTE
4G / 5G Auto Mobile Tethering
Port Forwarding
– Max. number of port forwarding rules: 64
Port Switching
– Max. number of port switching rules32
DMZ
DDNS
NAT Passthrough :
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
Modem 3G/4G LTE
4G / 5G Auto Mobile Tethering
Port Forwarding
– Max. number of port forwarding rules: 64
Port Switching
– Max. number of port switching rules32
DMZ
DDNS
NAT Passthrough :
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay
LAN
DHCP Server
IGMP Snooping
IPTV
Manual IP Address Assignment
– Max. number of IP Address Assignment Rules: 128
Wake on LAN (WOL)
IGMP Snooping
IPTV
Manual IP Address Assignment
– Max. number of IP Address Assignment Rules: 128
Wake on LAN (WOL)
Wireless network
MU-MIMO
UTF-8 SSID
Wi-Fi MAC address filtering
– Max. MAC address filters: 64
Wireless scheduler
Airtime parity
RADIUS server
Universal beamforming
Explicit beamforming
UTF-8 SSID
Wi-Fi MAC address filtering
– Max. MAC address filters: 64
Wireless scheduler
Airtime parity
RADIUS server
Universal beamforming
Explicit beamforming
USB application
4G / 5G Auto Mobile Tethering
File System :
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4
Safely detach disk
AiCloud
Download master
AiDisk
Media server
Time Machine
Samba server
FTP server
Shared folder access rights
File System :
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4
Safely detach disk
AiCloud
Download master
AiDisk
Media server
Time Machine
Samba server
FTP server
Shared folder access rights
User interface
Web: ASUSWRT
App: ASUS Router APP
App: ASUS Router APP
Administration
Save and restore settings
Diagnostic tools
Feedback system
System log
Notification of new device connection
Login Captcha
Connection diagnostics
Automatic firmware update
Diagnostic tools
Feedback system
System log
Notification of new device connection
Login Captcha
Connection diagnostics
Automatic firmware update
