Description
ASUS ZEN XD5 W-2-PK AX3000 DUAL BAND MESH WIFI6 2*ANT 90IG0750-MO3B40
Model

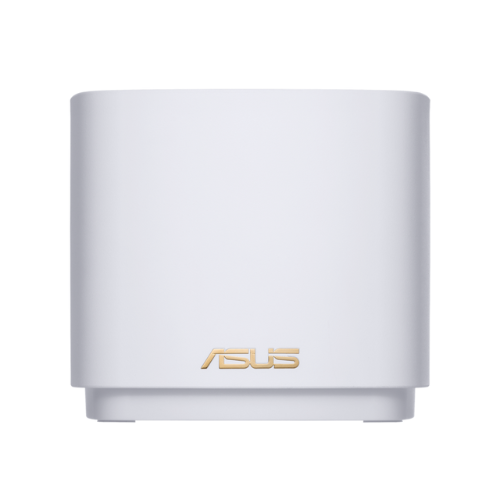

ASUS ZenWiFi XD5
Model name
XD5 (W-3-PK)
XD5 (W-2-PK)
XD5 (W-1-PK)
XD5 (W-2-PK)
XD5 (W-1-PK)
Network standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product segment
Maximum performance of the AX3000 AX system: 2402 Mbps + 574 Mbps
Data transfer speed
802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps 802.11n
: up to 400 Mbps
802.11ac: up to 1733 Mbps
802.11ax (2.4 GHz): up to 1300 Mbps
WiFi 6 (802.11ax) (5 GHz): up to 2402 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps 802.11n
: up to 400 Mbps
802.11ac: up to 1733 Mbps
802.11ax (2.4 GHz): up to 1300 Mbps
WiFi 6 (802.11ax) (5 GHz): up to 2402 Mbps
Antennas
2 internal dual-band antennas
MIMO scheme
2.4 GHz 2 × 2
5 GHz 2 × 2
5 GHz 2 × 2
Processor
Quad-core 1.7 GHz processor
RAM
128 MB Flash
512 MB RAM
512 MB RAM
Acceleration tools
MIMO technology
Operating frequency
2.4 GHz
5 GHz
5 GHz
Operating modes
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
AiMesh Node Mode
Access Point Mode

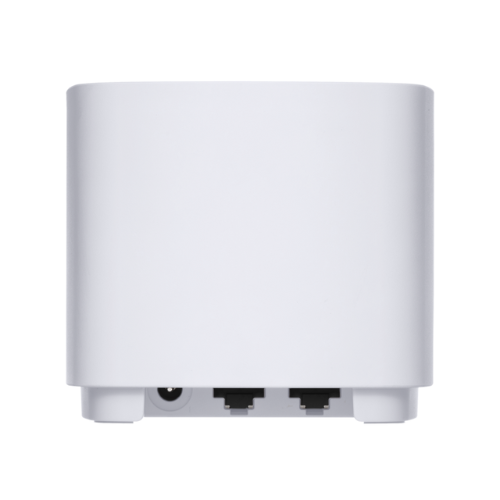

Ports
RJ45 for Gigabits BaseT for WAN/LAN x 1
RJ45 for Gigabits BaseT for LAN x1
RJ45 for Gigabits BaseT for LAN x1
Buttons
WPS button, reset button
LED indicator
Power x 1
Feeding
AC input: 110V ~ 240V (50 ~ 60Hz)
DC output: 12V with max. current 1.5A
AC input: 110V ~ 240V (50 ~ 60Hz)
DC output: 12V with max. current 1.5A
DC output: 12V with max. current 1.5A
AC input: 110V ~ 240V (50 ~ 60Hz)
DC output: 12V with max. current 1.5A
Equipment
ZenWiFi XD5
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Screw Pack
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Screw Pack
Mass, g
307 g
Dimensions with antennas (L*W*H) mm
90 x 90 x 85 mm
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Primary AiMesh router
AiMesh node
Parental control
Parental Controls
Time Scheduling
Reward
Parental Controls – Safe Browsing
Individual Internet Access Schedule
Time Scheduling
Reward
Parental Controls – Safe Browsing
Individual Internet Access Schedule
Mobile app
ASUS Router APP
Guest network
Guest network provides Internet connectivity for guests but limits access to your local network
Guest network
– Max. guest network rules: 2.4GHz x3, 5GHz x3
Guest network connection time limit
Open system, WPA/WPA2/WPA3-Personal
Guest network
– Max. guest network rules: 2.4GHz x3, 5GHz x3
Guest network connection time limit
Open system, WPA/WPA2/WPA3-Personal
Security
AiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
– Max. Firewall Keyword Filter: 64
– Max. Firewall Service Filter: 32
– Max. Firewall URL Filter: 64
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
– Max. Firewall Keyword Filter: 64
– Max. Firewall Service Filter: 32
– Max. Firewall URL Filter: 64
AiProtection
AiProtection Classic
Yes
Block malicious sites
Detect and block infected devices
Yes
Block malicious sites
Detect and block infected devices
Virtual Private Network (VPN)
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard VPN
Server IPSec VPN
Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard VPN
Server IPSec VPN
Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic management
• Bandwidth Limiter
– Max. number of bandwidth limiter rules: 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
– Max. number of bandwidth limiter rules: 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
WAN
– Internet Connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
Port forwarding
– Max. number of port forwarding rules:64
Port triggering
– Max. number of dynamic port forwarding rules:32
DMZ
DDNS
Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
Port forwarding
– Max. number of port forwarding rules:64
Port triggering
– Max. number of dynamic port forwarding rules:32
DMZ
DDNS
LAN
DHCP Server
IGMP snooping
IPTV
Manually assign IP address
– Max. number of IP address assignment rules: 64
Wake on LAN (WOL)
IGMP snooping
IPTV
Manually assign IP address
– Max. number of IP address assignment rules: 64
Wake on LAN (WOL)
Wireless network
UTF-8 SSID
WiFi MAC address filter
– Max. number of MAC address filters: 64
Wireless scheduler
Airtime fairness
Universal beamforming
Explicit beamforming
WiFi MAC address filter
– Max. number of MAC address filters: 64
Wireless scheduler
Airtime fairness
Universal beamforming
Explicit beamforming
Administration
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Automatic firmware update
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Automatic firmware update
