Description

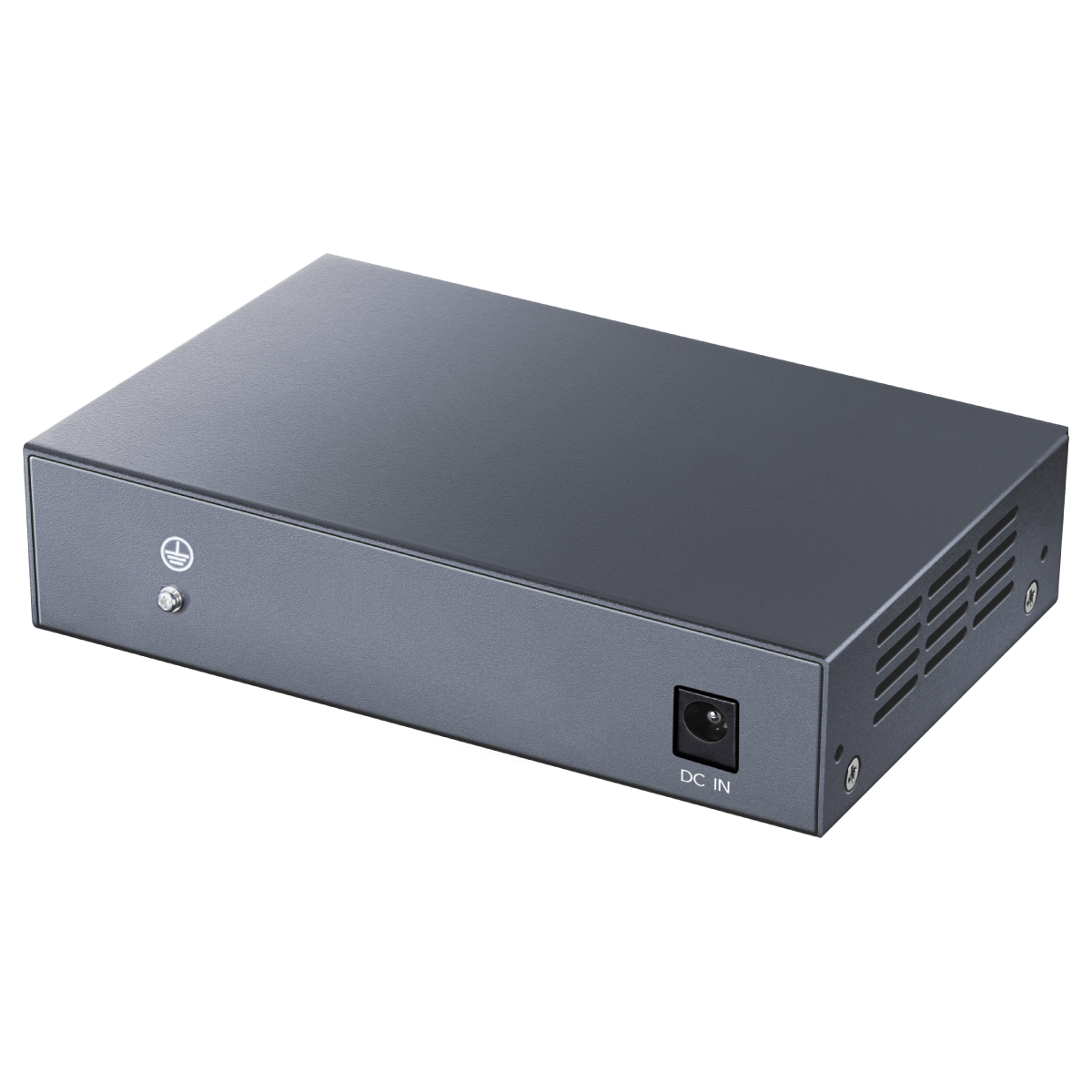

CUDY HS105-IL 5-Port 2.5G Desktop Switch

Name: CUDY HS105-IL 5-Port 2.5G Desktop Switch
SKU: HS105-IL
Availability: InStock

● 5× 100/1000/2500 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
● IEEE 802.3x flow control and 4 Mbit packet buffer prevents packet loss
● Power saving strategy saves power consumption when ports are idle
● IGMP for high-efficiency multi-cast transmitting
● Loop detection blocks loop automatically, improving reliability
● Desktop and wall-mounting

Technical details

specification

Switching Capacity25Gbps
Throughput18.6 Mpps
Packet Buffer4 Mbit
MAC Address8K
Jumbo Frame15KB
Transfer ModeStore and forward
MTBF100000 hours
Network protocolIEEE802.3u (100Base-TX) | IEEE802.3ab (1000Base-T) | IEEE802.3bz (2.5GBase-T) | IEEE802.3x (Flow control)
Network Medium100Base-TX : Cat5 or higher (≤100m) | 1000Base-TX : Cat5 or higher (≤100m) | 2.5GBASE-T: Cat 5e (≤50m), Cat 6 or higher (≤100m)
Working EnvironmentWorking Temperature：-0~40°C | Storage Temperature: -40~70°C Working Humidity ：0%~100%, non-condensing | Storage Temperature: 5%~90%, non-condensing
Structure SizeProduct Size: 119×85×28 mm (4.69×3.35×1.1 inches)
InstallationDesktop, Wall-Mounting
Power SavingSaves power consumption when ports are idle
Power VoltageAdapter Input Voltage ：AC 100-240 V | Switch Input Voltage:：DC 12V 1A
Power ConsumptionMax: 10.5W | Idle: 4.7W
ESD Protection±4KV contact discharge and ±8KV air discharge
Grounding PointGrounding Point
