Description

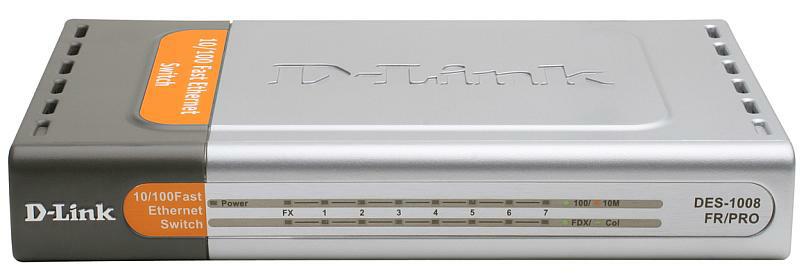

D-Link Switch 8 Port 7X 10/100 + 1X BASE-FX SC 20KM FIBER
DES-1008FR/PRO 7-Port 10/100M + 1-Port 100Base-FX SC BiDi Single-Mode 20KM Fiber (TX:1310nm/ RX:1550nm) Unmanaged Standalone Switch
Specification
Ports Number
Ports Speed
Management
Information
– supports 1K MAC addresses
– Supports 64KBytes RAM for data buffering
– Extensive front-panel diagnostic LEDs
– Switching Capacity: 1.6Gbps
– Store-and-Forward switching method
– RoHS Compliant.
Number of Ports
– 7-Port 10/100Base-T
– 1-Port 100Base-FX Single-Mode 15KM Fiber
7-Port 10/100Base-T:
– IEEE 802.3 10BASE-T
– IEEE 802.3u 100BASE-TX
– Support Auto-Negotiation for copper ports
– Support Half/Full-Duplex operations at 10/100Mbps.
– Support back pressure at Half-Duplex operation
– IEEE 802.3x Flow Control support.
– Auto MDI/MDI-X
– Wire speed reception and transmission
1-Port 100Base-FX:
– IEEE 802.3u 100BASE-FX
– Support DIP switch to change the mode between half duplex and full duplex.
Dimension
192.5 x 118.5 x 32 mm
(7.5 x 4.5 x 1.25 inches)
Port packet Filtering/Forwarding Rate
14,880 pps for 10M
148,800 pps for 100M
