GIGABYTE BRIX BAREBONE BSRE-1505 GB-BSRE-1505 Mini PC

GIGABYTE BRIX BAREBONE BSRE-1505

GB-BSRE-1505 Mini PC

AMD® Ryzen™ Embedded R1505G Dual Cores Processor Integrated Graphics Processor – Radeon™ Vega 8 Graphics Dual Channel DDR4 2400MHz, 2 x SO-DIMMs, Max. 32GB 3 x HDMI ports, supporting a maximum resolution of 4096×2160@60Hz 2 x GbE LAN ports, Wi-Fi 802.11ac / BT4.2 ALC 269 Audio Codec 2 x M.2 for SSD (1 x PCIe/SATA Mode, 1 x SATA Mode) 1 x Mini PCI slot Infineon TPM onboard* 4 x USB 2.0 (Front), 2 x USB 3.2 (Back) Headphone/microphone jack Support VESA Mount Onboard headers: 2 x RS232/422/485/5V/12V/RI COM ports; 2 x RS232 COM ports

Specification

Dimension

196.2 x 44.4 x 140 mm, 1.16L
Motherboard Size

3.5” SBC, 146 x 102 mm
CPU

AMD Ryzen™ Embedded R1505G Dual Cores Processor
4 Threads / 5M Cache
2.4 – 3.3 GHz, 25W TDP
Memory

2 x SO-DIMM DDR4 2400MHz, Max. 32GB
Dual channel memory architecture
LAN

Dual Realtek RTL8111H GbE LAN
Wifi Card

Intel^® Wi-Fi 802.11ac / BT4.2
Graphics

AMD Radeon VEGA 8 / 3 SIMD 1000MHz
Audio

ALC 269 Codec
HDMI Resolution (Max.)

3 x HDMI 2.0 @4K/60P
Max. Bandwidth 4K / 90P
Storage

1 x M.2 PCIe x4/SATA Mode
1 x M.2 SATA Mode
Expansion Slots

Mini PCI slot

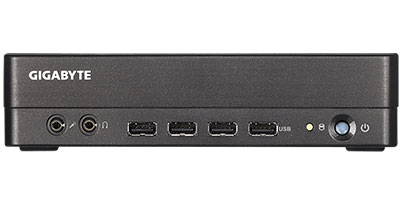

Front I/O

4 x USB 2.0
1 x Headphone / Mic Jack
1 x Power Button

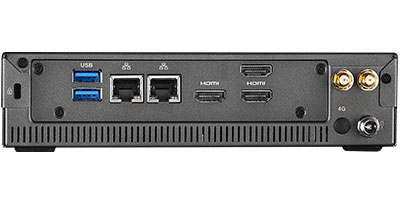

Rear I/O

4‎ x HDMI 2.0
2 x USB 3.1 Gen 2
2 x GbE LAN ports
1 x DC-In
Power Supply

100-240V input . Output 7.1A 19V, 135W
VESA

Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS

Microsoft Windows 10 Home/Pro/IoT, Linux

Environment

Operating Temperature 0°C to 35°C
Storage Temperature -20°C to +60°C

Information

Small Outside, Powerful Inside The perfect choice for commercial workplaces. Available now with the latest AMD’s Embedded Solution.
	Performance GB-BSRE-1505 features the AMD Ryzen Embedded R1505G APU. The R1505G is a 2-core/4-thread SoC that delivers an optimal balance of performance with up to 3x generational performance improvement per watt, and 4x better CPU and graphics performance per dollar than the competition.
Triple-Display Support The GB-BSRE-1505 BRIX PRO model supports up to 3 independent displays through its 3x HDMI ports. Combining this with 4K resolution on each output gives users the flexibility to configure their working environment without any limitation.
	Connectivity GB-BSRE-1505 offers a plethora of available connections. It provides multiple ports such as USB 3.2 ports, Wi-Fi connection, 3 x HDMI ports, legacy USB 2.0 ports and more. It is equipped with the most of the modern connectivity to be able to cover the needs of a business at all times.
