GIGABYTE GEFORCE RTX 3060 GV-N3060EAGLE OC-12GD 2.0 N3060EAGLEOC12GD2.0 Video Card
NVIDIA Ampere Streaming Multiprocessors 2nd Generation RT Cores 3rd Generation Tensor Cores Powered by GeForce RTX™ 3060 Integrated with 12GB GDDR6 192-bit memory interface WINDFORCE 2X Cooling System with alternate spinning fans 100mm unique blade fans RGB Fusion 2.0 Protection back plate Limited Hash Rate version.
- Graphics ProcessingGeForce RTX™ 3060
- Core Clock1807 MHz (Reference Card: 1777 MHz)
- CUDA® Cores3584
- Memory Clock15000 MHz
- Memory Size12 GB
- Memory TypeGDDR6
- Memory Bus192 bit
- Memory Bandwidth (GB/sec)360 GB/s
- Card BusPCI-E 4.0 x 16
- Digital max resolution7680×4320
- Card sizeL=242 W=124 H=41 mm
- PCB FormATX
- DirectX12 Ultimate
- Recommended PSU550W
- Power Connectors8 pin*1
- OutputDisplayPort 1.4a *2
HDMI 2.1 *2
- SLI SupportN/A
- AccessoriesQuick guide

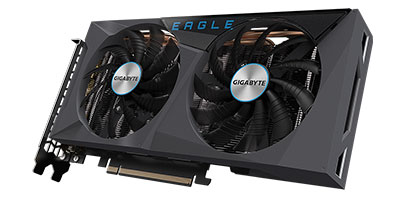

The WINDFORCE 2X cooling system features 2X100mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
