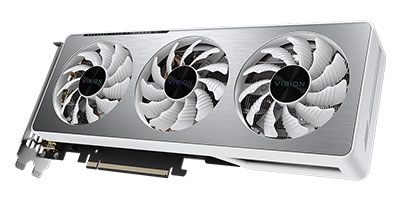

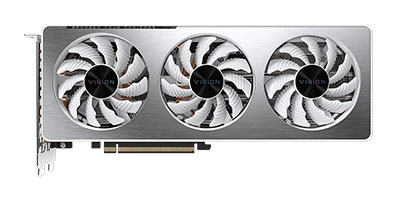

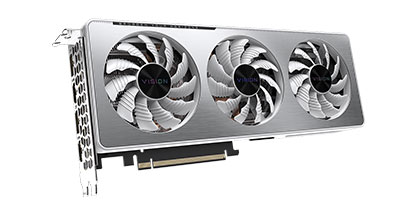

GIGABYTE GEFORCE RTX 3060 TI GV-N306TVISION OC-8GD 2.0 N306TVISIONOC8GD2.0 Video Card

NVIDIA Ampere Streaming Multiprocessors 2nd Generation RT Cores 3rd Generation Tensor Cores Powered by GeForce RTX™ 3060 Ti Integrated with 8GB GDDR6 256-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans RGB Fusion 2.0 Protection metal back plate LHR (Lite Hash Rate) version.

Specification

Graphics Processing

GeForce RTX™ 3060 Ti
Core Clock

1755 MHz (Reference card: 1665 MHz)
CUDA® Cores

4864
Memory Clock

14000 MHz
Memory Size

8 GB
Memory Type

GDDR6
Memory Bus

256 bit
Memory Bandwidth (GB/sec)

448 GB/s
Card Bus

PCI-E 4.0 x 16
Digital max resolution

7680×4320
Multi-view

4
Card size

L=281 W=115 H=40 mm
PCB Form

ATX
DirectX

12 Ultimate
OpenGL

4.6
Recommended PSU

650W
Power Connectors

8 Pin*1, 6 Pin*1
Output

DisplayPort 1.4a *2
HDMI 2.1 *2
SLI Support

N/A

Accessories

Quick guide

Information

CREATE YOUR WORK FASTER THAN EVER Powerful GeForce RTX™ 30 VISION series accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING、3D ANIMATION、PHOTOGRAPHY、GRAPHIC DESIGN、ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time.
	WINDFORCE 3X COOLING SYSTEM The WINDFORCE 3X cooling system features 3x80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
	3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
HEAT PIPES DIRECT TOUCH The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
