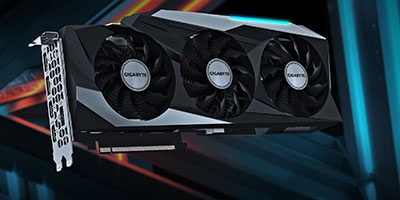

GIGABYTE GEFORCE RTX 3090 GV-N3090GAMING OC-24GD
N3090GAMINGOC24GD Video Card
NVIDIA Ampere Streaming Multiprocessors 2nd Generation RT Cores 3rd Generation Tensor Cores Powered by GeForce RTX™ 3090 Integrated with 24GB GDDR6X 384-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans RGB Fusion 2.0 Protection metal back plate.
Specification
-
Graphics ProcessingGeForce RTX™ 3090
-
Core Clock1755 MHz (Reference card is 1695 MHz)
-
CUDA® Cores10496
-
Memory Clock19500 MHz
-
Memory Size24 GB
-
Memory TypeGDDR6X
-
Memory Bus384 bit
-
Memory Bandwidth (GB/sec)936 GB/s
-
Card BusPCI-E 4.0 x 16
-
Digital max resolution7680×4320@60Hz
-
Multi-view4
-
Card sizeL=320 W=129 H=55 mm
-
PCB FormATX
-
DirectX12 Ultimate
-
OpenGL4.6
-
Recommended PSU750W
-
Power Connectors8 pin*2
-
OutputDisplayPort 1.4a *3
HDMI 2.1 *2 -
SLI Support2-way NVIDIA NVLINK™
-
Accessories1. Quick guide
2. 4-year warranty registrationInformation

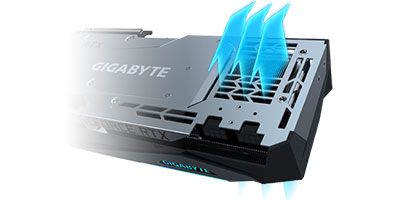

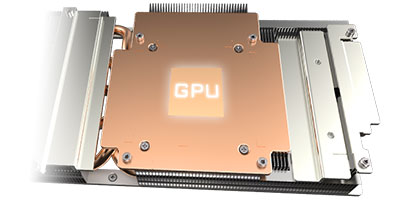

The WINDFORCE 3X cooling system features 2x 90mm and 1X80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
