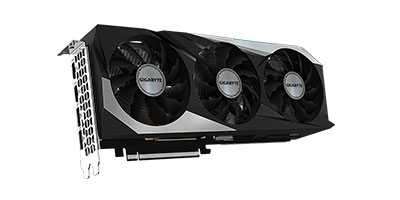

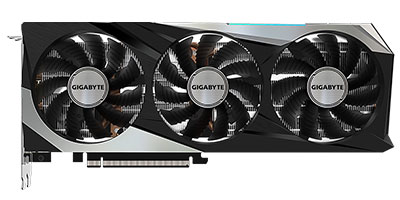

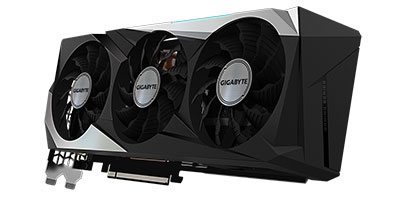

GIGABYTE RX 6900XT 16G GV-R69XTGAMING OC-16GD
R69XTGAMINGOC16GD Video Card
Powered by RDNA2 Radeon™ RX 6900 XT Integrated with 16GB GDDR6 256-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans Graphene nano lubricant RGB Fusion 2.0 Dual BIOS Protection metal back plate.
Specification
-
Graphics ProcessingRadeon™ RX 6900 XT
-
Core ClockBoost Clock* : up to 2285 MHz (Reference card: 2250 MHz)
Game Clock* : up to 2050 MHz (Reference card: 2015 MHz) -
Stream Processors5120
-
Process Technology7 nm
-
Memory Clock16000 MHz
-
Memory Size16 GB
-
Memory TypeGDDR6
-
Memory Bus256 bit
-
Memory Bandwidth (GB/sec)512 GB/s
-
Card BusPCI-E 4.0 x 16
-
Digital max resolution7680×4320
-
Multi-view4
-
Card sizeL=286 W=118 H=58 mm
-
PCB FormATX
-
DirectX12 Ultimate
-
OpenGL4.6
-
Recommended PSU850W
-
Power Connectors8 pin*3
-
OutputDisplayPort 1.4a *2
HDMI 2.1 *2 -
AccessoriesQuick guide
-
Note* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.Information
WINDFORCE 3X
COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 6 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
