Description

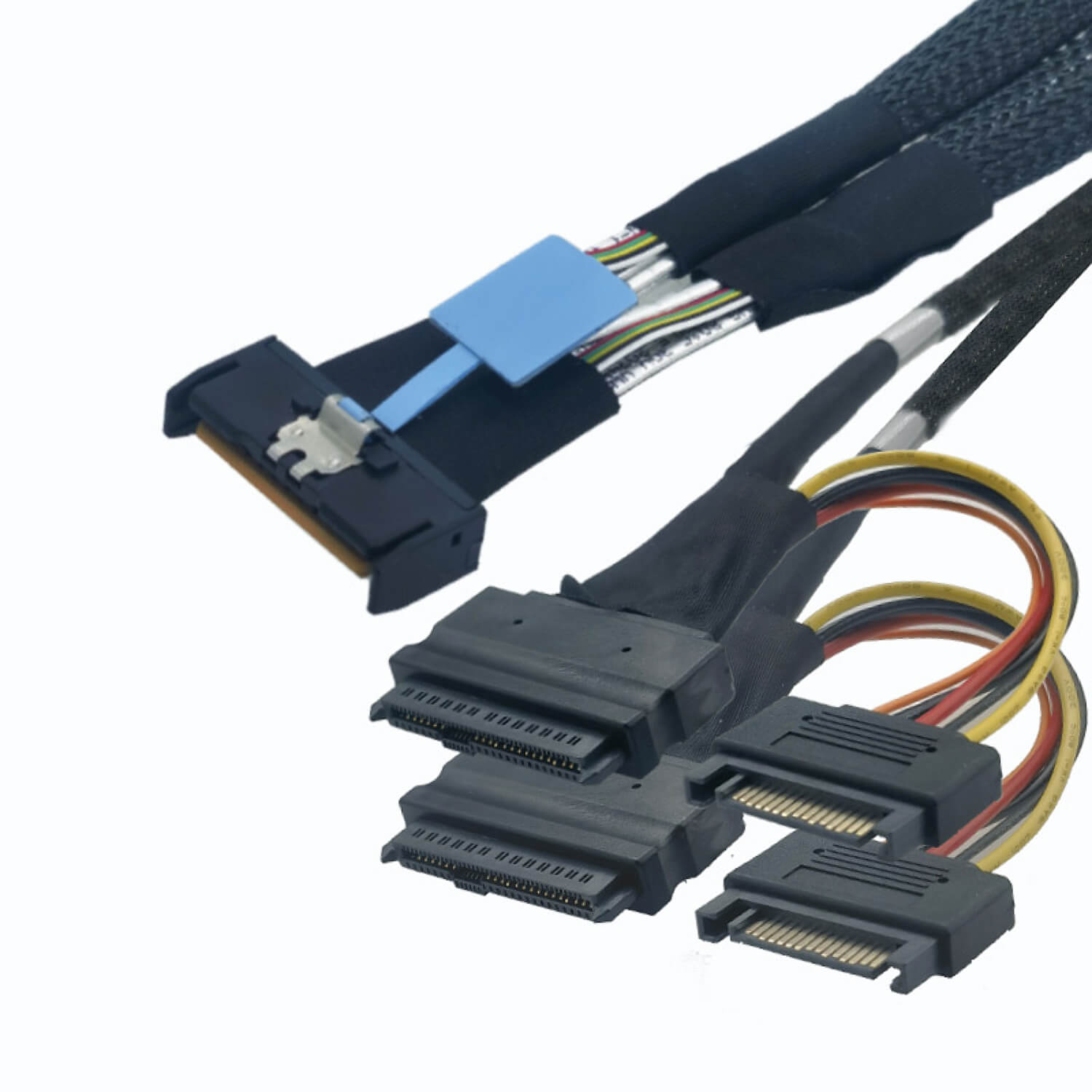

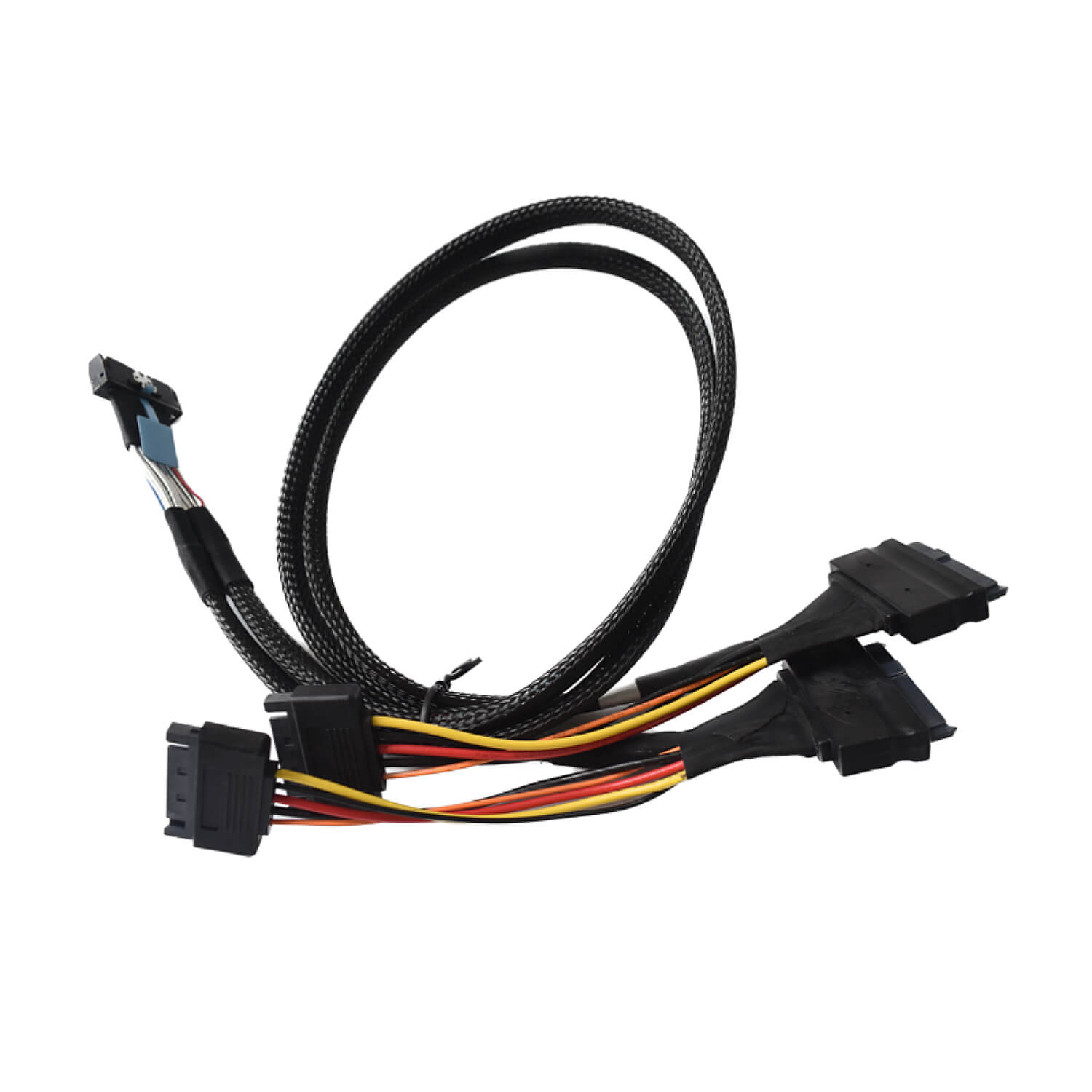

IPPON MCIO X8 to 2xSFF-8639 U.2 65cm Cable 32 GT/s 8 channels CST-MU702-G5

Name: IPPON MCIO X8 to 2xSFF-8639 U.2 65cm Cable
SKU: CST-MU702-G5
Availability: InStock

Specification

Remarks

Not refundable

Information

Mini Cool Edge IO is a flexible, rugged, and cost-effective connector and cable assembly solution that helps you flexibly design server and network equipment, reduce overall space, and extend the reach of high-data-rate signals.

This solution can be used for 24Gbps SAS4.0 signals and 32GT/s PCIe5.0 signals.

With 0.6mm pin pitch, the compact connector saves space in end equipment and supports cable-to-board and card-to-board applications.

MCIO X4 (38-pin), MCIO X8 (74-pin) are optional connectors for carrying differential and sideband signals now and in the future.

Product length: 0.5m/0.7m
Transmission rate: 32 GT/s (8 channels)
Interface 1: MCIO X8 straight
Interface 2: 2*SFF-8639 (U.2)
SCSI (SAS), PCIE 5.0 compliant
The rate supports PCI-e 5.0 32 GT/s standard and is backward compatible with PCI-e 4.0
