Description

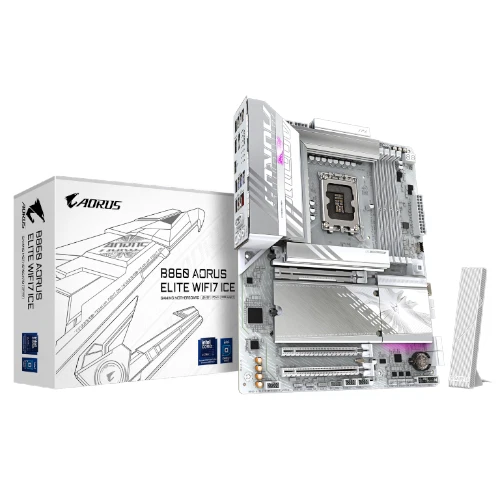

Gigabyte B860 A ELITE WIFI7 ICE ATX Motherboard – LGA 1851, DDR5, PCIe 5.0, Wi-Fi 7, USB4, 2.5GbE LAN

Overview

The Gigabyte B860 A ELITE WIFI7 ICE is a top-tier ATX motherboard designed for the latest Intel Core Ultra (Series 2), 14th Gen, and 13th Gen processors with LGA 1851 socket support. Built on the advanced Intel B860 chipset, this board delivers exceptional performance for high-end gaming, content creation, and multitasking. Featuring DDR5 memory support up to 9200 MHz (OC), PCIe 5.0 GPU compatibility, Wi-Fi 7, USB4 Type-C, and triple M.2 PCIe SSD slots, this motherboard is engineered to meet the demands of power users and future-proof desktop builds.

Key Features

CPU & Chipset Compatibility

• Supports Intel Core Ultra (Series 2), 14th Gen, and 13th Gen processors
• Built for the LGA 1851 socket
• Based on the Intel B860 chipset, offering platform stability and efficiency

Memory Support

• 4 x DDR5 DIMM slots, supporting up to 256GB of DDR5 system memory
• Supports native DDR5 speeds of 5600 MHz and overclocking up to 9200 MHz (OC)
• Dual-channel memory architecture for enhanced bandwidth and performance

Graphics & Expansion

• 1 x PCIe 5.0 x16 slot for high-performance discrete graphics cards
• 2 x PCIe 4.0 x1 slots for additional expansion
• Integrated graphics output via HDMI 2.1 and DisplayPort 2.1 (dependent on CPU)
• Multi-display support for creators and productivity tasks

Storage & M.2 Configuration

• 3 x M.2 PCIe slots for ultra-fast SSDs:
  • 1 x PCIe 5.0 x4 M.2 slot
  • 2 x PCIe 4.0 x4 M.2 slots
• 4 x SATA 6Gb/s connectors for traditional storage options
• Ideal for high-speed boot drives, game libraries, and heavy media workflows

Connectivity & Networking

• Integrated Wi-Fi 7 for next-generation wireless connectivity with ultra-low latency
• 2.5GbE LAN port for high-speed, stable wired networking
• Rear I/O includes:
  • USB4 Type-C for data, display, and fast charging
  • USB 3.2 Gen2, Gen1, and legacy USB 2.0 ports
• Realtek 8-channel HD Audio codec with high-end capacitors and audio shielding

Cooling & Durability

• Smart Fan 6 with multiple temperature sensors and hybrid fan headers
• Reinforced PCIe slot and durable PCB with advanced thermal design
• Q-Flash Plus for BIOS updates without CPU, RAM, or GPU installed
• Integrated I/O shield for simplified installation

Form Factor

• ATX (30.5 x 24.4 cm) – standard full-sized motherboard
• Compatible with most mid- and full-tower PC cases
• Provides excellent layout for airflow, component spacing, and expandability

Why Choose the Gigabyte B860 A ELITE WIFI7 ICE?

• Optimized for Intel LGA 1851 CPUs including Core Ultra and 14th Gen
• Delivers high-speed DDR5 memory support up to 9200 MHz (OC)
• Features PCIe 5.0 GPU slot and triple M.2 Gen4/Gen5 SSD slots
• Advanced networking with Wi-Fi 7, 2.5G LAN, and USB4 Type-C
• Built with Gigabyte Ultra Durable components for long-lasting performance and reliability
