• 4711377260794

model

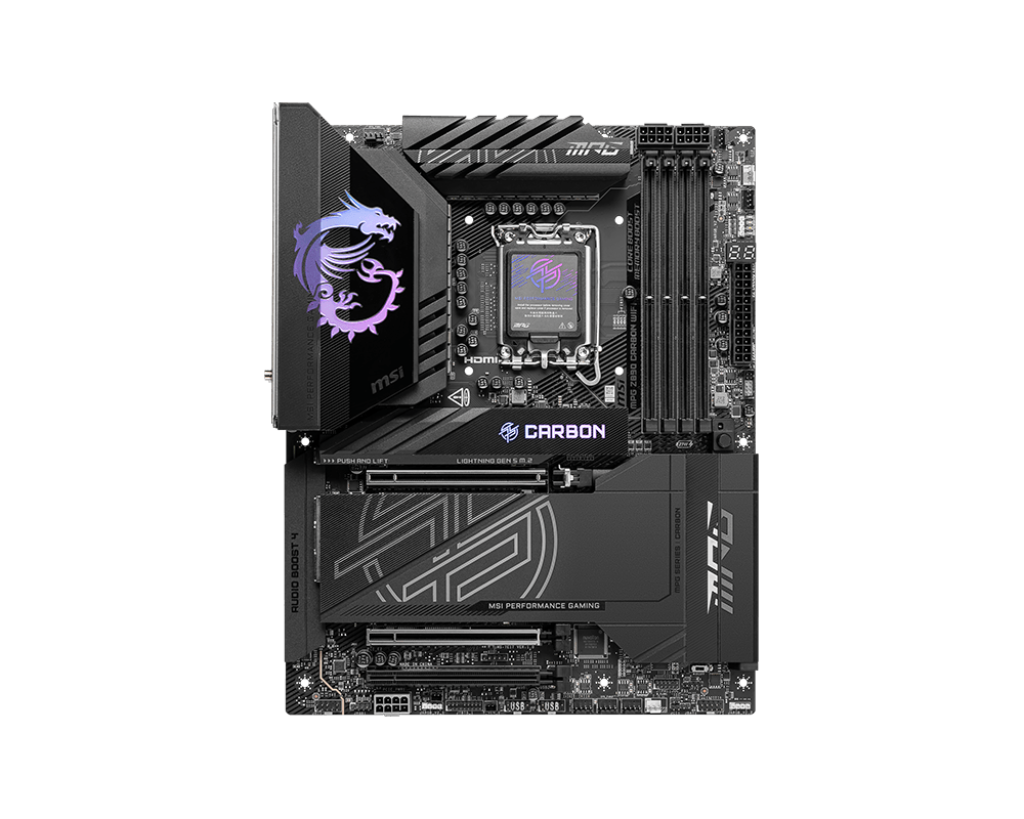

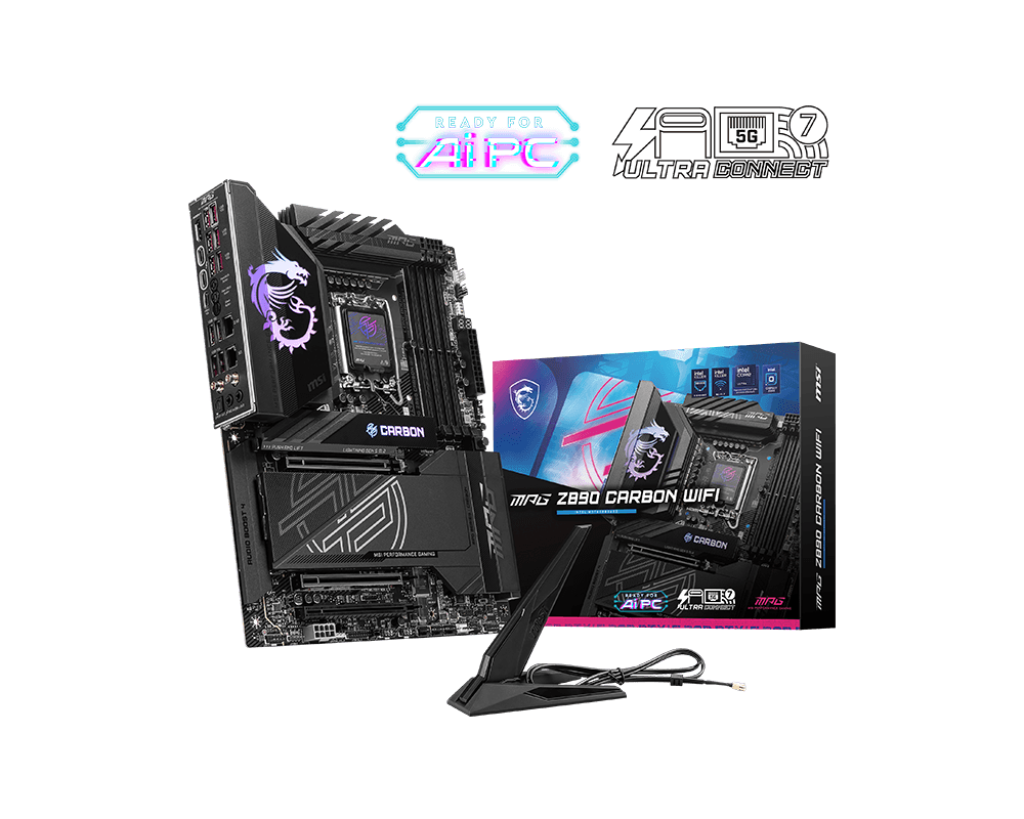

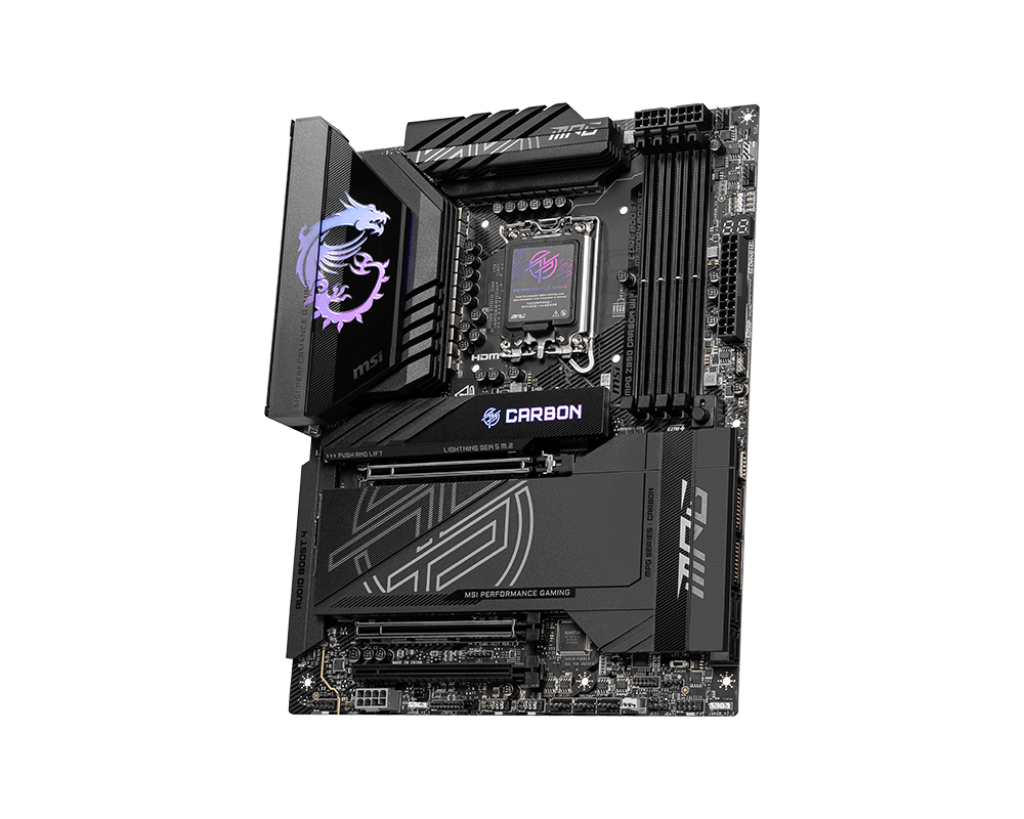

• MPG Z890 CARBON WIFI

Processor support

• Intel® Core™ Ultrav
• chassisLGA 1851

Chipset

• ChipsetZ890

Memory

• Memory supportDual Channel DDR5-9200MHz OC
• Maximum memory256GB DDR5
• Free slots4

Connections

• HDMI0
• D-SUB0
• PCI-E X163
• PCI-E X10
• TPM-HEADER1

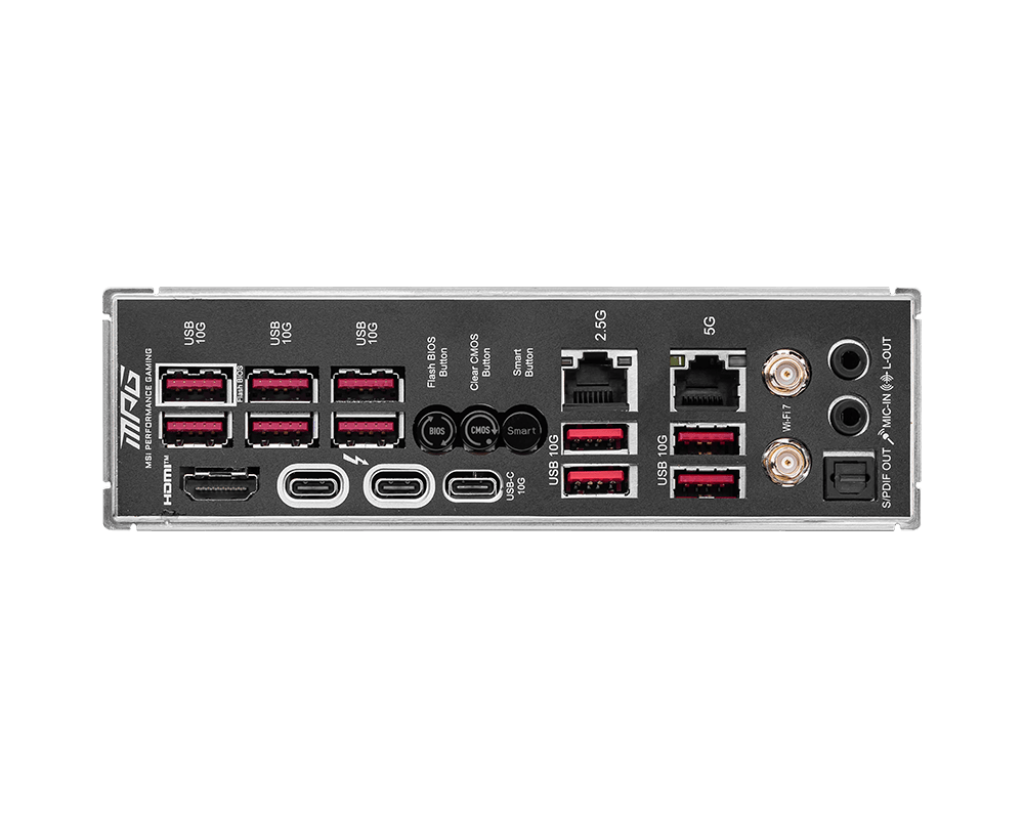

• USB4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 10x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
• Thunderbolt2x Thunderbolt 4 ports (Rear)

Video connections

• HDMI 2.1Support HDMI™ 2.1, maximum resolution of 4K 120Hz
• DISPLAY PORT2x Type-C DisplayPort
• Thunderbolt Type-C DisplayPort1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort

Expansion slots

• PCIe 5.0 x162
• PCIe 4.0 x161
• PCIe 3.0 x10

• m.25
• SATA III4

Disk Management

• RAID supportv

communication

• LAN“1x Intel® Killer™ E5000B 5G LAN 1x Intel® I226V 2.5G LAN”
• wifi + BTWi-Fi 7 BT5.3

Audio

• HD 7.1v

video

• AMD® CrossFire support0

Special

• CoolingBOOST 5

Connections on the board

• Internal IO1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrus
