• 4711377347587

model

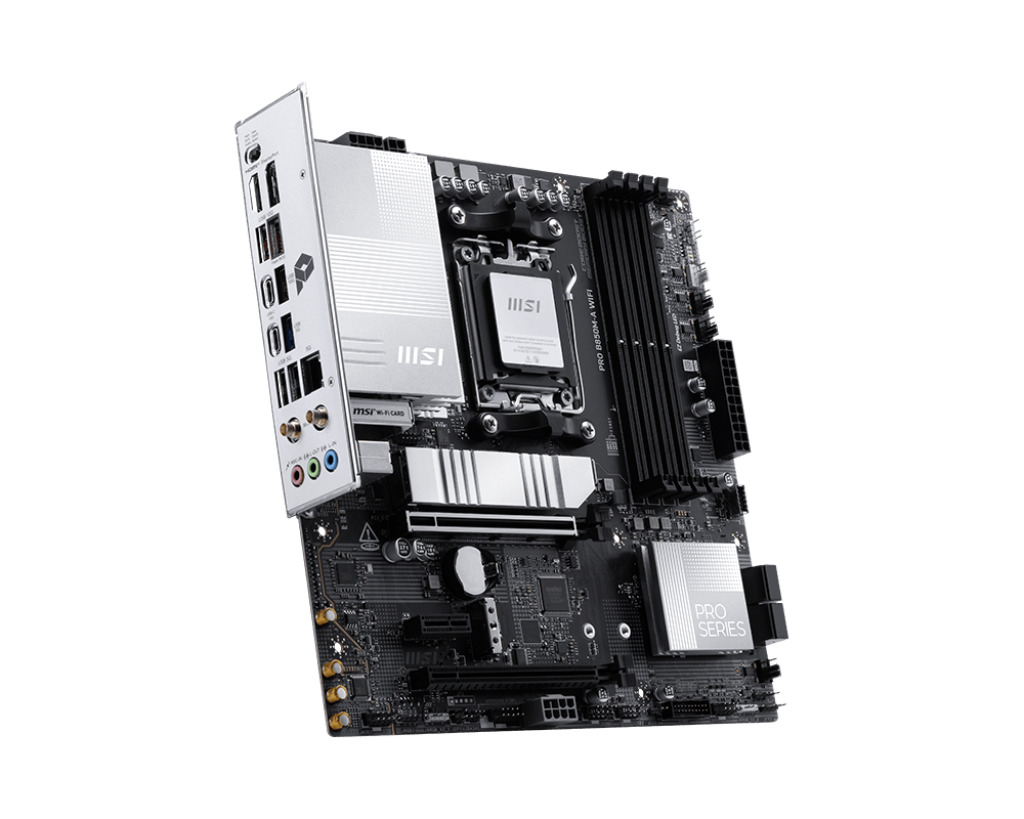

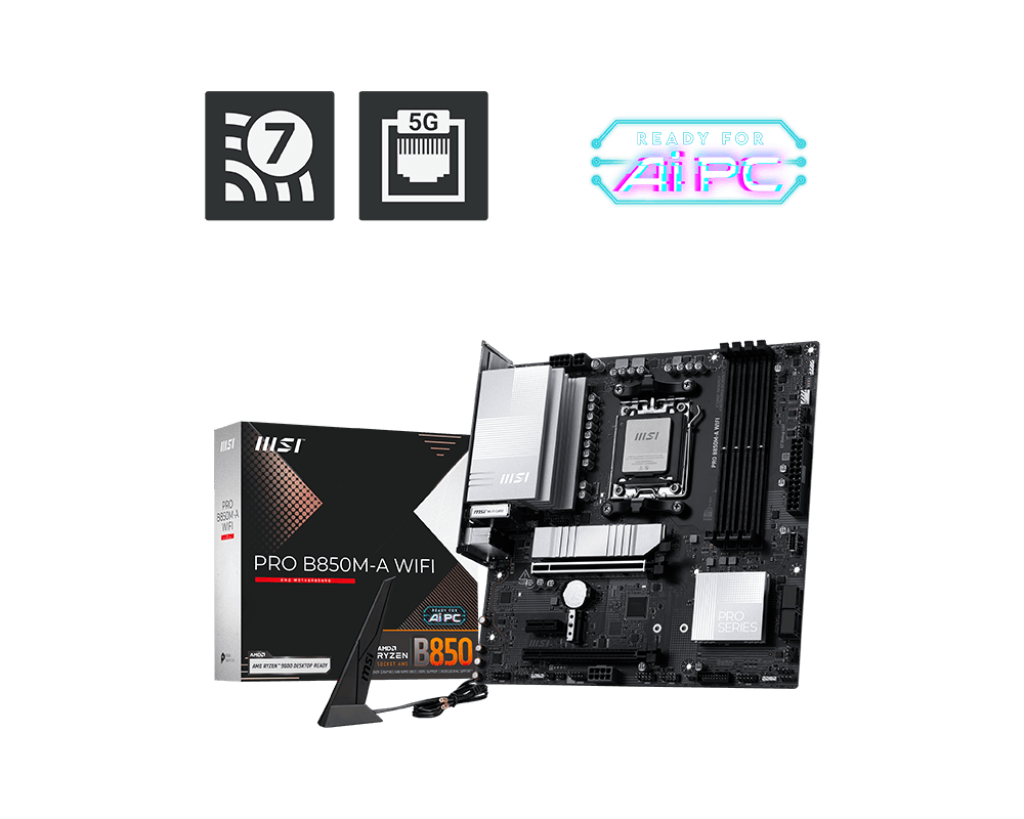

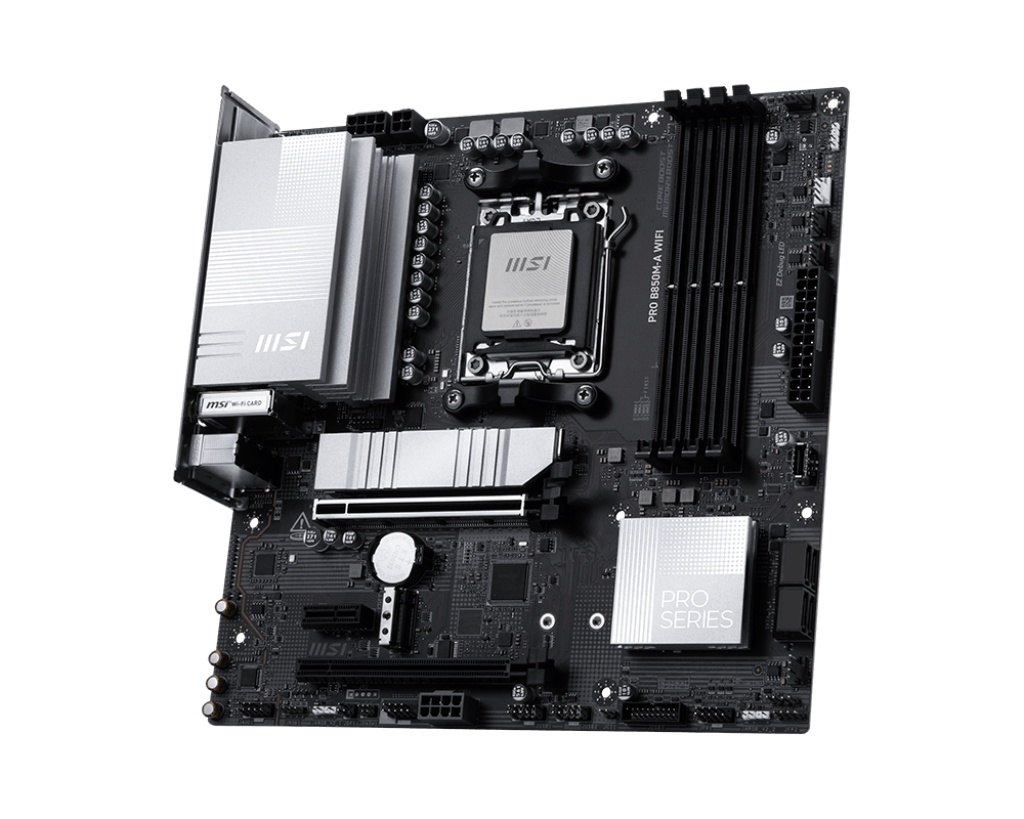

• PRO B850M-A WIFI

Processor support

• AMD Ryzen™Ryzen™ 9000/ 8000/ 7000
• chassisAM5

Chipset

• ChipsetAMD B850

Memory

• Memory supportDual Channel DDR5-8200MHz OC
• Maximum memory256GB DDR5
• Free slots4

Connections

• HDMI0
• HDMI 2.11
• DISPLAY PORT1x DisplayPort
• D-SUB0
• PCI-E X162
• PCI-E X1Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• TPM-HEADER1
• USB4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
• IO1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller co
• LED FEATURE4x EZ Debug LED 1x EZ Memory Detection LED

• PCIe 5.0 x16V
• PCIe 4.0 x16V
• PCIe 3.0 x1V

storage

• m.22
• sata III4

Disk Management

• RAID supportv

communication

• LANRealtek® 8126VB 5G LAN
• wifi + BTWi-Fi 7 Solution, Bluetooth 5.4

Audio

• HD 7.18-Channel (7.1) HD Audio with Audio Boost
