Description

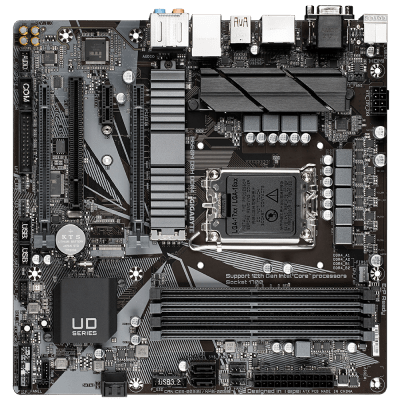

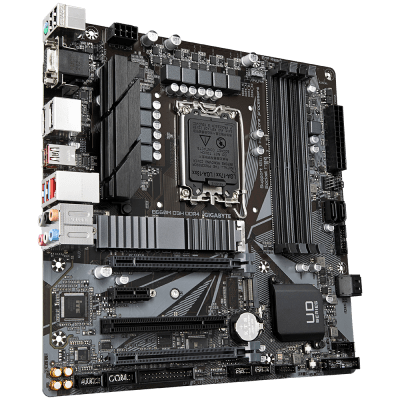

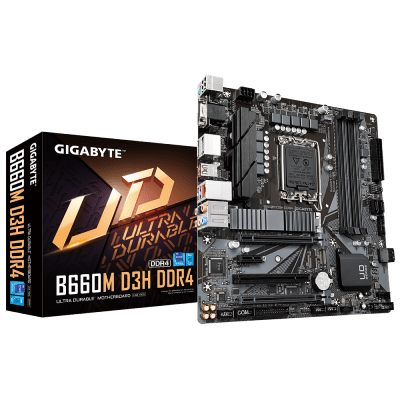

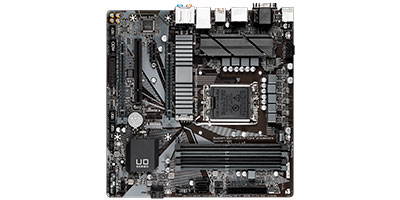

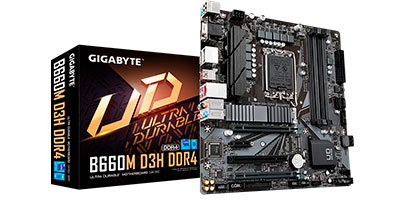

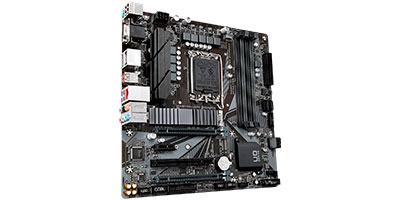

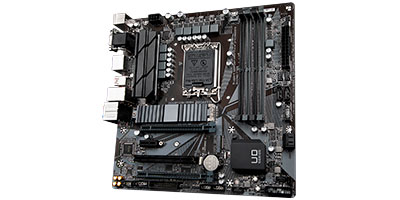

NEW Gigabyte B660M D3H DDR4 Motherboard CPU SOCKET LGA1700 Intel VGA 2.5GbE LAN
Intel® B660 Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, Rear USB 3.2 Gen 2 Type-C®, RGB FUSION 2.0, Q-Flash Plus. Supports 12th Gen Intel® Core™ Series Processors. Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. 8+1+1 Phases Hybrid Digital VRM with MOS Heatsink. Fast 2.5 GbE LAN with Bandwidth Management. Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard with Thermal Guard. Rear USB 3.2 Gen2 Type-C® for Fast and Versatile Connections. High Quality Audio Capacitors and Audio Noise Guard. RGB FUSION 2.0 supports Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
Specification
Chipset
Intel® B660 Express Chipset
Socket
1700
MB Form Factor
Micro ATX
Memory Type
DDR4
DDR4 Slots
4
Storage Interface
SATA3
\ M.2 PCIe
SATA3 Ports
4
M.2 PCIe Connectors
2
RAID
0,1,5,10
MB Expansion Slots
Trusted Platform Module (TPM)
PCI-E x16
1
PCI-E x16 (x4) Slot
1
PCI-E x1
1
PCI
1
Thunderbolt
2 x Thunderbolt™ add-in card connectors

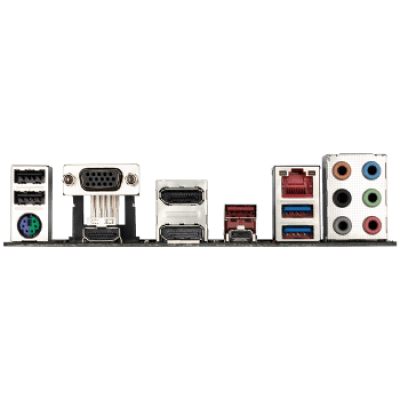

USB2.0 Ports
6
USB3.2 Ports
5
USB Type-C
1
Front USB Connector
USB 2.0
\ USB 3.2
Graphics O.B
Integrated Graphics Processor-Intel
Graphics Interface
VGA
\ HDMI
\ DP
O.B Audio
6 port
LAN
Intel 2.5GbE
Network Connections
2.5 GIGABIT LAN
COM Port
Optional
Package
Retail
Remarks
1 x parallel port header
Information
| Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading. 6+2+1 Phases Low RDS(on) MOSFETs Solid capacitors to improve transient response and minimize oscillation 8-pin Solid Pin CPU Power Connector |
 |
 |
GIGABYTE Ultra-Efficient M.2 Thermal Guard With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. |
| 2X Faster than ever Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1 GbE networking, perfectly designed for gamers with ultimate online gaming experience. Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet |
 |
 |
RGB FUSION 2.0 B660 motherboards feature RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC. |
