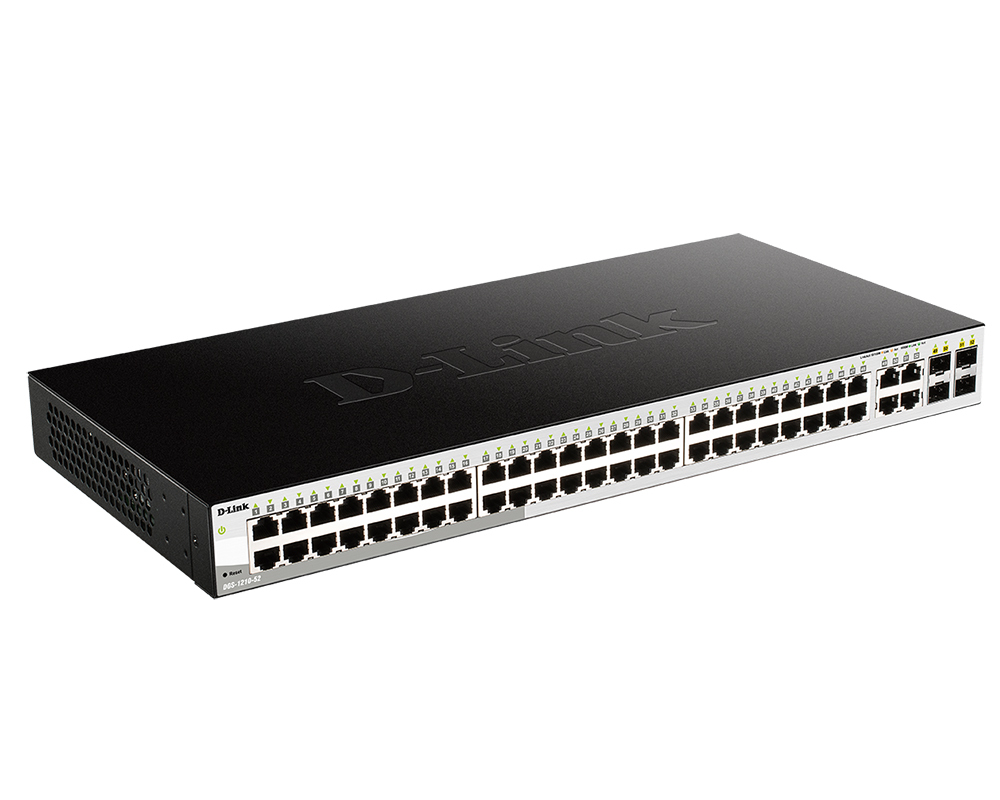

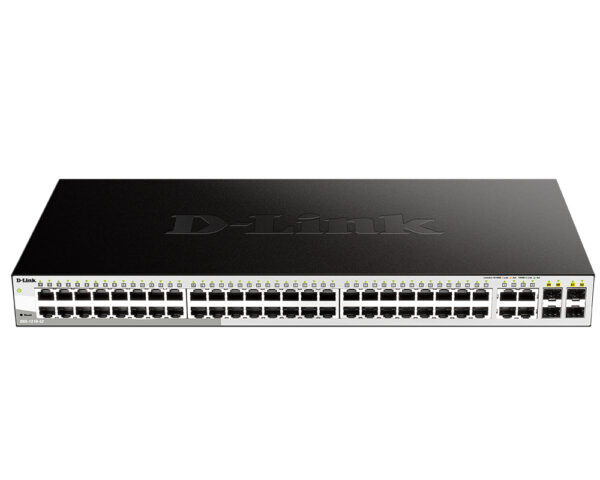

D-Link DGS-1210-52 – Network Switch, Managed, L2, Gigabit Ethernet (10/100/1000)

Description

Brand: D-Link DGS-1210-52
Warranty: Life Time Warranty
Product code: DGS-1210-52/FL1A

Data transmission
MAC address table: 16000 entries
Maximum data transfer rate: 1 Gbit/s
Packet buffer memory: 1 MB
Supported data transfer rates: 10/100/1000Mbps
Switching capacity: 104 Gbit/s
Design
Certification: FCC, CE, VCCI, ICES-003
Form factor: 1U
LED indicators:
Number of fans: 2 fan(s)
Product colour: Black
Rack mounting:
Safety: cUL, CE LVD
Logistics data
Harmonized System (HS) code: 85176990
Management features
Quality of Service (QoS) support:
Switch layer: L2
Switch type: Managed
Network
Auto MDI/MDI-X:
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10GBASE-T
Flow control support:
Full duplex:
Link aggregation:
Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Port mirroring:
Spanning tree protocol:
Operational conditions
Operating relative humidity (H-H): 0 – 95%
Operating temperature (T-T): -5 – 50 ?C
Storage relative humidity (H-H): 0 – 95%
Storage temperature (T-T): -20 – 70 ?C
Other features
Packet transfer speed: 77.4 Mpps
Power LED:
Packaging data
Package depth: 552 mm
Package height: 98 mm
Package weight: 4.5 kg
Package width: 354 mm
Performance
Flash memory: 16 MB
Mean time between failures (MTBF): 201.517 h
Noise level: 47.1 dB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48

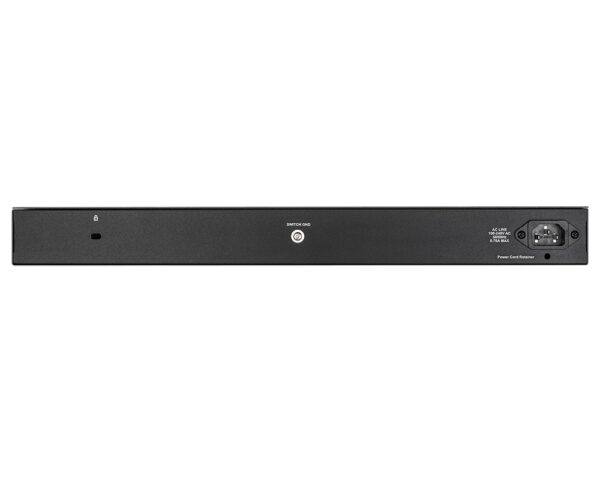

Power connector: DC-in jack
SFP module slots quantity: 4
SFP/SFP+ slots quantity: 4
Power
AC input frequency: 50 – 60 Hz
AC input voltage: 100 – 240 V
Power consumption (typical): 43.5 W
Protocols
Supported network protocols: IPv4 / IPv6
Depth: 250 mm
Height: 44 mm
Weight: 4.1 kg
Width: 440 mm
