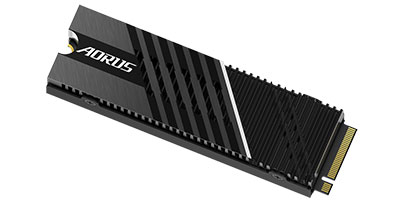

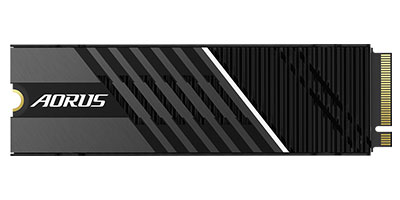

GIGABYTE AORUS SSD M.2 PCIE NVME GEN4 7000S 1.0TB GP-AG70S1TB

The 2nd generation PCIe 4.0 controller PS5018-E18 deliver sequential read/write up to 7GB/s with 3D TLC NAND Flash. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4.

Specification

Disc Form Factor

M.2 2280

SSD Capacity

800G-1T

Interface

M.2 PCI-E X4 NVMe

Controller

Phison E18

Storage Memory

TLC

\ 3D NAND

Read Speed

Up to 7000MB/s

Write Speed

Up to 5500MB/s

Features

TRIM

\ DATA Encryption

\ S.M.A.R.T

\ Temperature proof

Package

Retail

Remarks

+ PCIe 4.0×4, NVMe 1.4 Interface + DDR4 DRAM cache + 8 CH with 32 CEs + Phison 4th Gen LDPC & RAID ECC + Support AES-256 Encryption + Thermal Throttle Protection

Information

2nd Generation PCIe 4.0×4 Controller The 2nd generation PCIe 4.0 controller PS5018-E18 deliver sequential read/write up to 7GB/s with 3D TLC NAND Flash. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4.
	Xtreme Storage Performance With 2nd generation PCIe 4.0 controller E18, AORUS Gen4 7000s SSD delivers blazing speeds: up to 7,000 MB/s for sequential read, and up to 5,500MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.
Efficient Heat Spreader Design Compared with regular heat spreader, the new high efficient heat spreader improves thermal dissipation to extend 46% more time running at high speed. In addition, compared to the one without heatsink, AORUS 7000s Gen4 SSD running 5 times longer at 7GB/s. Enjoy the smoother & upgraded storage performance.
