Description

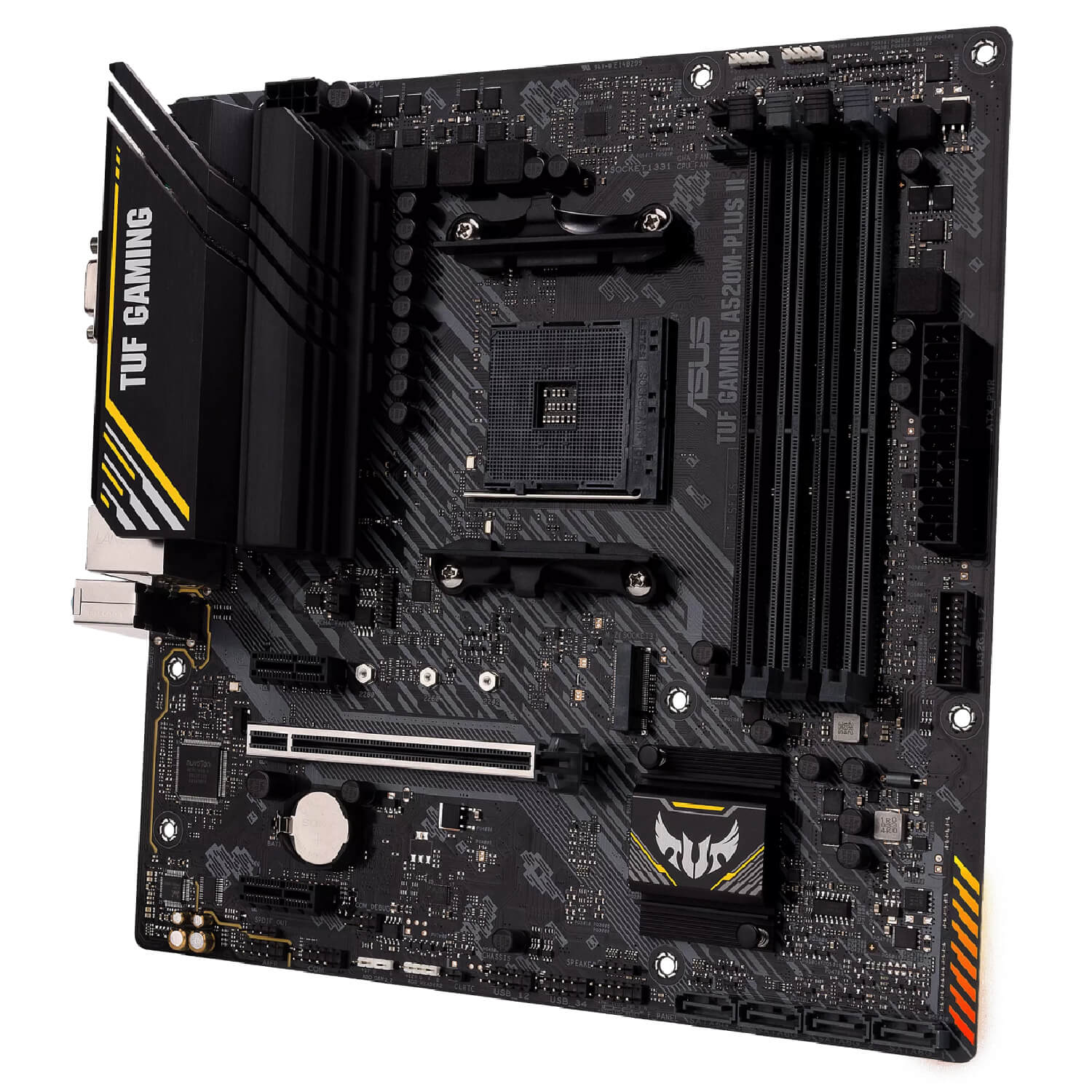

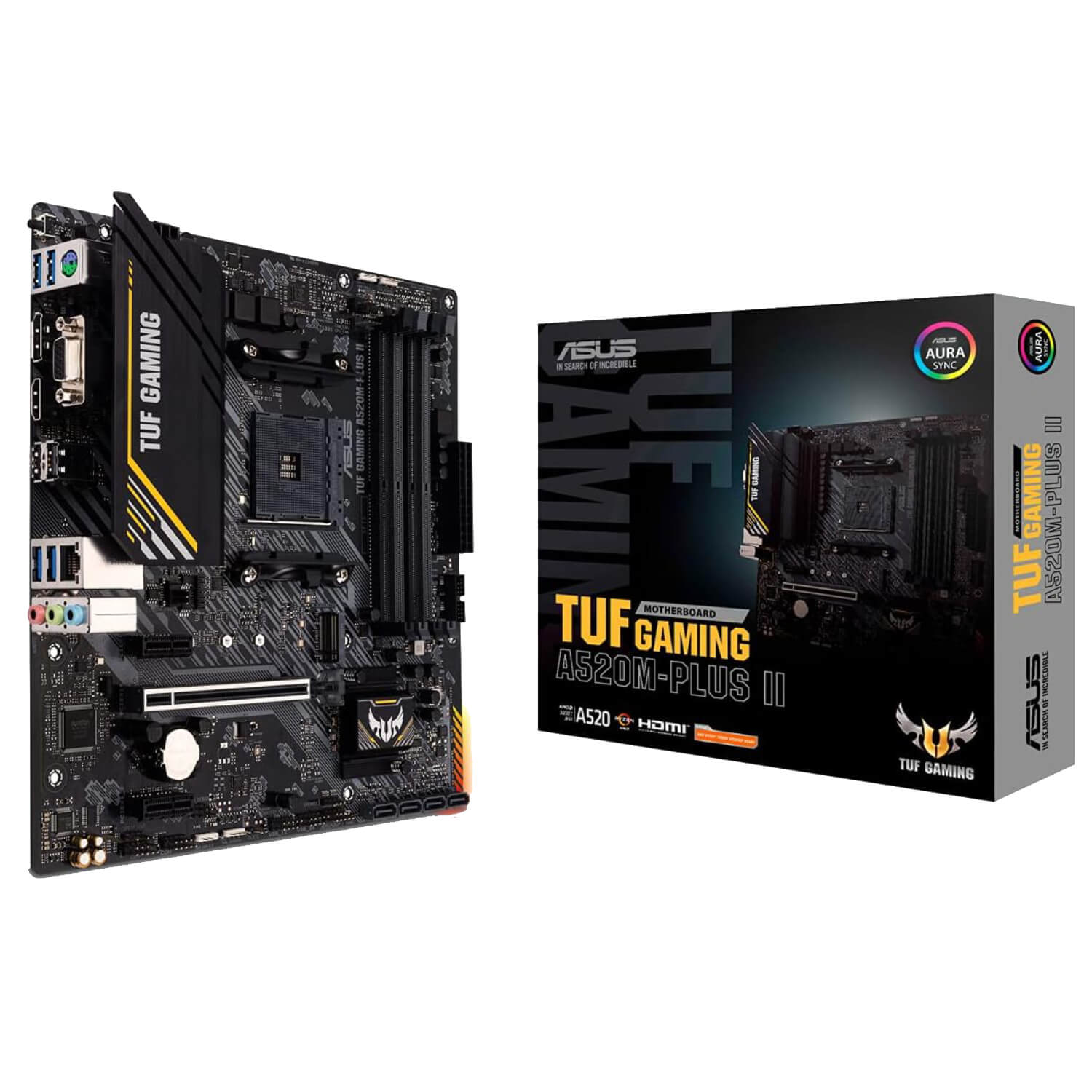

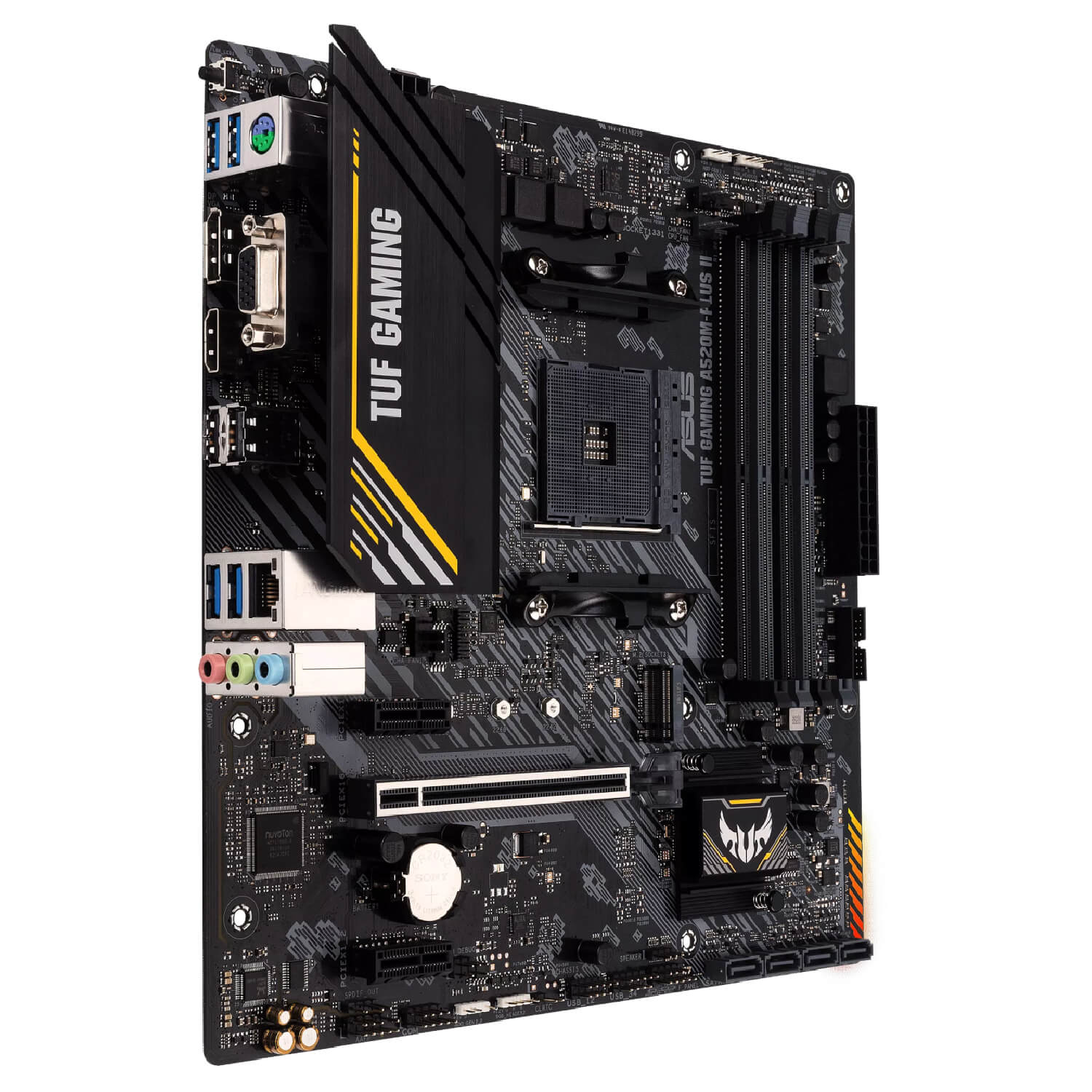

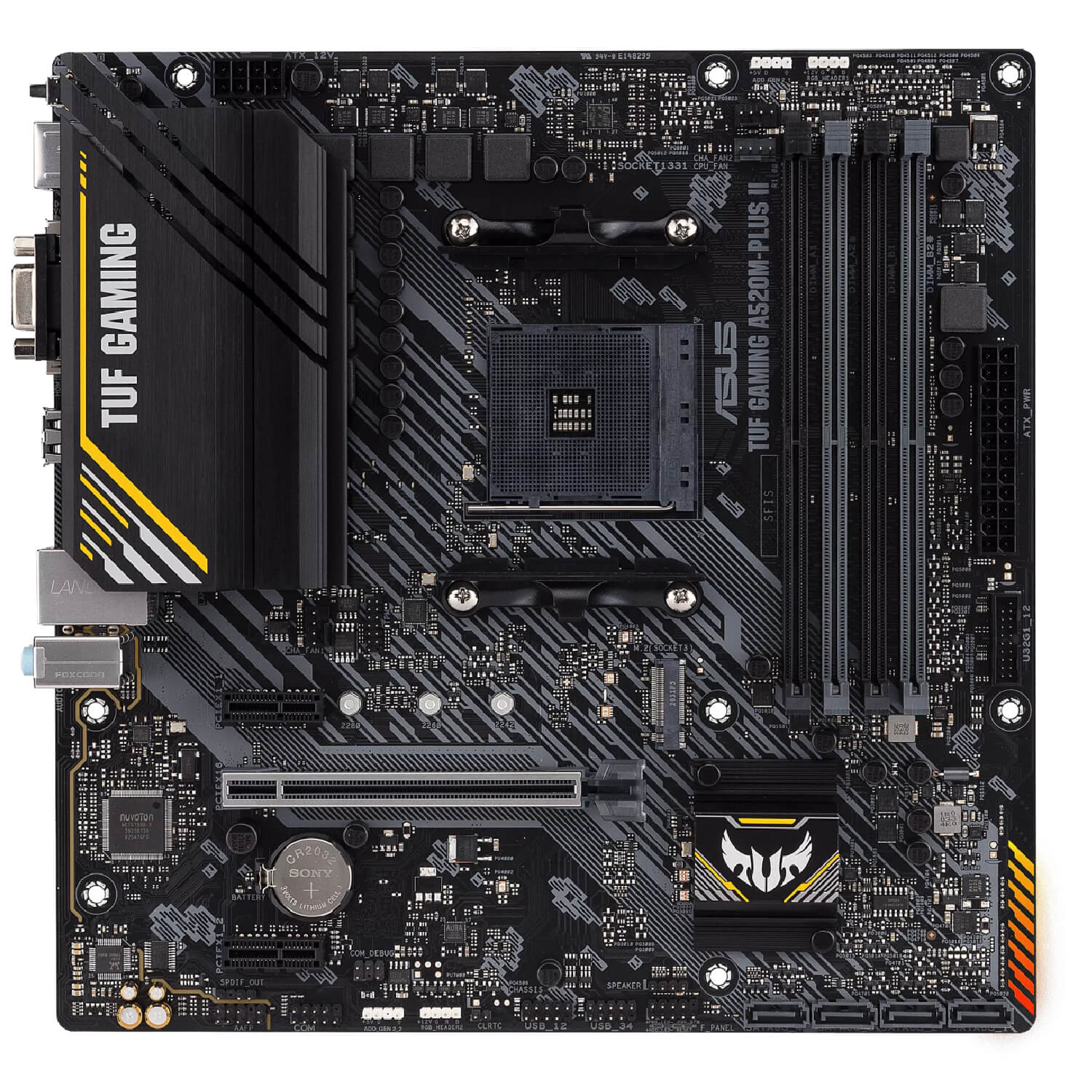

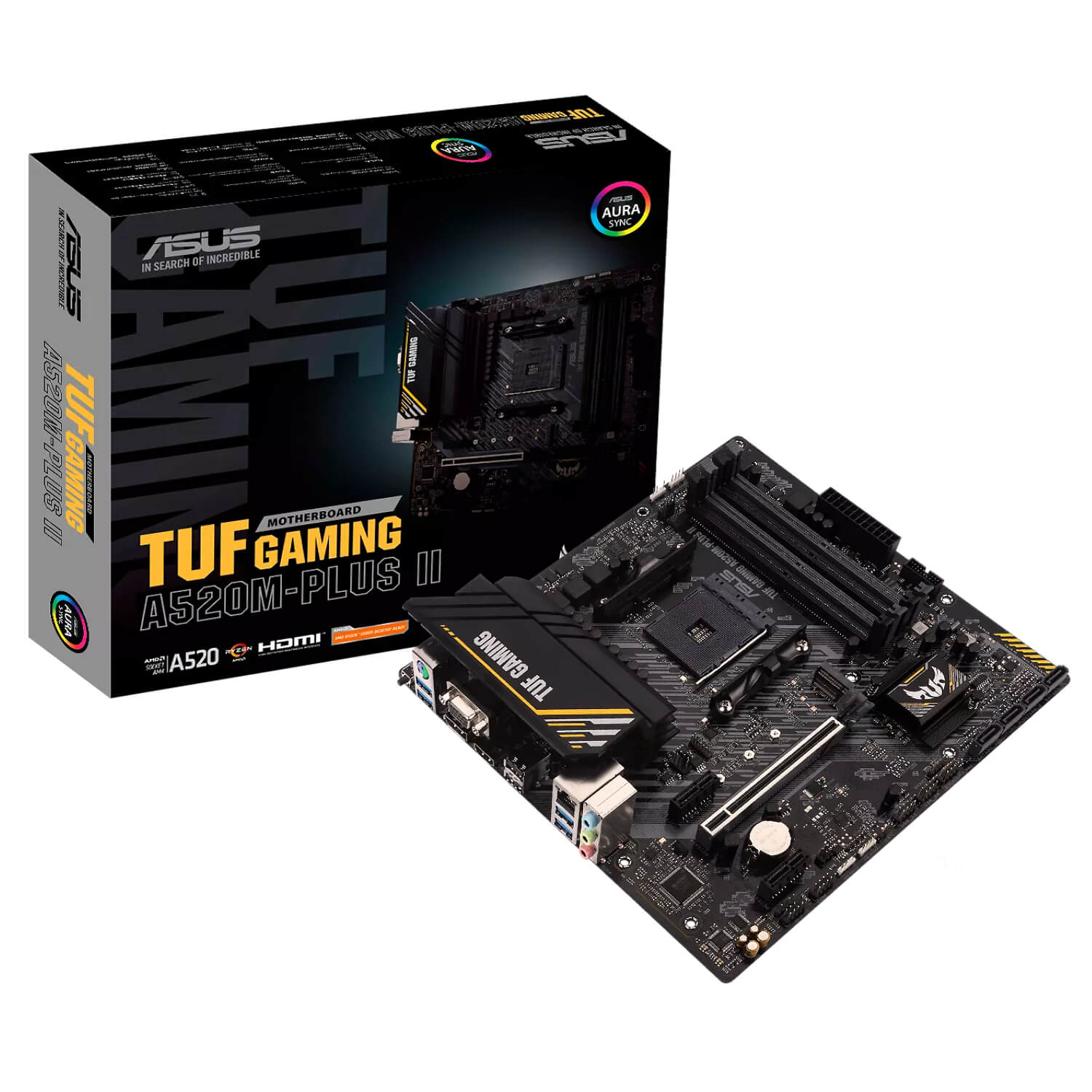

ASUS TUF Gaming A520M-Plus II AM4 Micro-ATX Motherboard DDR4 90MB17G0-M0EAY0
Asus TUF GAMING A520M-PLUS II is a micro ATX AMD A520 motherboard for AM4 desktop builds, with Ryzen 5000 / 4000 G-Series / 3000 Series support, DDR4, M.2 32Gbps, HDMI, DisplayPort, D-Sub, USB 3.2 Gen 1, SATA 6Gbps, TUF LANGuard and Aura Sync RGB headers. 90MB17G0-M0EAY0
Specification
Chipset
Socket
Memory Type
MB Form Factor
Network Connections
Graphics Interface
USB Connector
Audio O.B
RAID
DDR4 Slots
PCI-E x16
PCI-E x1
USB 3.2
USB 2.0
Storage Interface
MB Expansion Slots
M.2 PCIe Connectors
SATA3 Ports
COM Port
Information
Asus TUF GAMING A520M-PLUS II
A micro ATX AMD A520 motherboard for practical AM4 desktop and gaming builds
Designed with Ryzen processor support, DDR4 memory, M.2 storage, display outputs and TUF protection features
AMD AM4 Platform
The AM4 socket supports Ryzen 5000 Series, 4000 G-Series and 3000 Series desktop processors
The AMD A520 chipset provides a practical base for everyday desktop and gaming systems
The micro ATX form factor fits a wide range of compatible PC cases
Storage and Connectivity
The M.2 slot supports up to 2280 drives and up to 32Gbps transfer speed via PCIe 3.0 x4 bandwidth
Four SATA 6Gbps ports are available for additional storage drives
USB 3.2 Gen 1 ports support compatible peripherals and front-panel case connections
Display Output Options
Rear display outputs include DisplayPort, HDMI and D-Sub
This gives flexible monitor connection options when using a compatible processor with integrated graphics
The rear I/O also includes USB ports, Realtek 1Gb LAN and audio jacks
Cooling Control
Large VRM and PCH heatsinks help support stable operation
Fan Xpert 2+ provides configurable fan control through ASUS software
Fan settings can also be managed through the ASUS UEFI BIOS
TUF Protection
SafeSlot Core+ helps reinforce the PCIe x16 slot for graphics card installation
TUF LANGuard and ESD Guards help protect network and I/O connections
DRAM overvoltage protection and a stainless-steel back I/O panel add extra durability-focused protection
Easy Setup Features
BIOS FlashBack allows safer BIOS updates using a USB drive and the dedicated button
Armoury Crate provides access to supported system settings and Aura Sync lighting control
Aura RGB and Addressable Gen 2 headers allow compatible RGB lighting to be synchronized with the build
Network and Audio
Realtek 1Gb LAN supports wired network connectivity
TurboLAN software can help manage network traffic priority for online use
Audio shielding, premium audio capacitors and dedicated audio PCB layers support onboard sound quality
