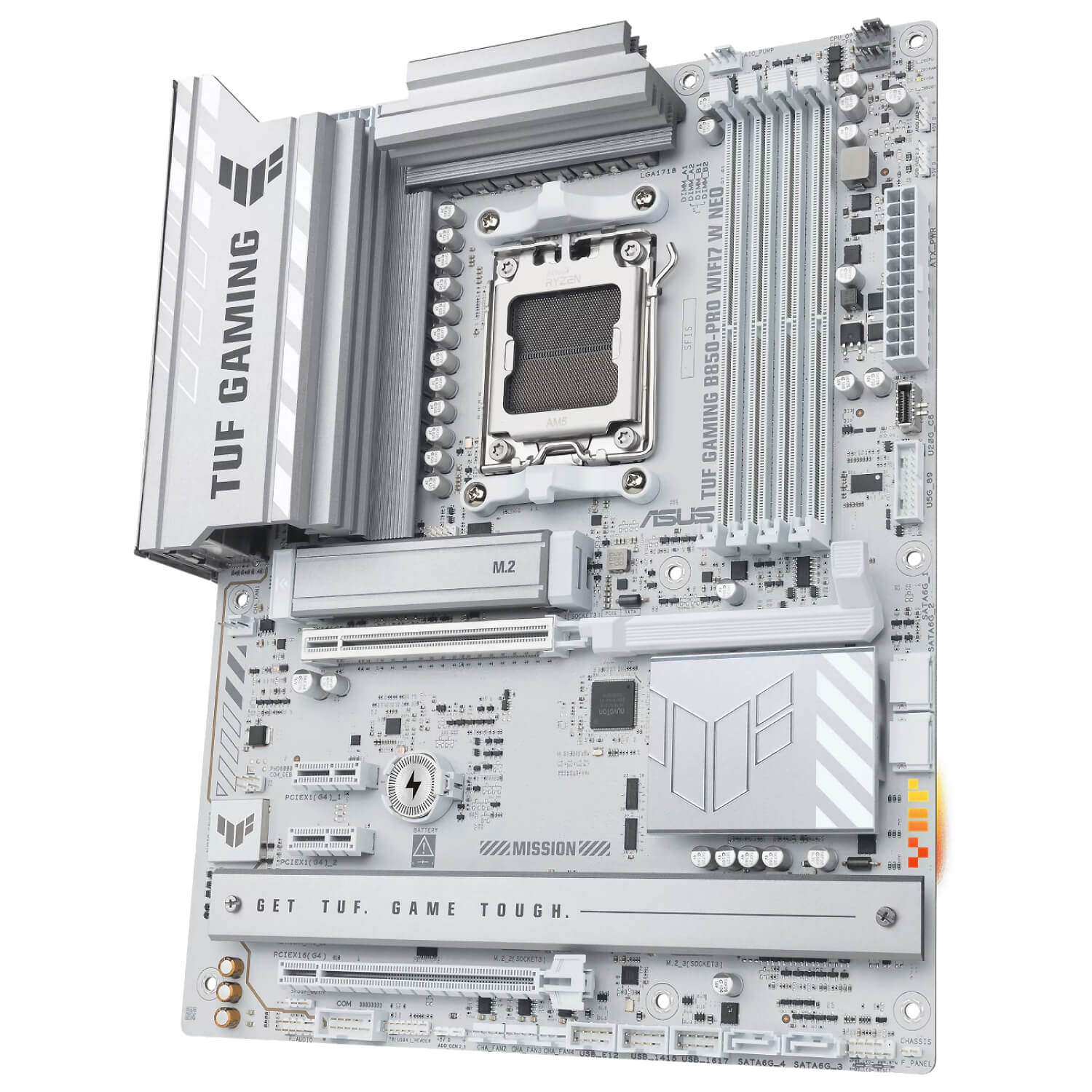

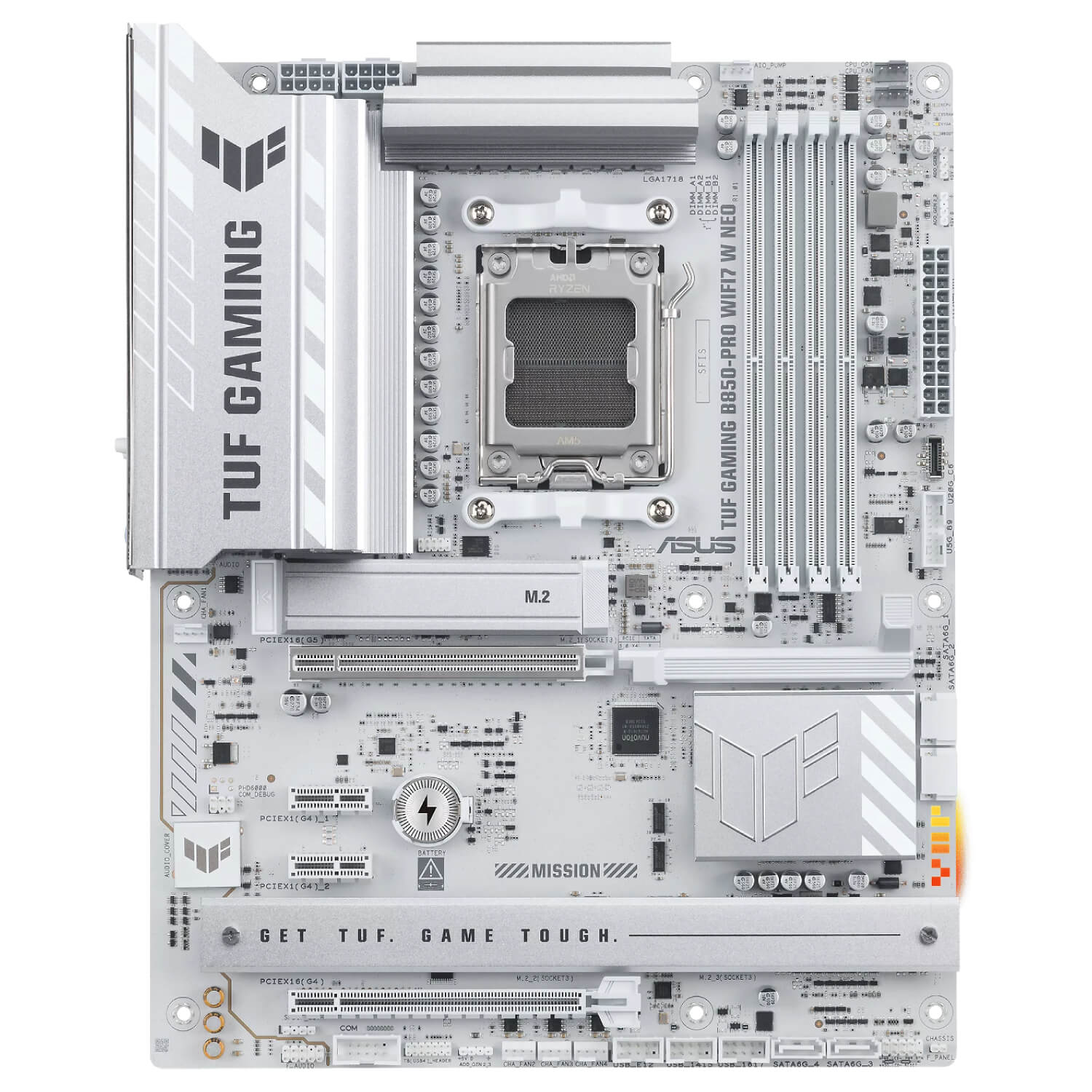

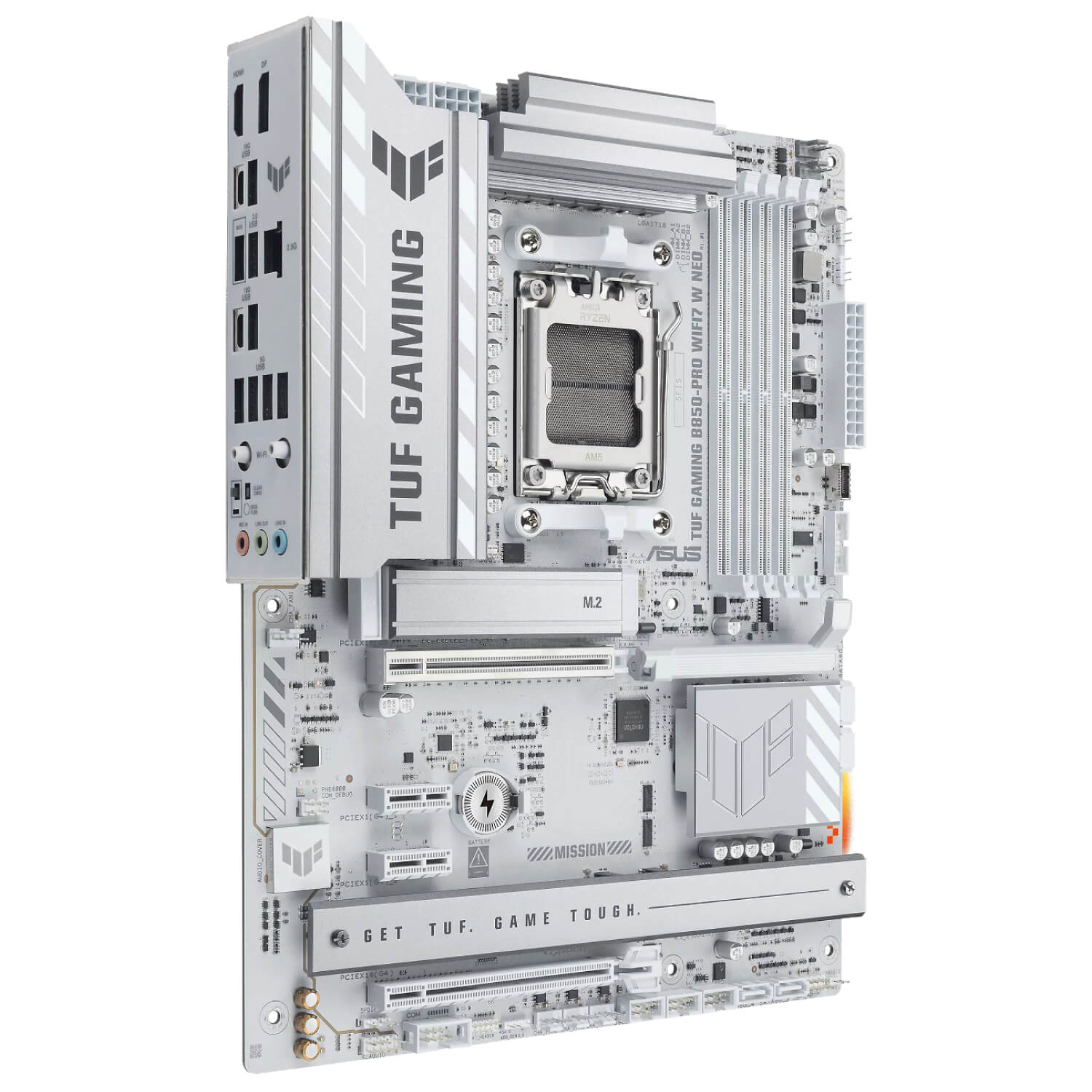

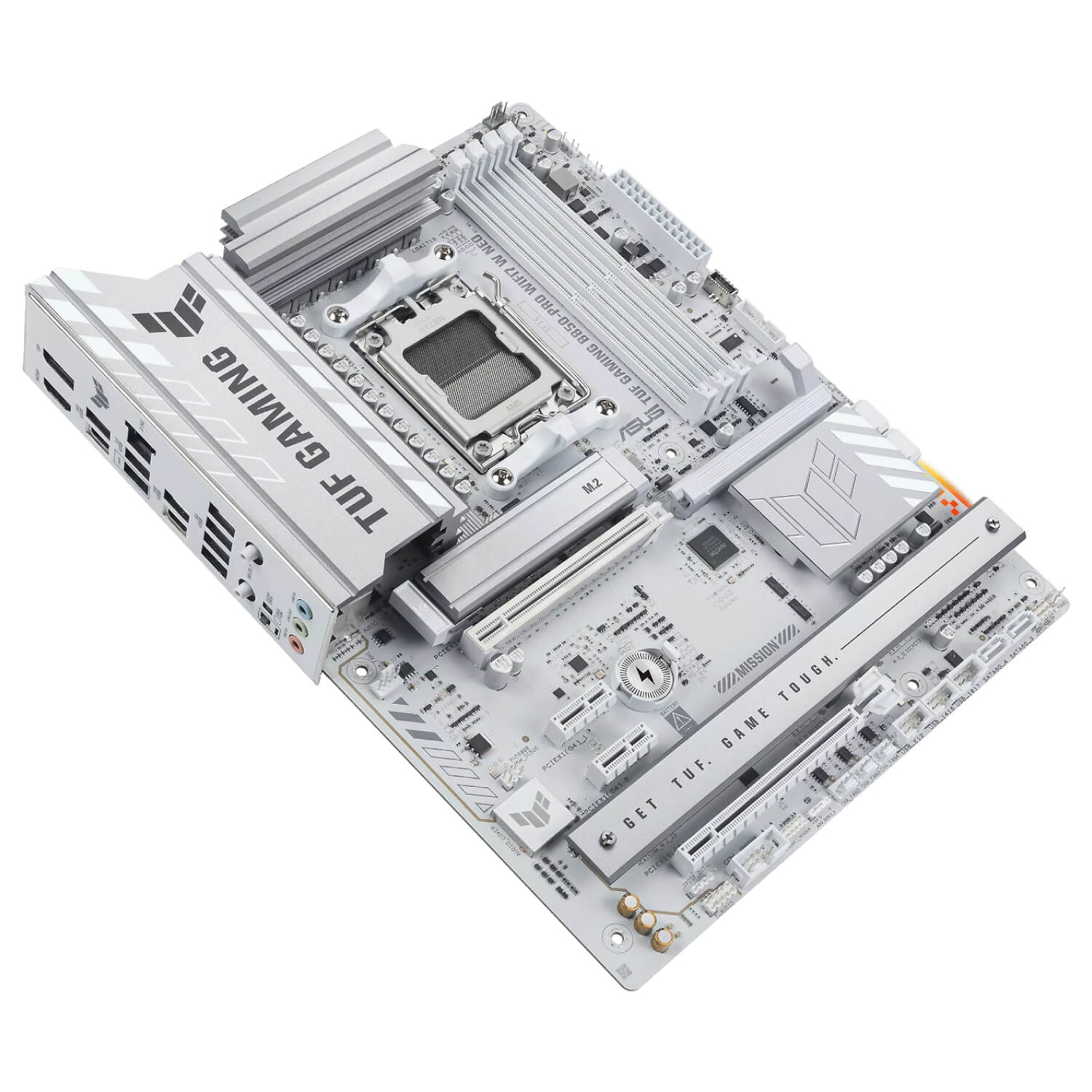

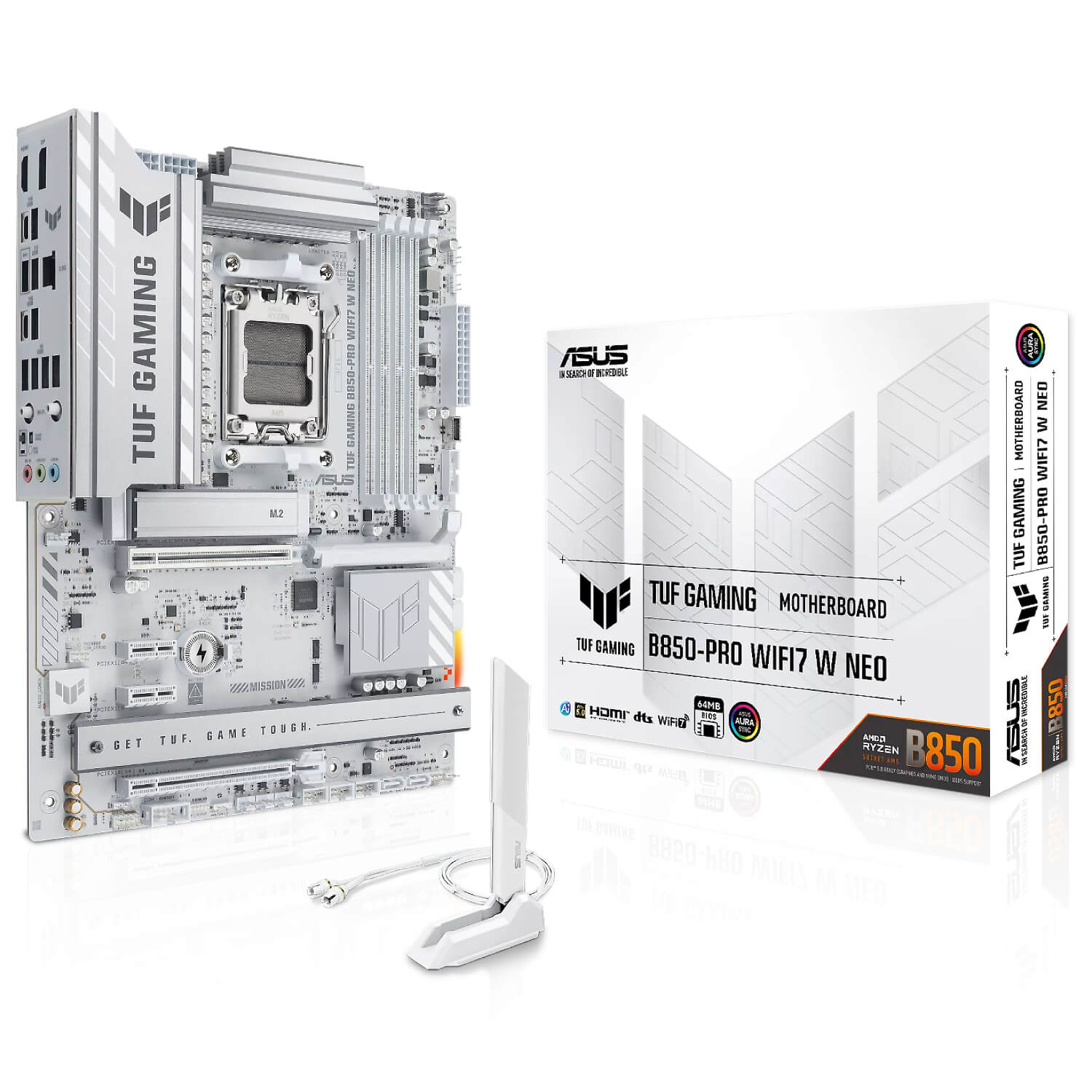

ASUS TUF GAMING B850-PRO WIFI7 W NEO

An ATX motherboard for modern AMD AM5 gaming desktop systems

Built with the AMD B850 platform for compatible AMD Ryzen desktop processors

AMD AM5 Platform

Supports AMD Socket AM5

Designed for AMD Ryzen desktop processors

The white TUF Gaming design fits clean and modern PC builds

Premium Power Design

14+2+1 power stages are rated for up to 80A each

ProCool power connectors help provide a reliable PSU connection

Digi+ VRM Control supports real-time voltage management

An eight-layer server-grade PCB helps support stable PCIe 5.0 and DDR5 signaling

DDR5 Memory Support

Four DIMM slots support DDR5 memory

Dual-channel architecture is designed for modern desktop performance

ASUS AEMP helps apply optimized memory profiles for compatible modules

PCIe 5.0 Expansion

A PCIe 5.0 x16 SafeSlot is available for compatible graphics cards

One PCIe 4.0 x16 slot supports up to x4 mode

Two PCIe 4.0 x1 slots are available for additional expansion cards

M.2 PCIe 5.0 Support

The board includes three M.2 slots for NVMe SSD storage

One M.2 slot supports PCIe 5.0 x4 with speeds of up to 128Gbps

Two additional M.2 slots support PCIe 4.0 x4

All M.2 slots support NVMe RAID configurations

Cooling Design

Enlarged VRM heatsinks help support stable operation under load

Two M.2 heatsinks help cool installed NVMe SSDs

Fan headers and an AIO pump header help support flexible cooling setups

WiFi 7 and 2.5Gb Ethernet

Built-in WiFi 7 provides fast wireless networking for compatible routers and devices

ASUS WiFi Q-Antenna helps simplify antenna installation and positioning

Realtek 2.5Gb Ethernet provides a fast wired network option

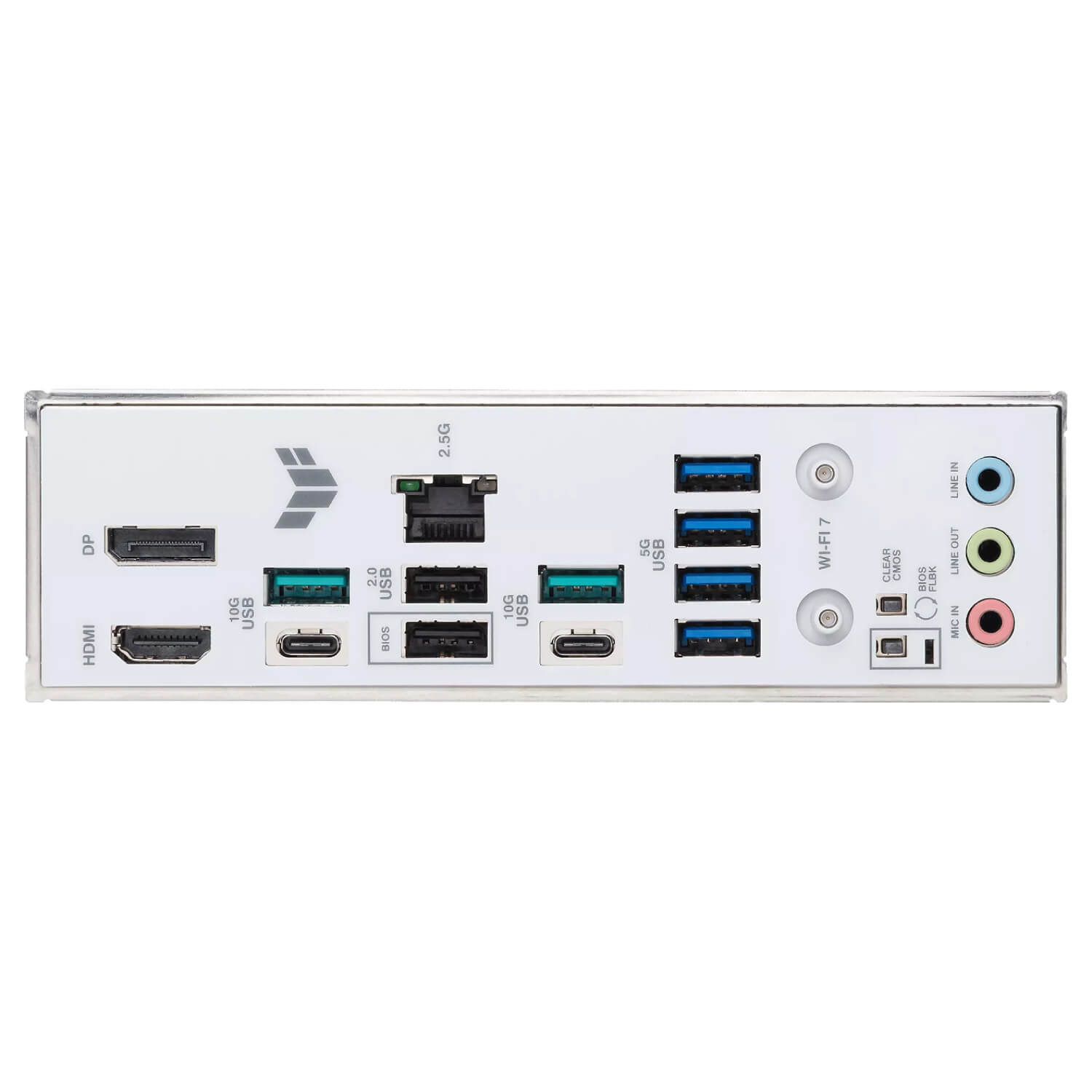

USB and Display Connectivity

A front USB 20Gbps Type-C connector is available for compatible PC cases

Rear USB 10Gbps Type-C ports provide fast external device connectivity

HDMI and DisplayPort outputs are available for compatible processors with integrated graphics

AI and Smart Control

ASUS AI Advisor helps users explore motherboard features in a simple way

AI Cooling II helps balance system thermals and acoustics with dynamic fan control

UEFI BIOS and ASUS MB Manager provide practical control options for system setup

Build With Confidence

M.2 Q-Release and M.2 Q-Latch help simplify SSD installation

PCIe Slot Q-Release helps make graphics card removal easier

TUF protection features and 24/7 reliability testing help support long-term stability

Clear CMOS and BIOS FlashBack buttons help with setup and troubleshooting
