Description

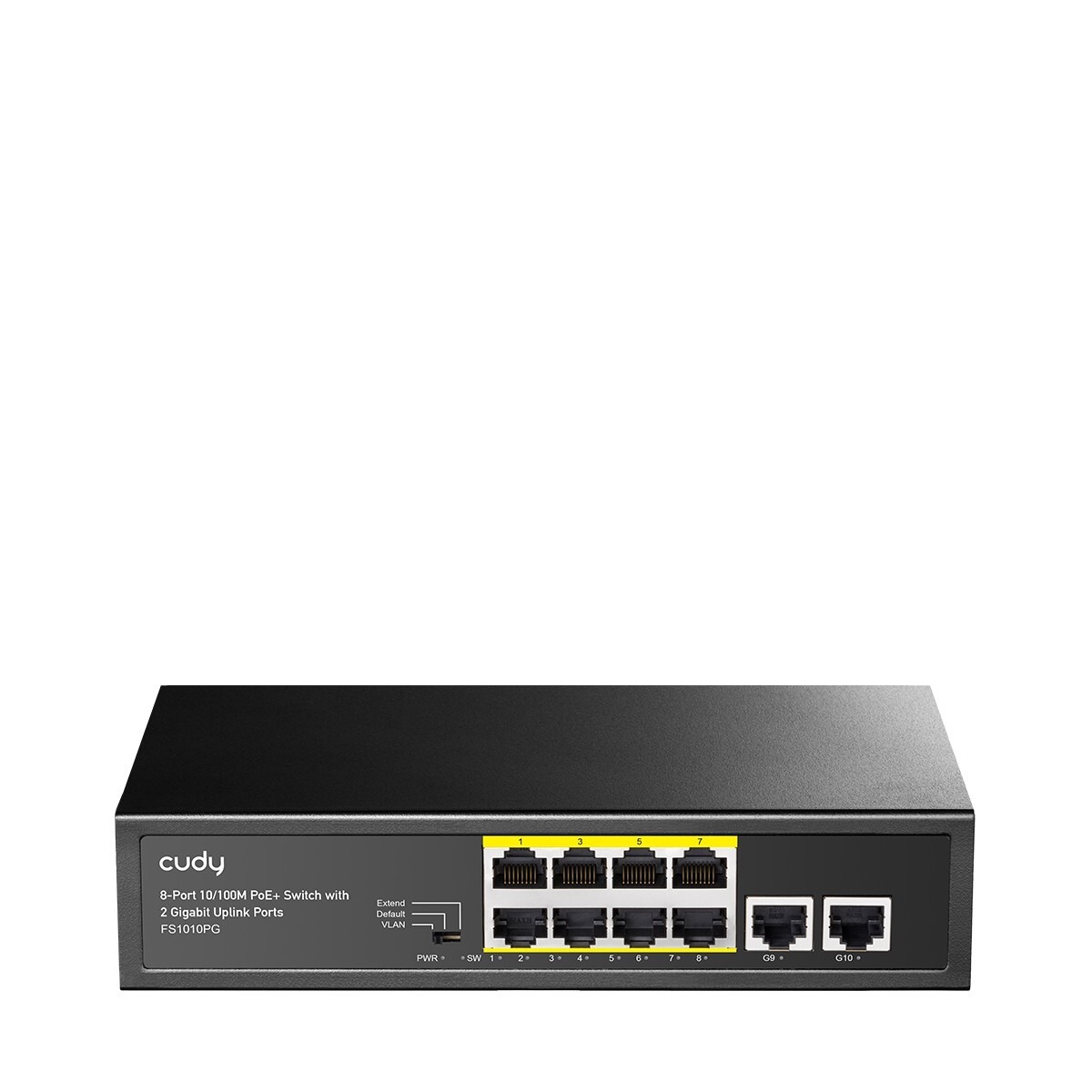

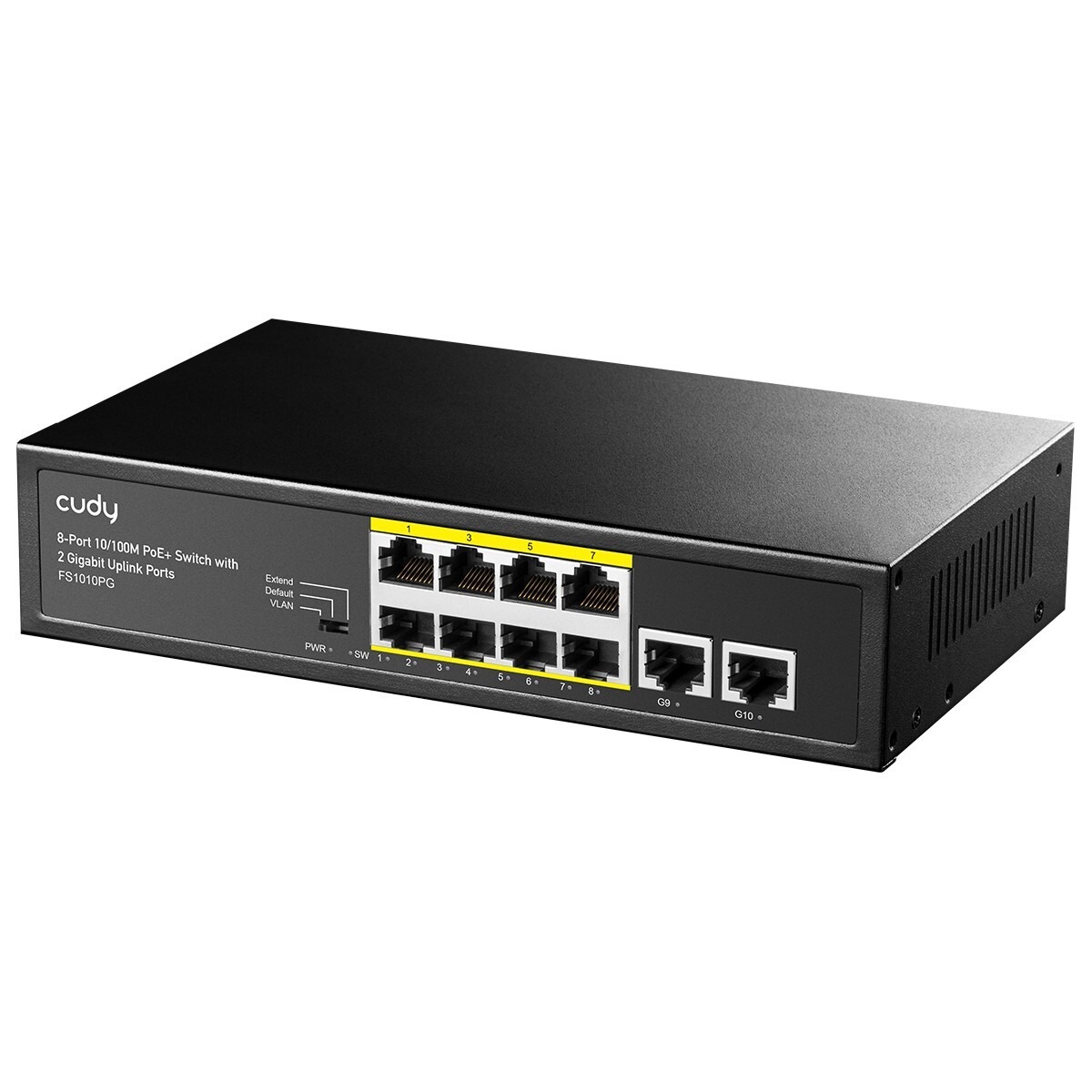

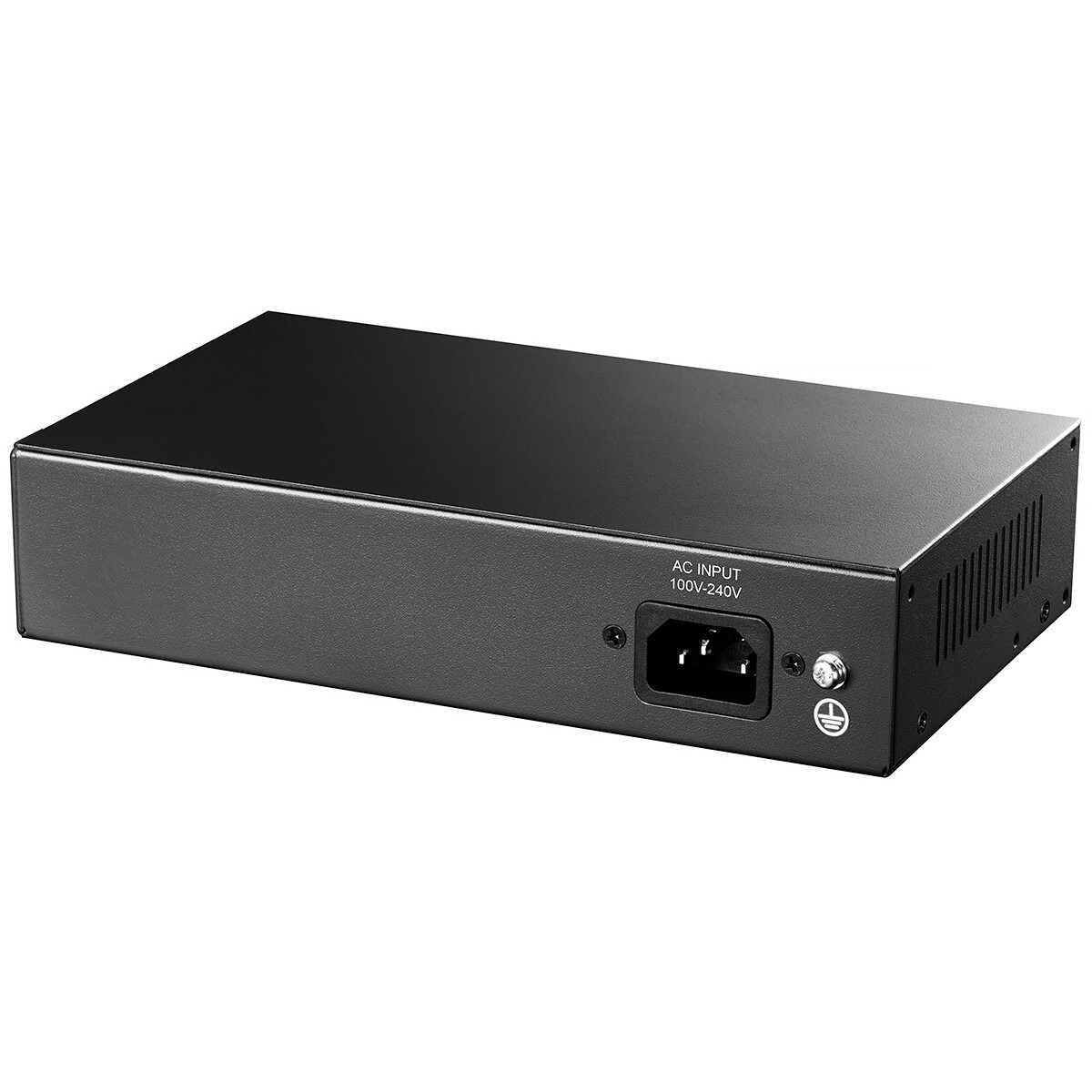

CUDY FS1010PG Unmanaged Switch 8 PortsPOE10/100 +H 2 Ports Giga (FS1010PG-IL)
Model FS1010PG
PoE standard IEEE802.3af/at
Interface 10*10/100Mbps The RJ45 port through consultationa
Key function CCTV&VLAN
PoE port 1~8 port
PoE Total 120W
Power supply 120W
RJ45 PoE power supply Mode A Anode1/2 Cathode3/6
PoE output-port Max 32W
Indicator PWR, LNK/ACT, PoE
Network media 10BASE-T: UTP category 3, 4, 5 cable(≤100m)；100BASE-TX: UTP category 5, 5e cable(≤100m)；
MAC Address Table 8K, Automatic study, automatic updates
Jumbo frame 1528Bytes
Packet buffer 2M bit
Transfer Mode Store-and-forward
Packet forwarding rate 1.48Mpps
Bandwidth 2M bit
Fan Fanless
Device Dimension 220*150*44mm
Machine Weight >1kg
Green energy saving Support IEEE（802.3az)
Mains Input 100~240V AC， 50/60Hz
Operating Temperature 0°C ~ 40 °C
Storage Temperature -40 °C ~ 70 °C
Operating Humidity 10% ~ 90% non-condensing
Storage Humidity 5% ~ 90% non-condensing
Surge Protection ±4KV
MTBF >50000 hour
Electrostatic standard Contact 4KV, air 6KV
