Gigabyte B550 AORUS ELITE WIFI7 AM4 ATX DDR4 Motherboard AMD Ryzen Gen7 Wi-Fi
Gigabyte B550 AORUS ELITE WIFI7 is an ATX AM4 motherboard with 12+2 phase power design, DDR4 support, PCIe 4.0 x16, dual M.2, Wi-Fi 7 and 2.5GbE for compatible AMD Ryzen desktop systems. GB550AORUSEWF7
Information

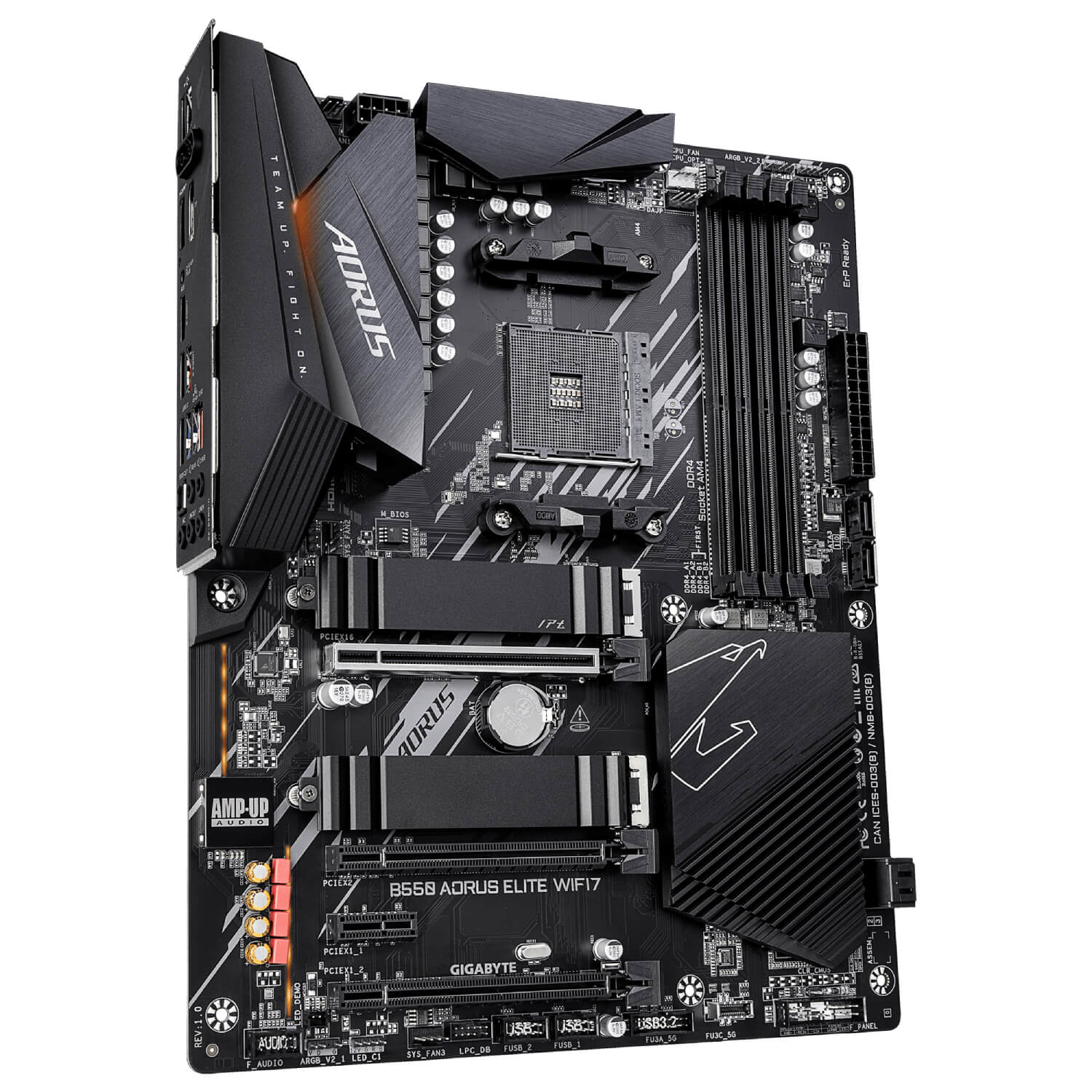

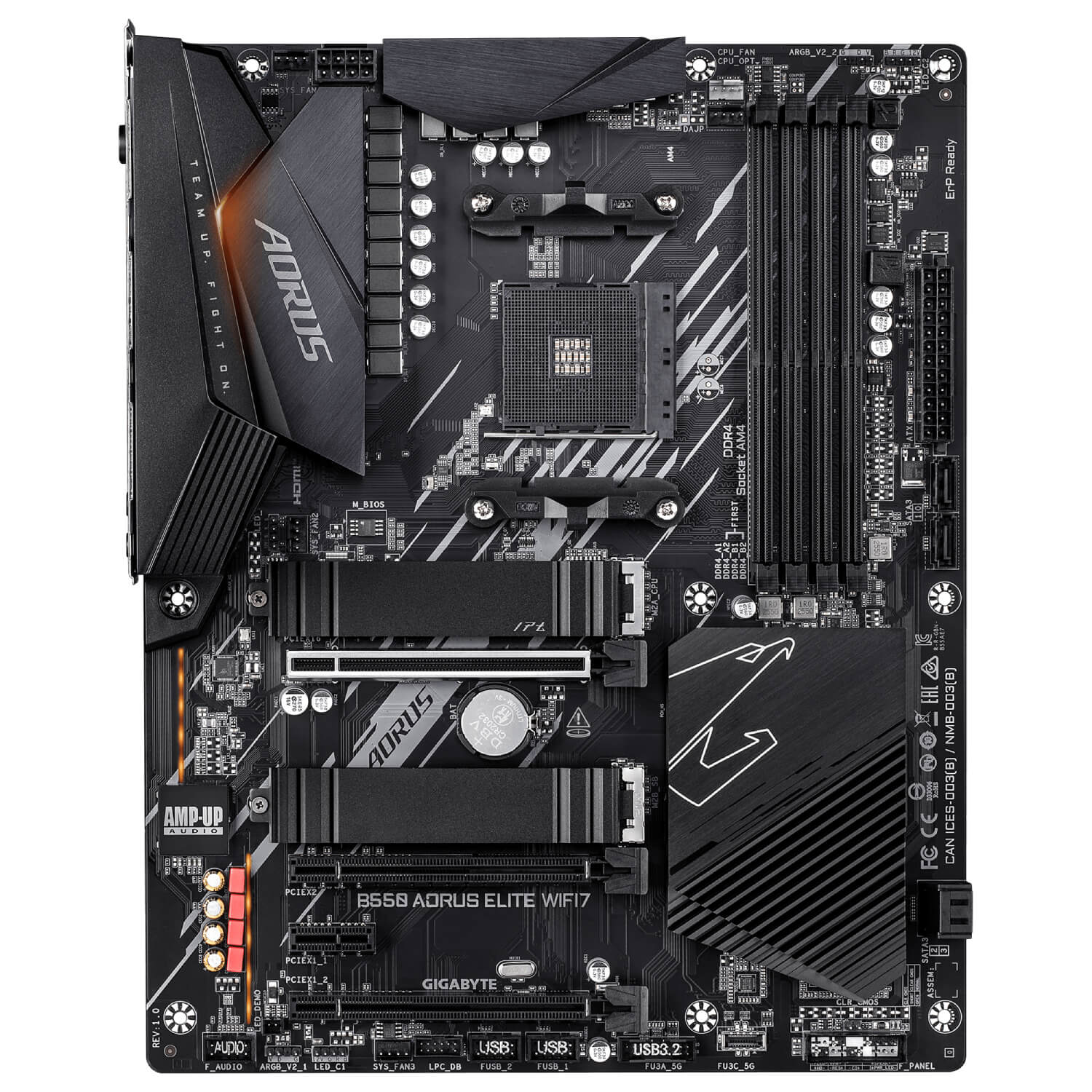

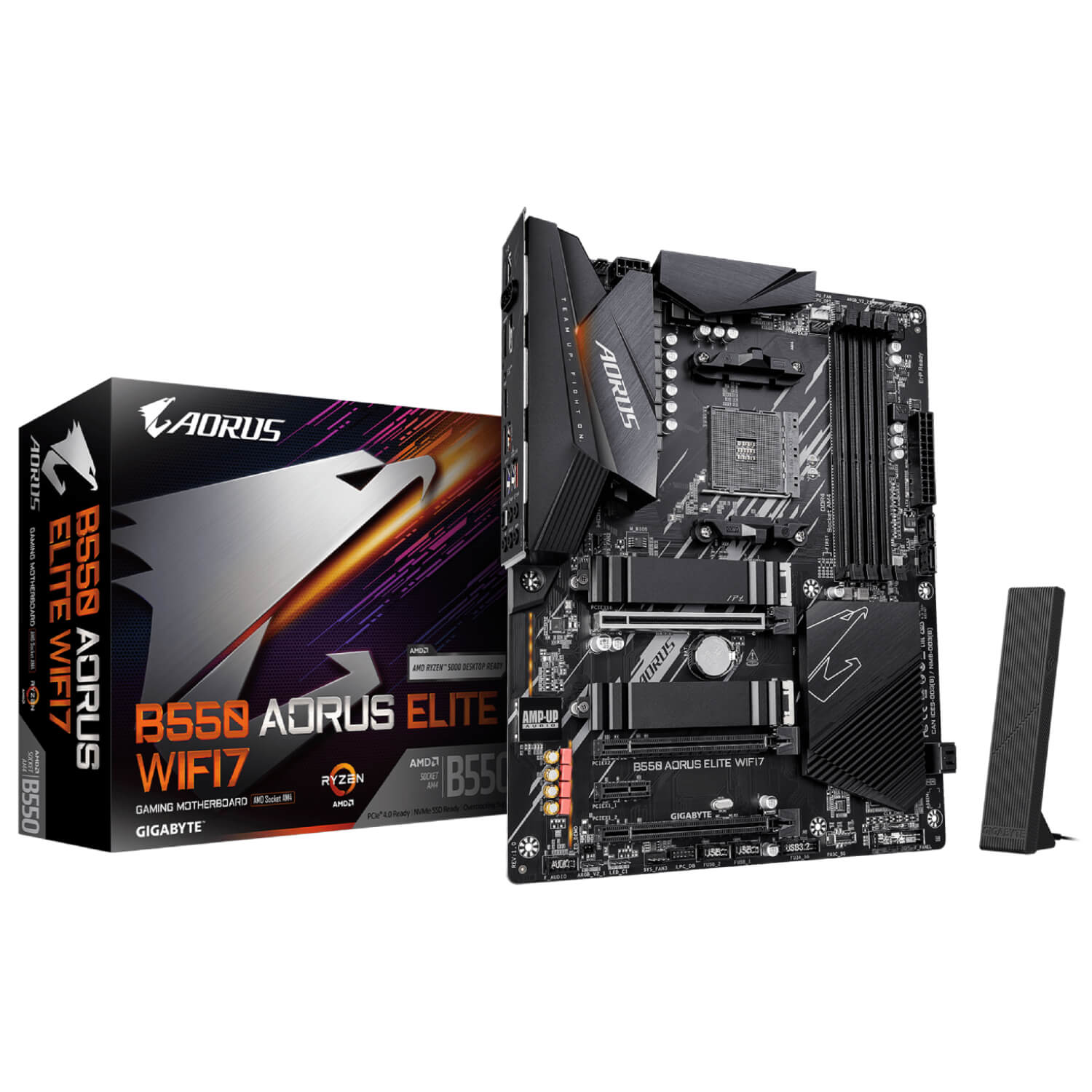

Gigabyte B550 AORUS ELITE WIFI7
An ATX motherboard based on the AMD B550 chipset and AM4 platform
Combines DDR4 memory support, PCIe 4.0 expansion, dual M.2 storage and Wi-Fi 7 with 2.5GbE networking
AMD AM4 Platform
Supports compatible AMD Ryzen 5000, 5000 G, 4000 G, 3000 and 3000 G Series processors
A 12+2 phase Digital Twin Power Design with 50A DrMOS supports processor power delivery
Solid Pin power connectors and a 2X Copper PCB complement the power design
DDR4 Memory
Four DDR4 DIMM slots support up to 128GB of system memory
Dual-channel architecture and support for XMP memory modules provide flexible memory configurations
PCIe 4.0 and Dual M.2
The primary PCIe x16 slot supports PCIe 4.0 x16 with compatible Ryzen processors
Two M.2 connectors provide NVMe storage expansion with PCIe 4.0 or PCIe 3.0 support depending on the slot and installed processor
Dual M.2 Thermal Guards help dissipate heat from installed M.2 SSDs
Wi-Fi 7 and 2.5GbE
Wi-Fi 7 supports 2.4GHz, 5GHz and 6GHz frequency bands with compatible networks and regional availability
Bluetooth 5.4 provides wireless connectivity for compatible peripherals
Realtek 2.5GbE LAN provides high-speed wired networking
WIFI EZ-Plug simplifies connection of the Wi-Fi antenna
Advanced Thermal Design
Enlarged surface heatsinks and 5 W/mK thermal pads help manage heat around the power delivery area
Smart Fan 6 supports PWM and DC fans, water pumps, temperature monitoring and Fan Stop

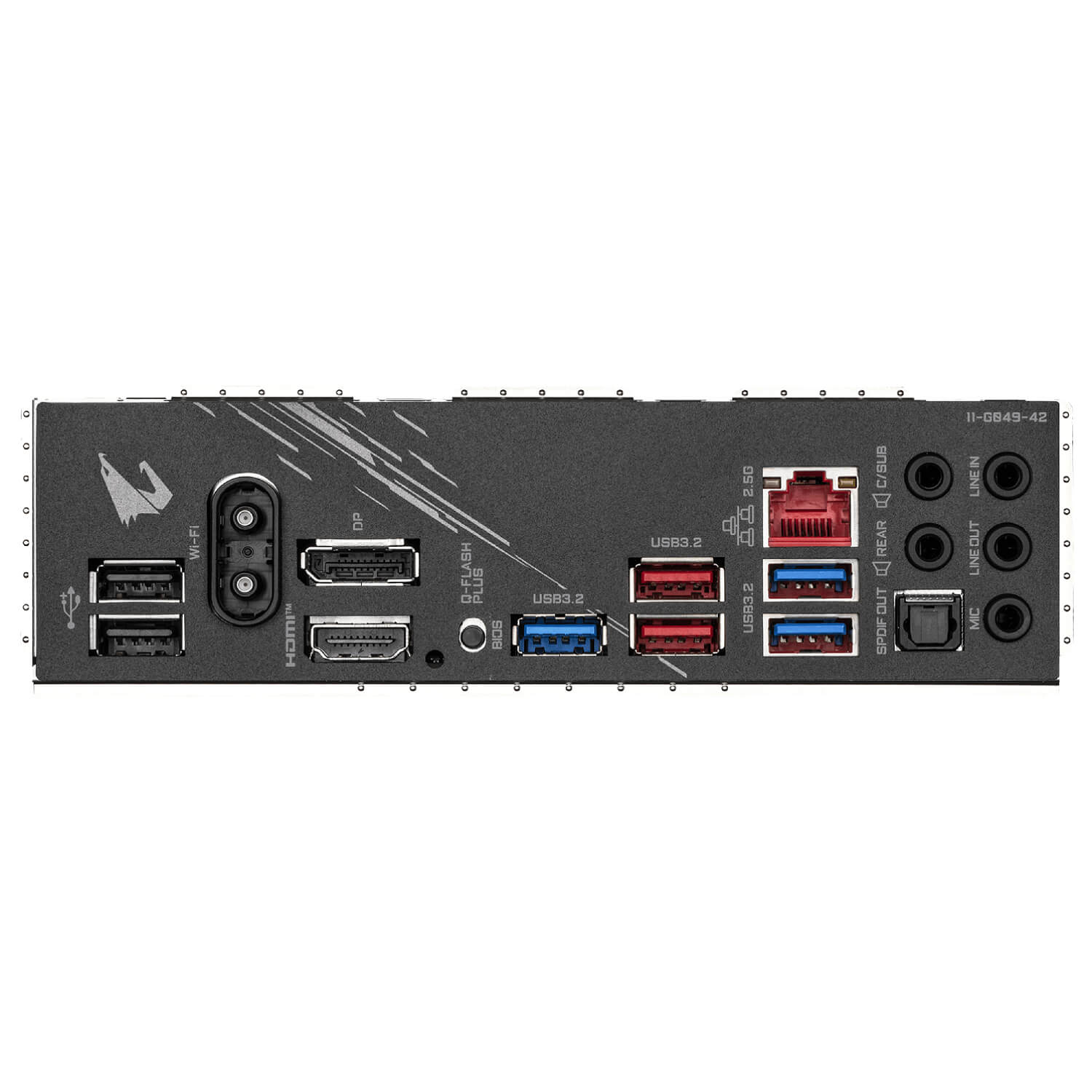

Display and USB Connectivity
DisplayPort and HDMI provide display output when supported by the installed processor
A front USB 3.2 Gen 1 Type-C connector provides convenient connectivity for compatible cases and devices
AORUS Features
RGB Fusion 2.0 supports compatible addressable RGB and RGB lighting devices
Q-Flash Plus enables BIOS updates without installing the CPU, memory or graphics card
A pre-installed I/O shield simplifies system assembly
