Description
Gigabyte B550M X AORUS ELITE is a Micro-ATX AM4 motherboard with DDR4 support, PCIe 4.0 x16, dual M.2 storage, 2.5GbE LAN and USB-C connectivity for compatible AMD Ryzen desktop systems. GB550MXAORUSEL
Specification
Chipset
Socket
Memory Type
MB Form Factor
Network Connections
Graphics Interface
USB Connector
Audio O.B
RAID
DDR4 Slots
PCI-E x16
PCI-E x16 (x4) Slot
USB Type-C
USB 3.2
USB 2.0
Storage Interface
MB Expansion Slots
M.2 PCIe Connectors
SATA3 Ports
COM Port
Information

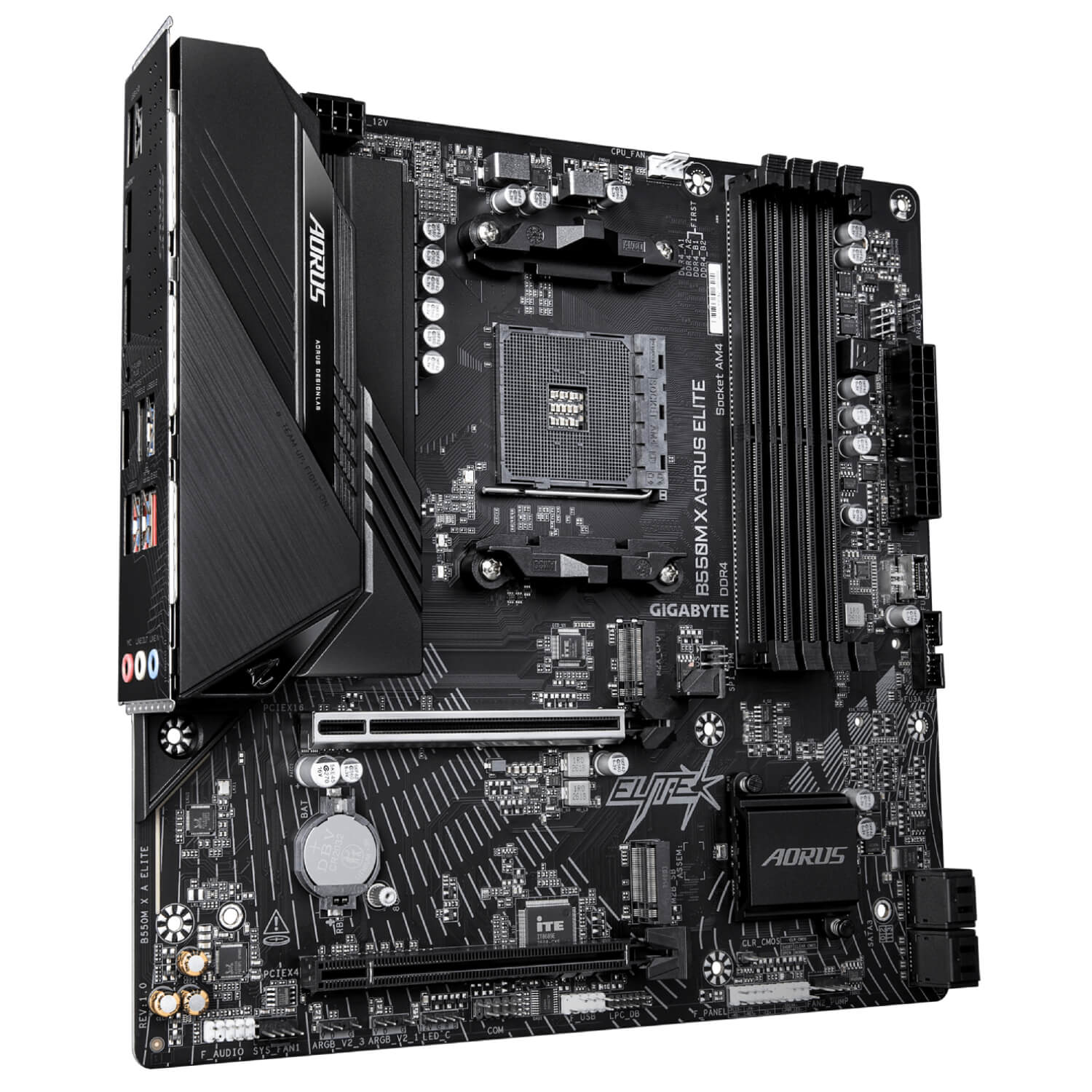

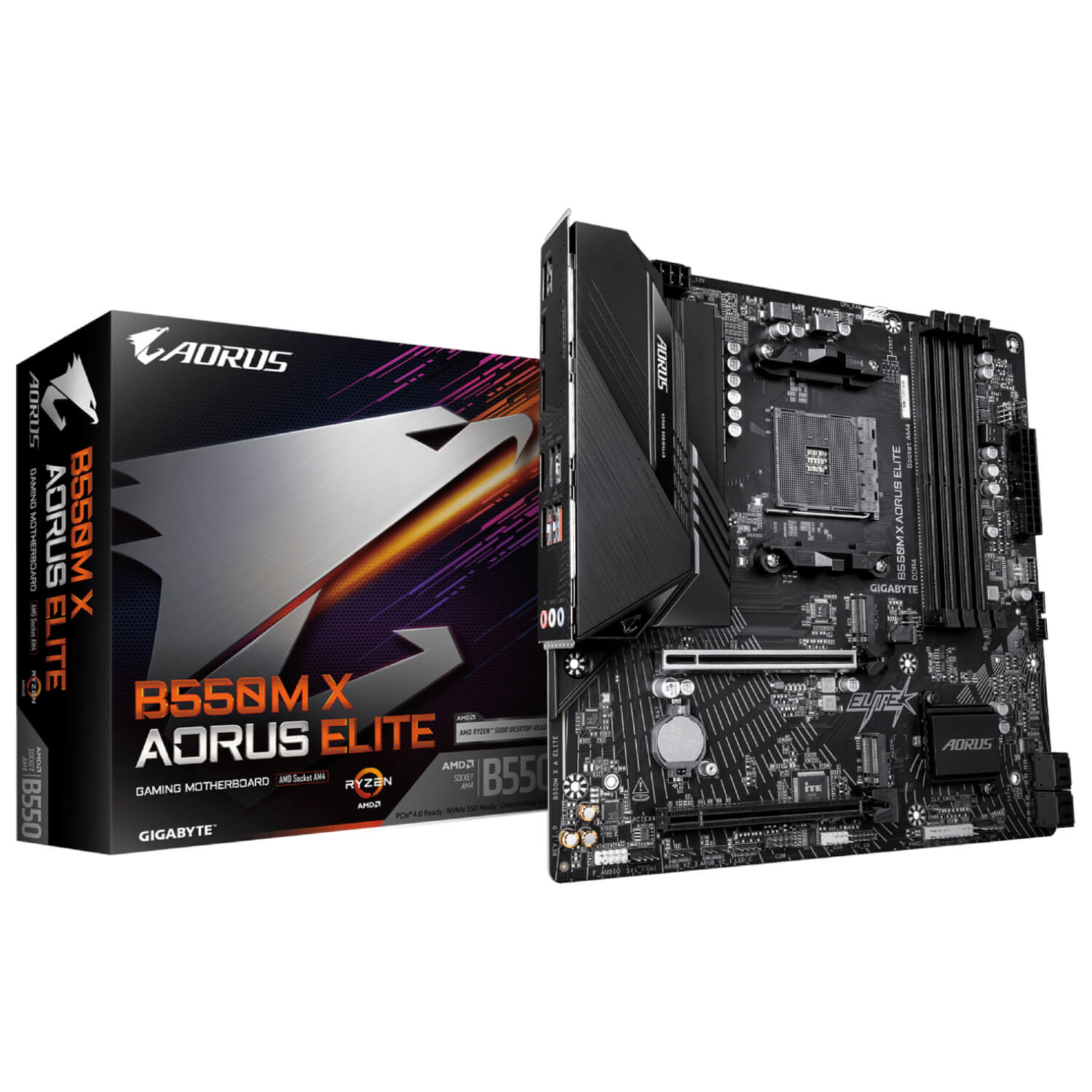

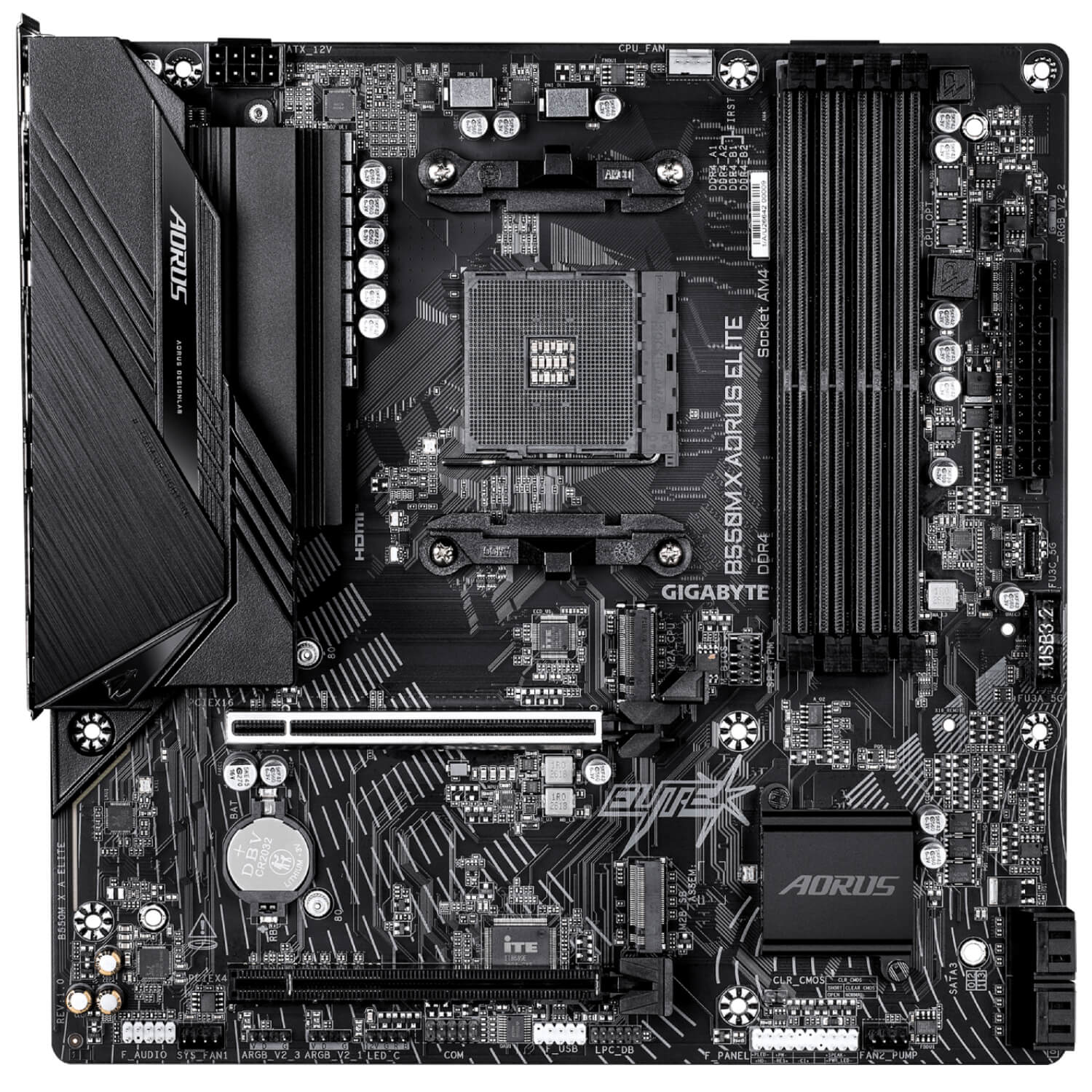

Gigabyte B550M X AORUS ELITE
A Micro-ATX motherboard based on the AMD B550 chipset and AM4 platform
Combines DDR4 memory support, PCIe 4.0 expansion, dual M.2 storage and 2.5GbE networking in a compact desktop format
AMD AM4 Platform
Supports compatible AMD Ryzen 5000, 5000 G, 4000 G, 3000 and 3000 G Series processors
An 8+2 Twin Hybrid Digital VRM design with 60A DrMOS supports processor power delivery
UD Solid Pin power connectors complement the motherboard power design
DDR4 Memory
Four DDR4 DIMM slots support up to 128GB of system memory
Dual-channel architecture and XMP memory support provide flexible memory configurations
PCIe 4.0 and Dual M.2
The primary PCIe x16 slot supports PCIe 4.0 x16 with compatible Ryzen processors
Two M.2 connectors provide NVMe storage expansion, including PCIe 4.0 x4 support through the CPU-connected slot with compatible processors
Four SATA 6Gb/s connectors provide additional storage connectivity
Advanced Thermal Design
VRM Thermal Armor Advanced uses an enlarged cooling surface and a 5 W/mK thermal pad around the power delivery area
Smart Fan 6 supports compatible PWM and DC fans, water-cooling pumps, custom fan curves and Fan Stop
2.5GbE and Hi-Fi Audio
Realtek 2.5GbE LAN provides high-speed wired networking
Realtek ALC1220 provides multi-channel HD audio with high-end audio capacitors and Audio Noise Guard
USB and Display Connectivity

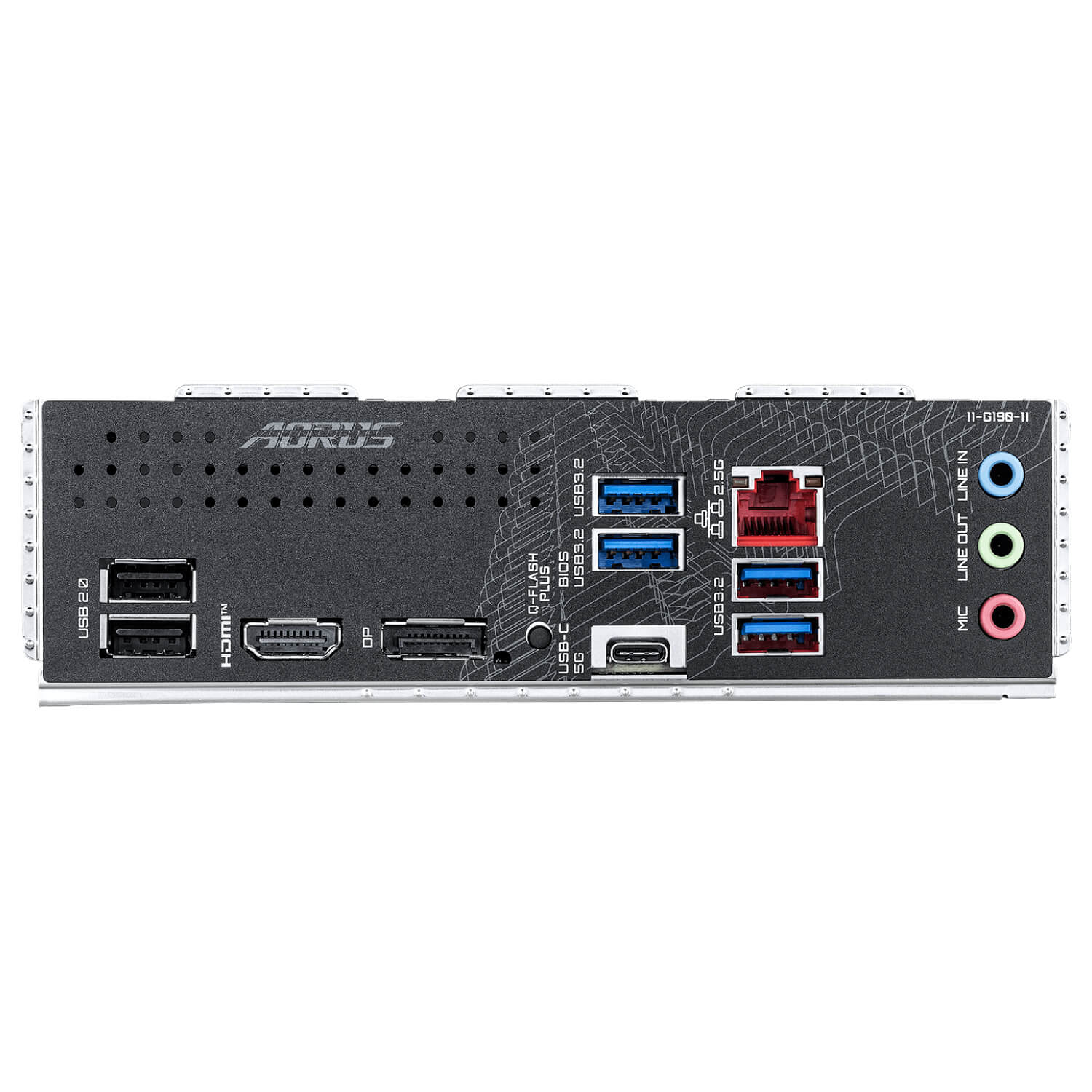

Rear connectivity includes USB 3.2 Gen 1 Type-C, four USB 3.2 Gen 1 Type-A ports and two USB 2.0 ports
A front USB Type-C header also supports USB 3.2 Gen 1 connectivity
HDMI and DisplayPort provide display output when supported by the installed processor
DIY-Friendly AORUS Features
PCIe EZ-Latch simplifies removal of a compatible graphics card
Q-Flash Plus enables BIOS updates without installing the CPU, memory or graphics card
RGB Fusion supports compatible RGB and Addressable RGB lighting devices
An integrated I/O shield simplifies system assembly
