Description

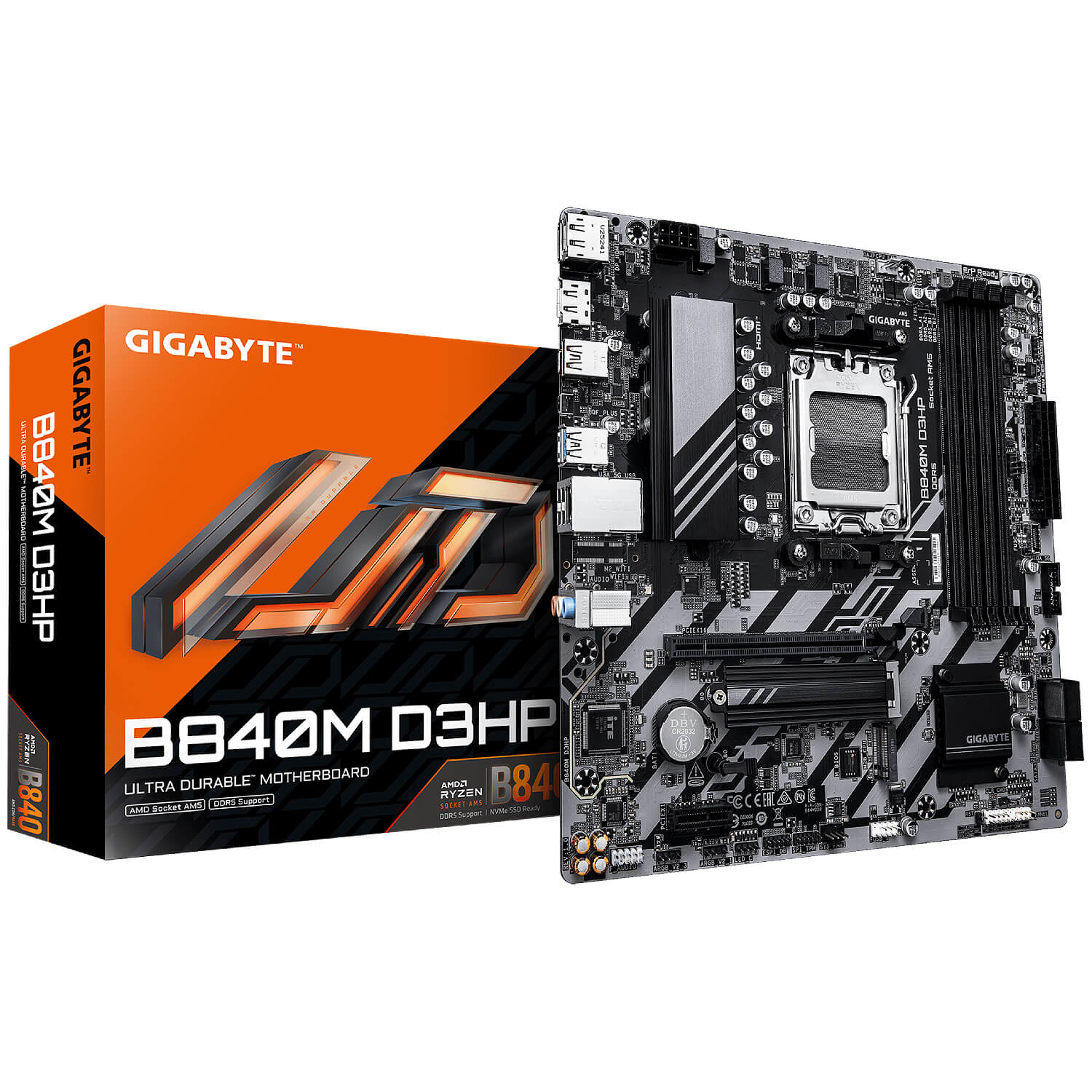

GIGABYTE B840M D3HP AM5 AMD B840 Micro-ATX Motherboard DDR5 M.2 GB840MD3HP
Gigabyte B840M D3HP. X3D Turbo Mode’s unique optimization parameters allow even Ryzen 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen X3D counterparts. GB840MD3HP
Specification
Chipset
AMD B840
Socket
AM5
Memory Type
DDR5
MB Form Factor
Micro ATX
Network Connections
LAN 1 Gb/s
Graphics Interface
HDMI
\ DisplayPort
USB Connector
USB 2.0
\ USB 3.2
\ USB Type-C
Audio O.B
3 port
RAID
0,1,5,10
DDR5 Slots
4
PCI-E x16
1
PCI-E x1
1
USB Type-C
2
USB 3.2
4
USB 2.0
5
Storage Interface
SATA3
\ M.2 PCIe
SATA3 Ports
4
M.2 PCIe Connectors
2
MB Expansion Slots
Trusted Platform Module (TPM)
\ PCIe 4.0 x16
\ PCIe 3.0 x1
Information

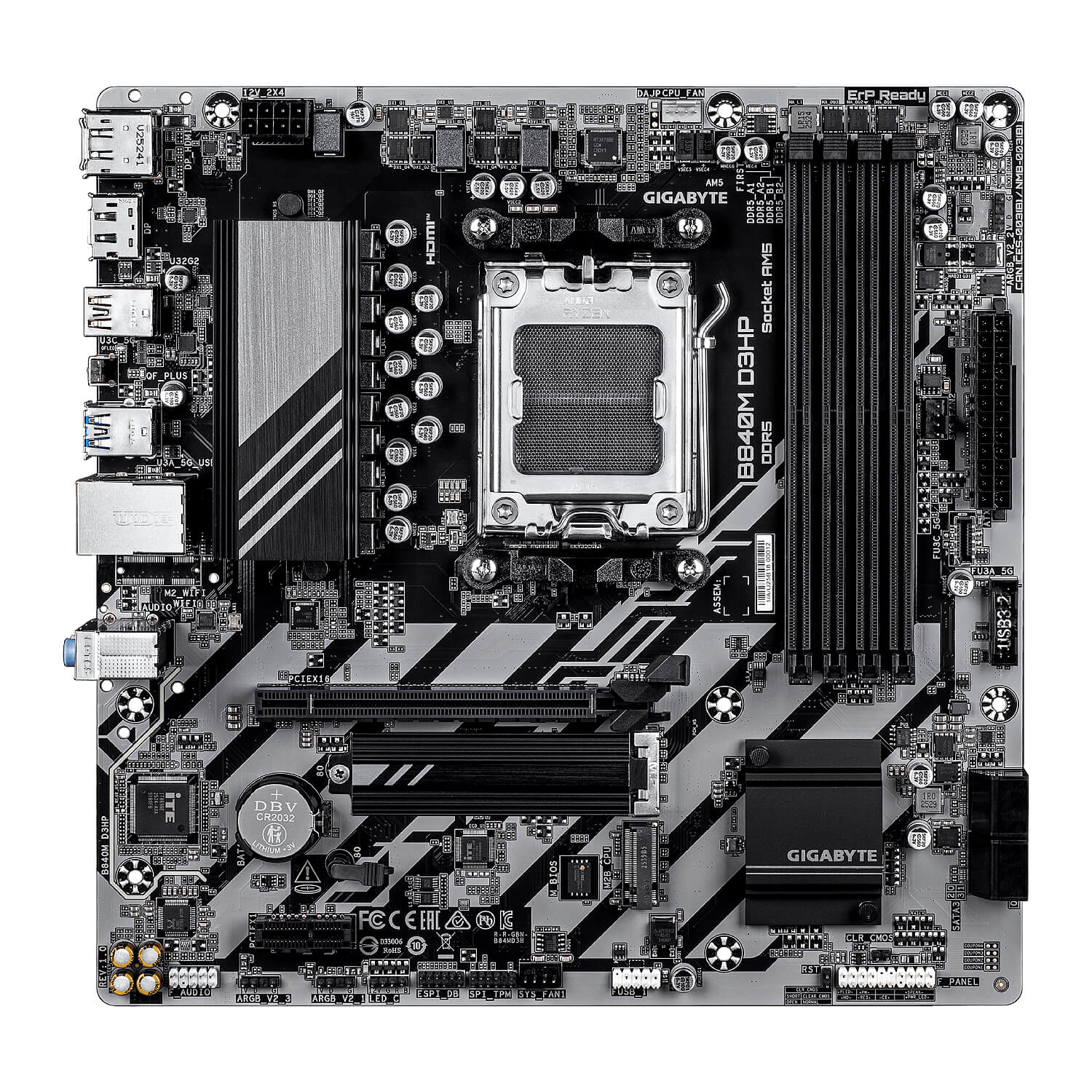

Gigabyte B840M D3HP
X3D Turbo Mode : Unleash new era gaming performance
DDR5 OC up to 8200MT/s
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 8+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
EZ-Latch : PCIe and M.2 slots with Quick Release Design
Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking : GbE LAN

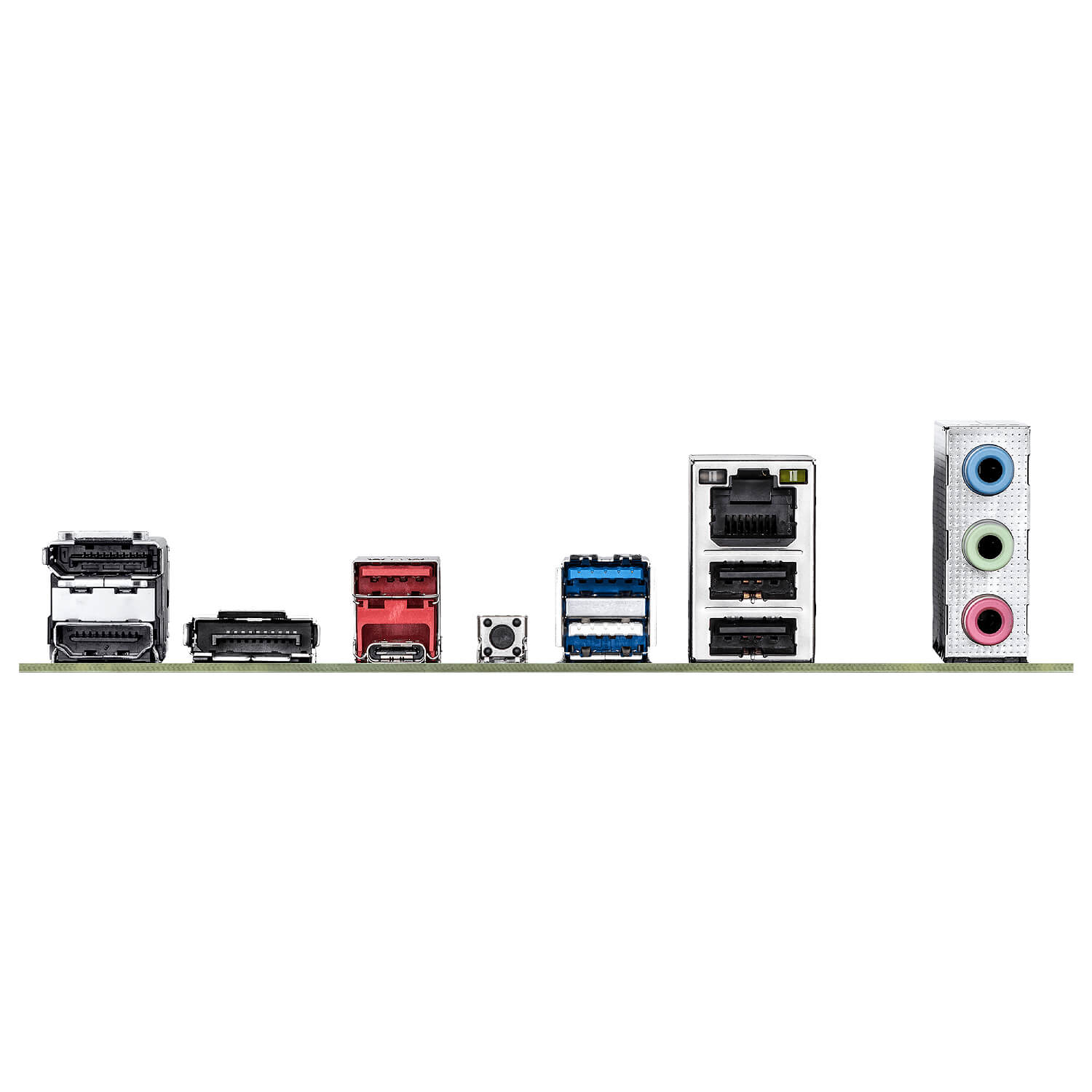

Extended Connectivity : HDMI, 2*Displayport
