Description
Specification
Chipset
Socket
Memory Type
MB Form Factor
Network Connections
Graphics Interface
USB Connector
Wirelless Adapter
Audio O.B
RAID
DDR5 Slots
PCI-E x16
PCI-E x16 (x4) Slot
USB Type-C
USB 3.2
USB 2.0
Storage Interface
MB Expansion Slots
M.2 PCIe Connectors
SATA3 Ports
Information

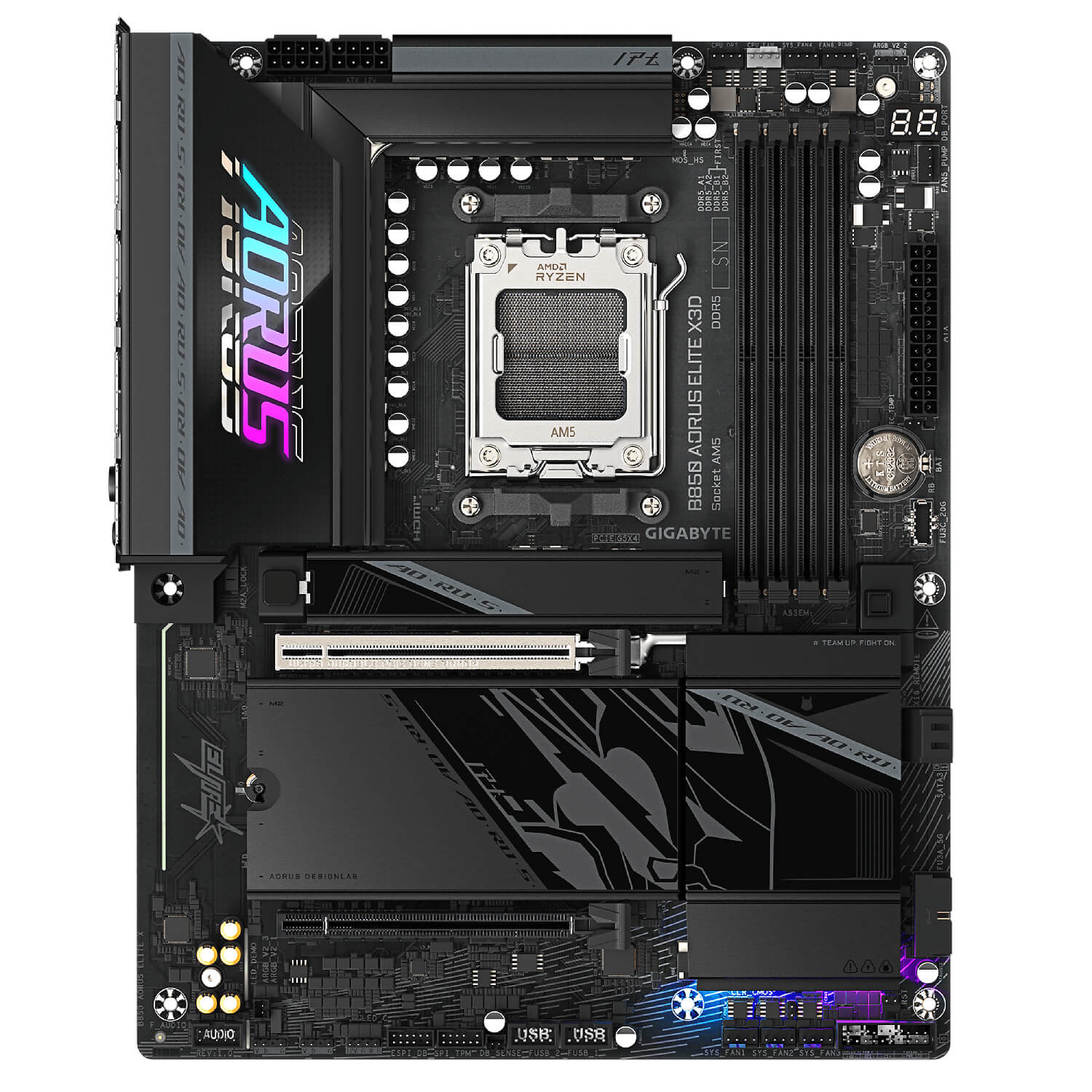

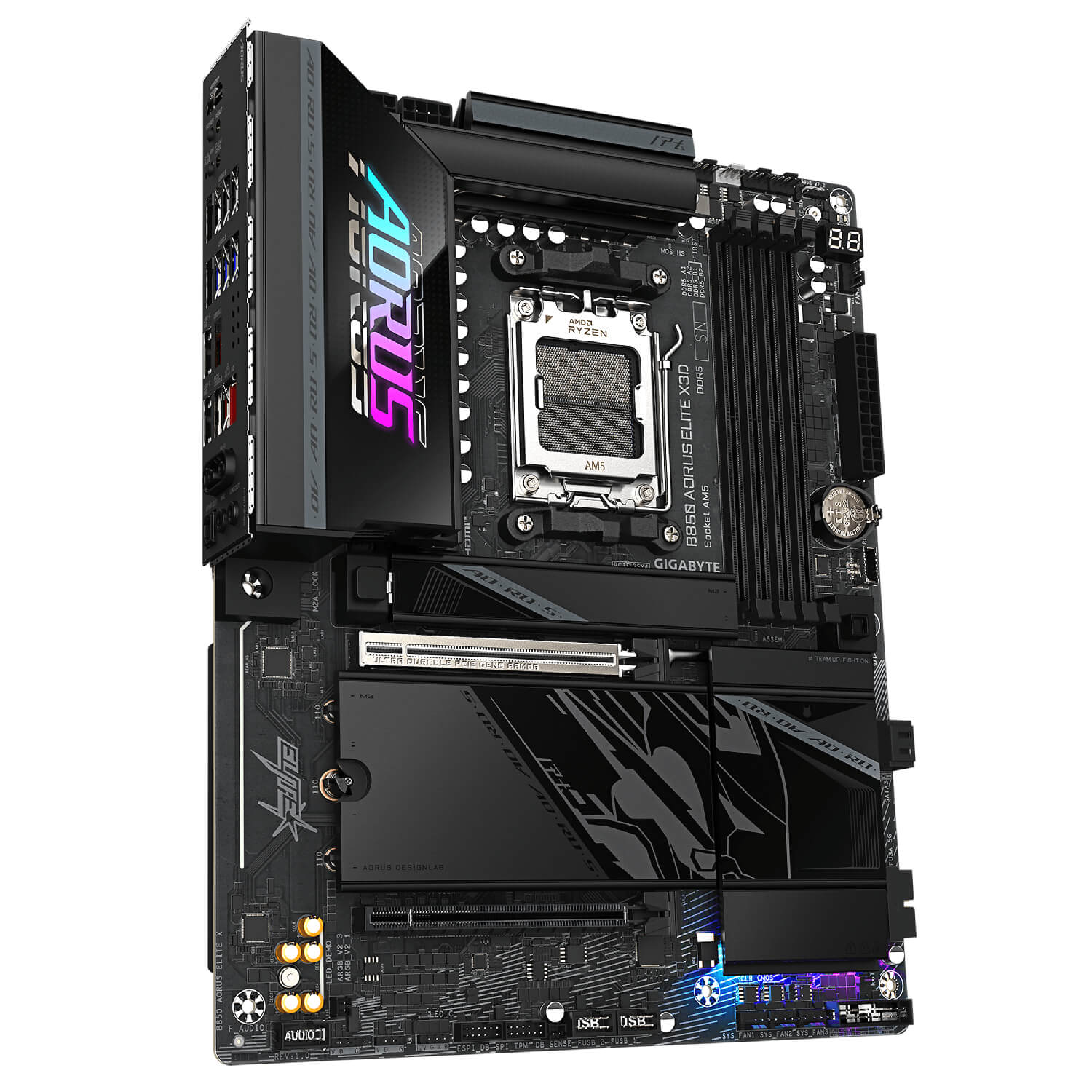

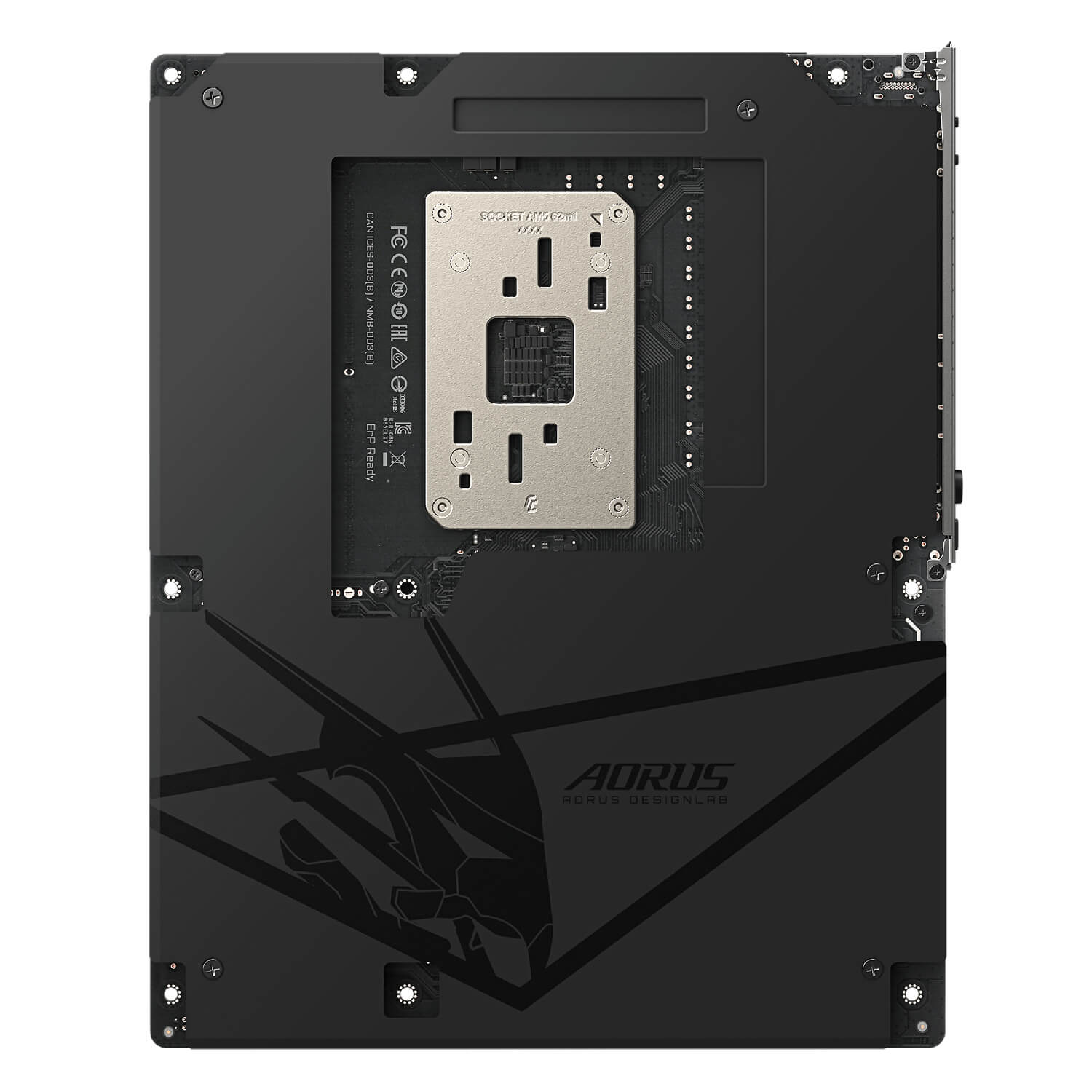

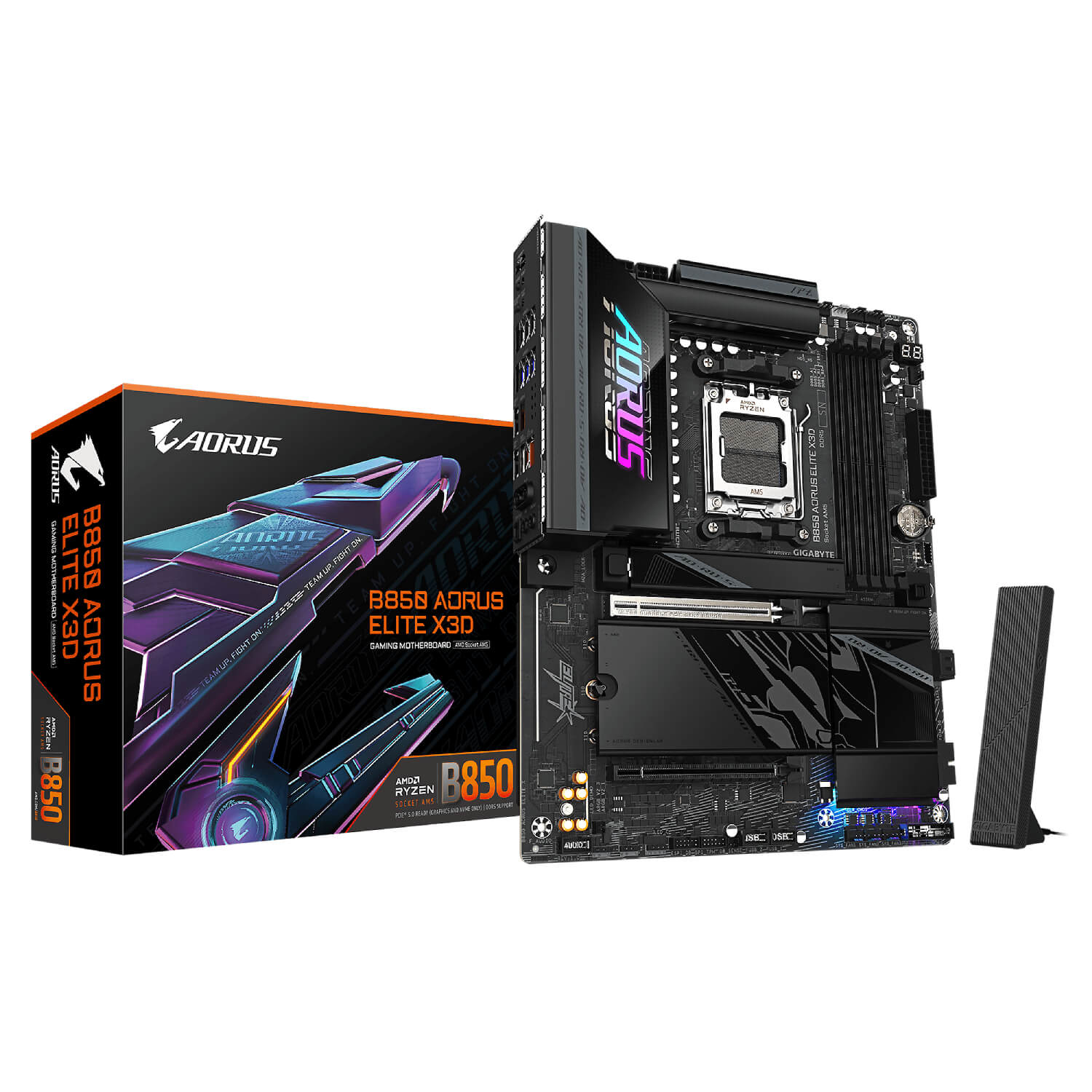

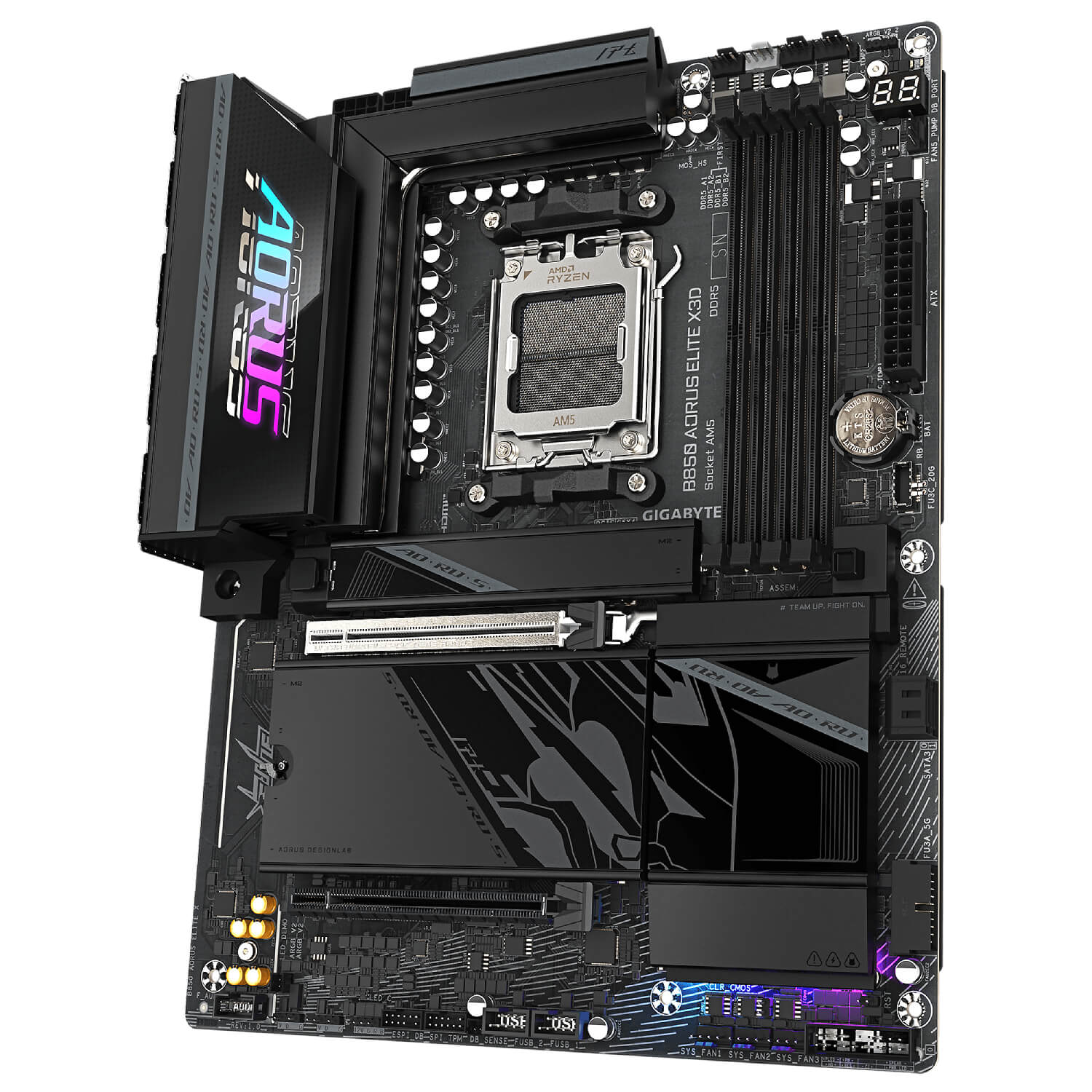

Gigabyte B850 AORUS ELITE X3D
An ATX motherboard based on the AMD B850 chipset for compatible AMD Ryzen 9000, 8000 and 7000 Series processors
Designed for gaming and performance-focused desktop systems with DDR5 memory, PCIe 5.0 and modern network connectivity
X3D Turbo Mode 2.0
X3D Turbo Mode 2.0 dynamically optimizes compatible Ryzen X3D processor parameters in real time
Extreme Gaming Mode and Max Performance Mode allow adjustment according to the system workload
DDR5 Memory and Digital Power
Four DDR5 DIMM slots support up to 256GB of dual-channel memory
Memory speeds up to 8200MT/s through overclocking are supported, together with AMD EXPO and XMP profiles
The 16+2+2 phase digital VRM solution provides power delivery for demanding system configurations
PCIe 5.0 and M.2 Storage
The primary expansion slot supports PCIe 5.0 x16 with compatible AMD Ryzen 9000 and 7000 Series processors
Four M.2 connectors provide storage expansion, including up to two PCIe 5.0 slots depending on the installed processor
PCIe EZ-Latch Plus and M.2 EZ-Latch mechanisms simplify graphics card and SSD installation
Fast Network Connectivity
Realtek 5GbE LAN and Wi-Fi 7 provide wired and wireless network options
Bluetooth 5.4 supports compatible wireless peripherals
Cooling and Connectivity
VRM Thermal Armor Advanced and dedicated M.2 heatsinks help manage component temperatures

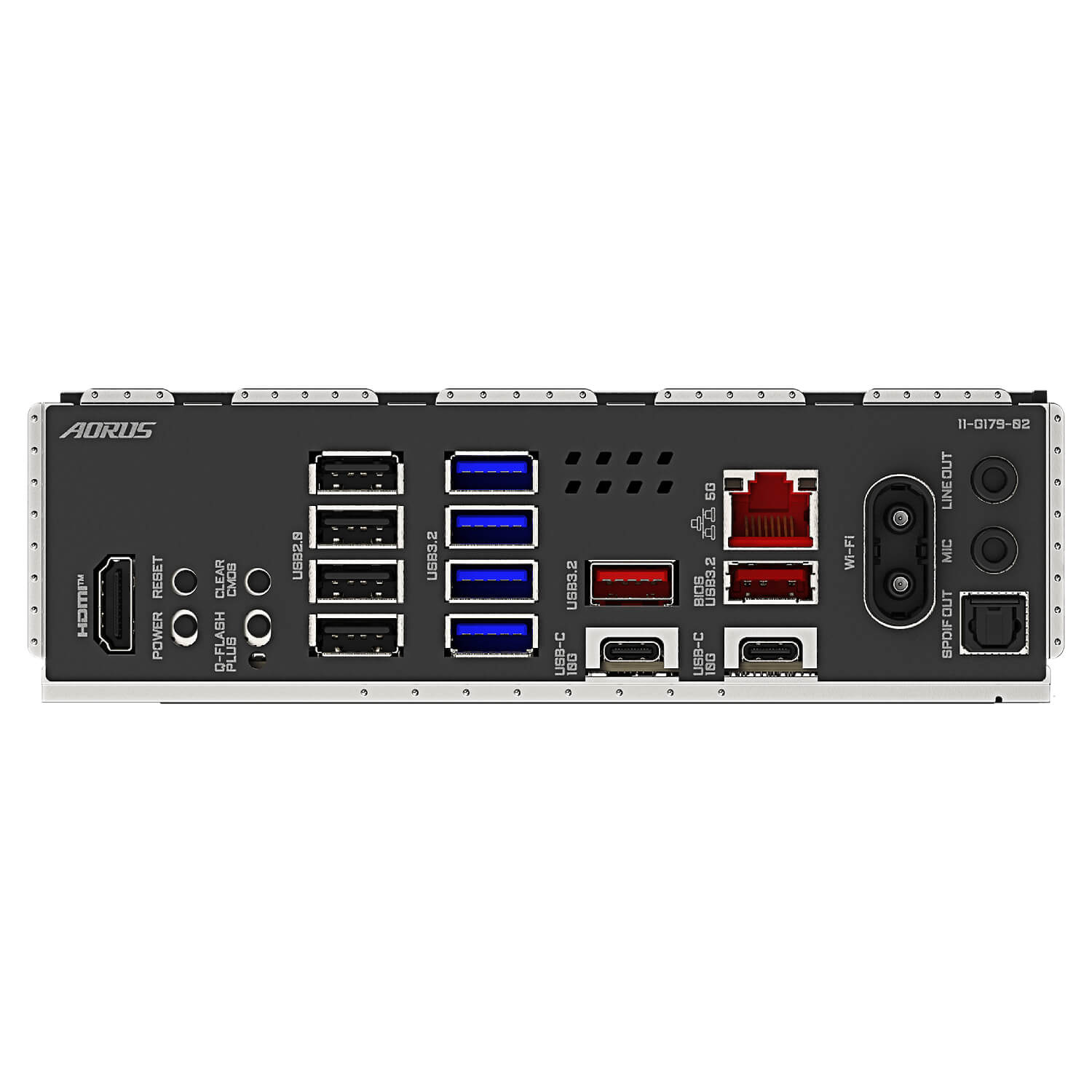

The rear panel includes USB Type-C, USB Type-A, HDMI, optical S/PDIF and audio connections
