Gigabyte B850M AORUS STEALTH is a Micro ATX AMD B850 motherboard for Ryzen 9000/8000/7000 Series CPUs, with DDR5, PCIe 5.0 x16, three M.2 slots, Wi-Fi 7, Bluetooth 5.4 and 5GbE LAN. GB850MAORUSSTEALTH
Information

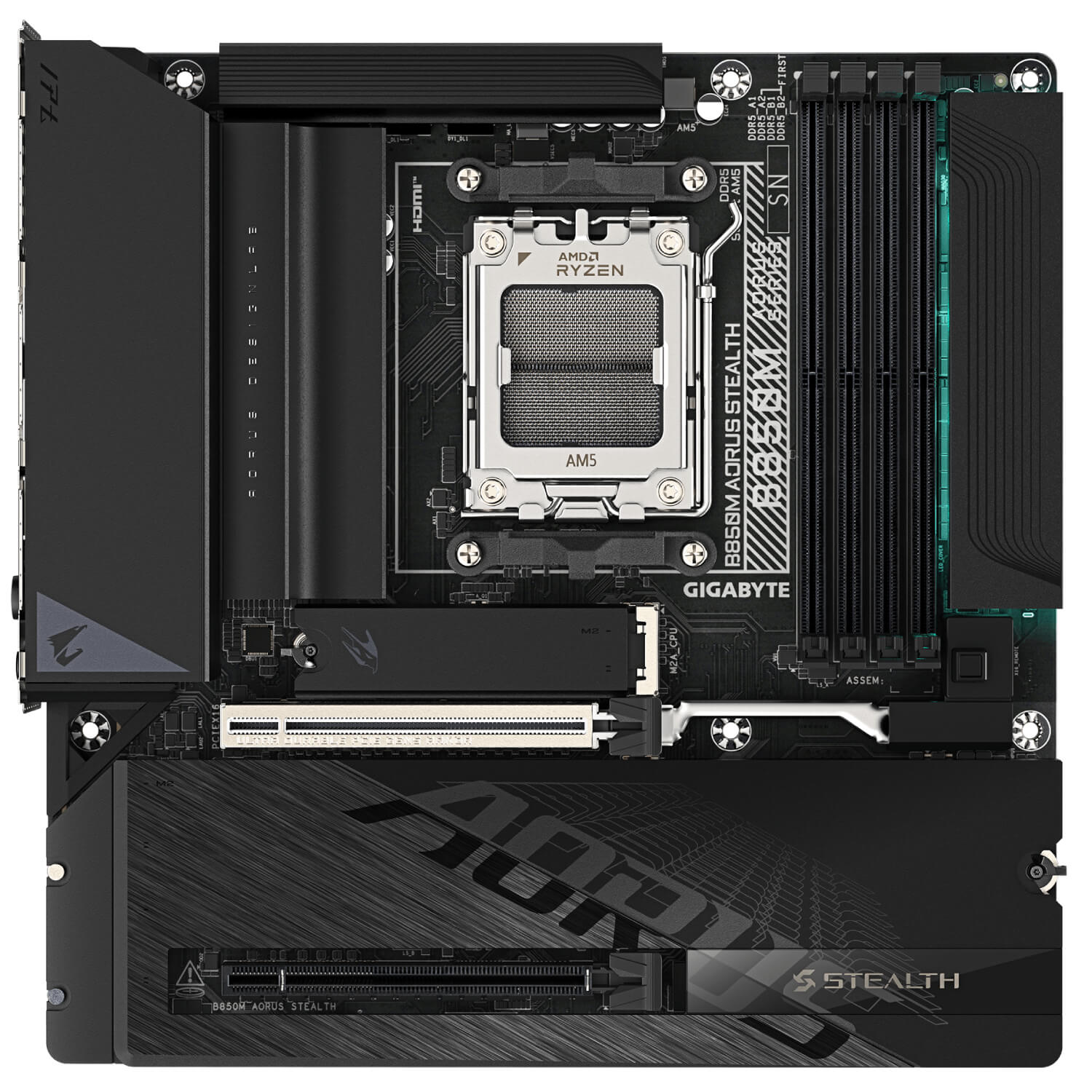

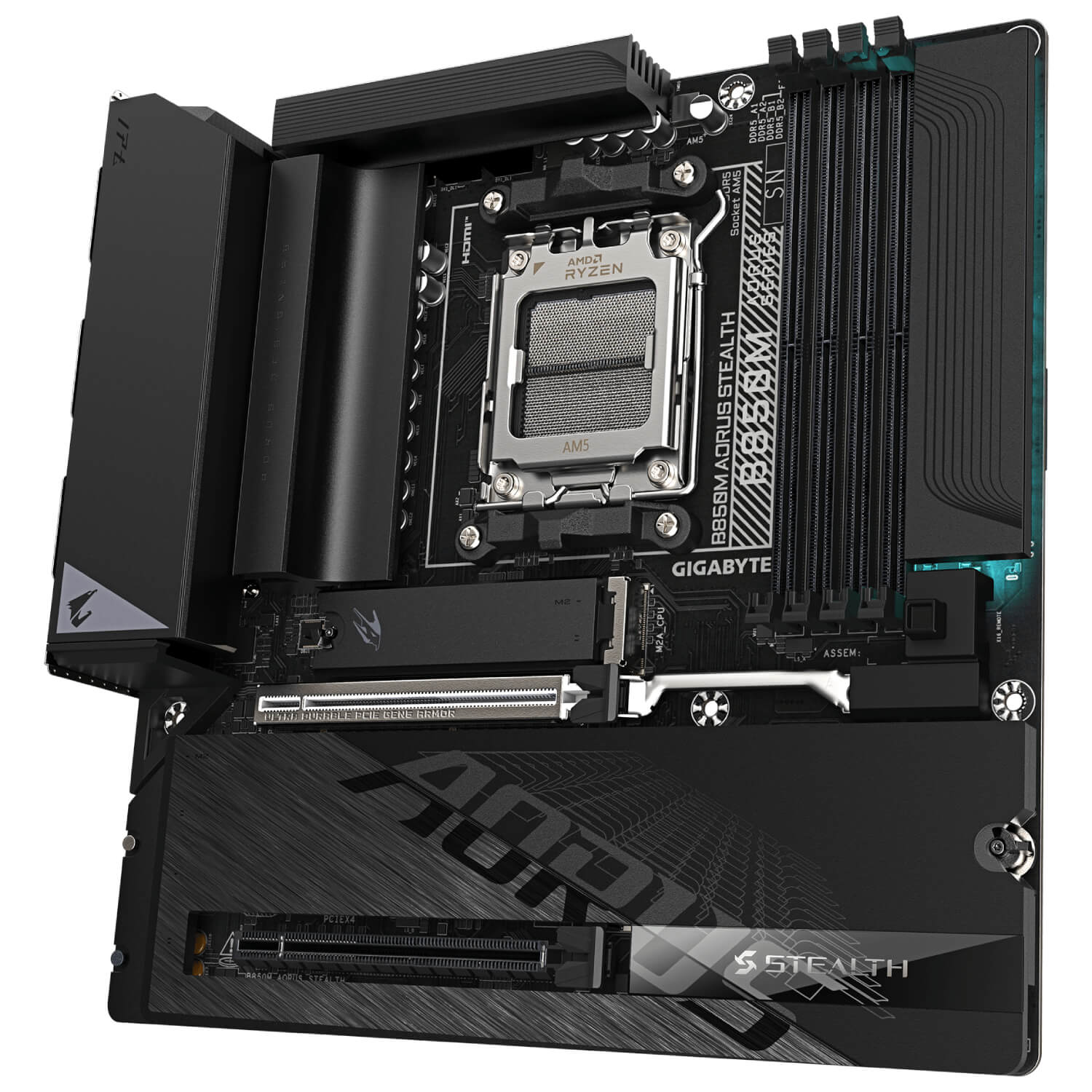

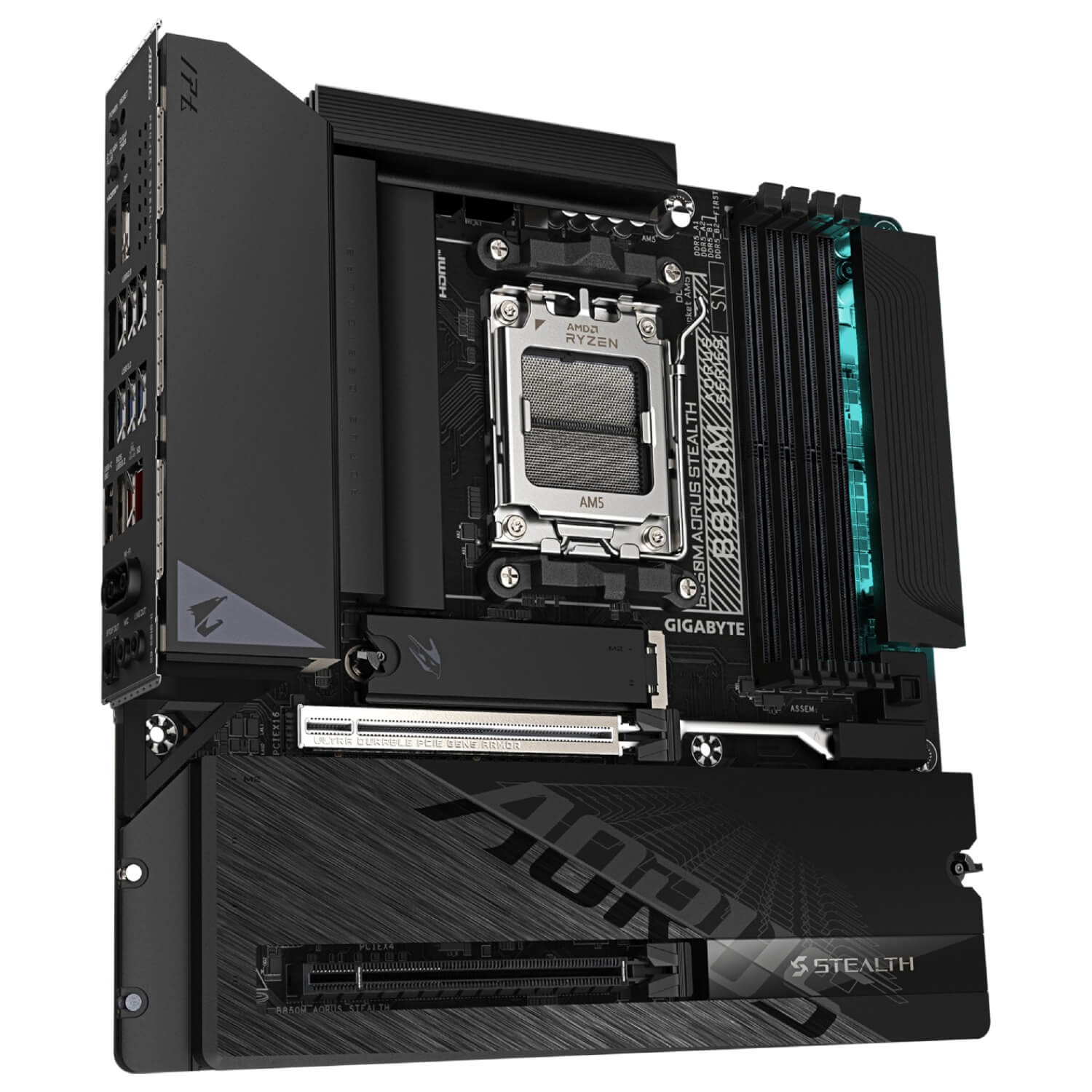

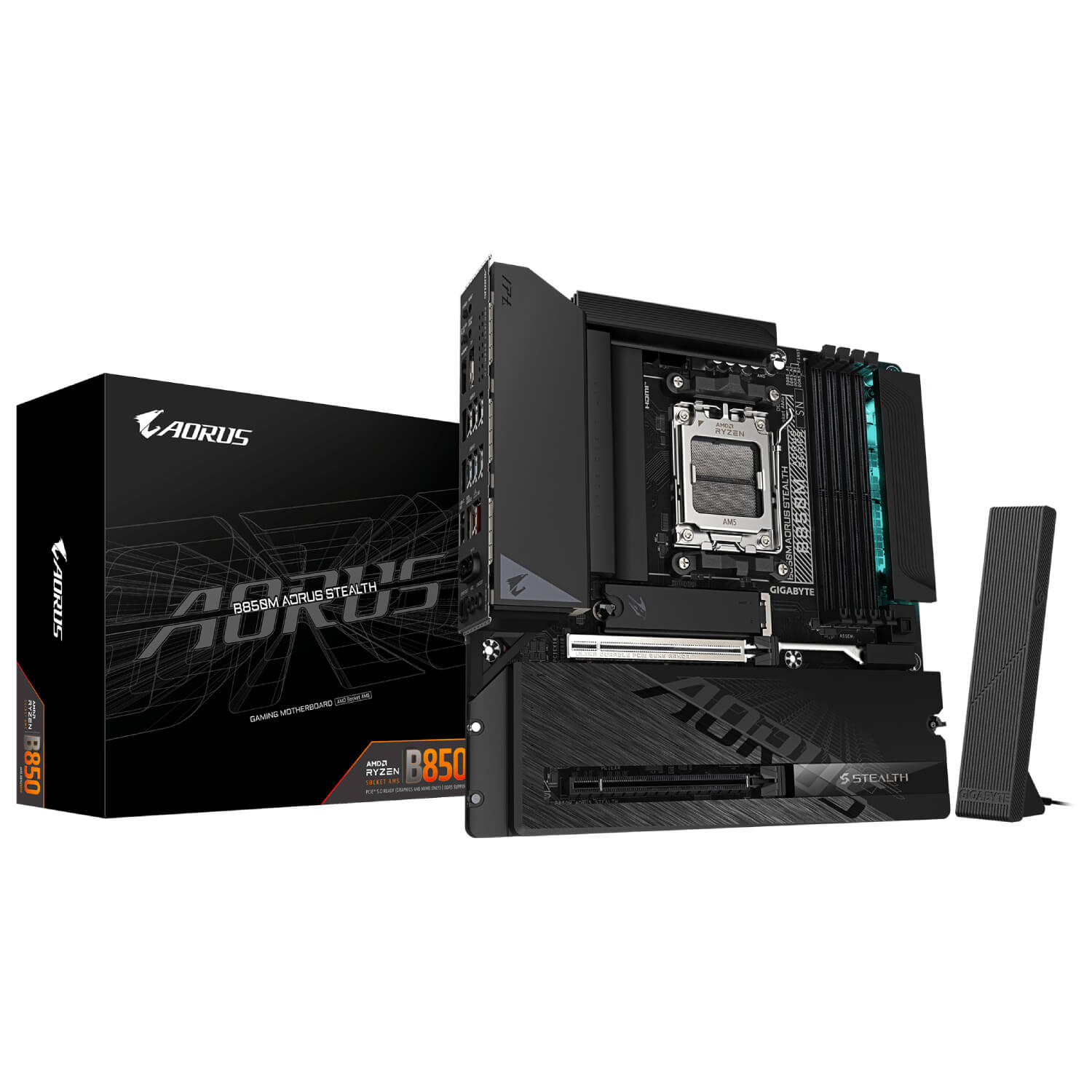

Gigabyte B850M AORUS STEALTH
A Micro ATX AMD B850 motherboard for compatible AMD Ryzen 9000, 8000 and 7000 Series processors on the AM5 platform
Combines DDR5 memory support, PCIe 5.0 expansion, high-speed storage and modern wired and wireless networking
AMD AM5 and DDR5 Platform
AMD Socket AM5 supports compatible Ryzen 9000, 8000 and 7000 Series processors
Four DDR5 DIMM slots support dual-channel memory with AMD EXPO and Intel XMP profiles on compatible modules
An 8+2+2 digital VRM design supports the processor, integrated graphics and CPU-connected PCIe resources
X3D Turbo Mode provides BIOS optimization for supported Ryzen processors
PCIe 5.0 and M.2 Storage
The primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000 and 7000 Series processors
Three M.2 slots provide NVMe storage expansion, including one PCIe 5.0 x4 slot with compatible processors
M.2 Thermal Guard and M.2 Thermal Guard Ext. help manage SSD temperatures
Wi-Fi 7 and 5GbE Networking
Integrated Wi-Fi 7 and Bluetooth 5.4 provide wireless connectivity for compatible devices and networks
Realtek 5GbE LAN supports high-speed wired network connections

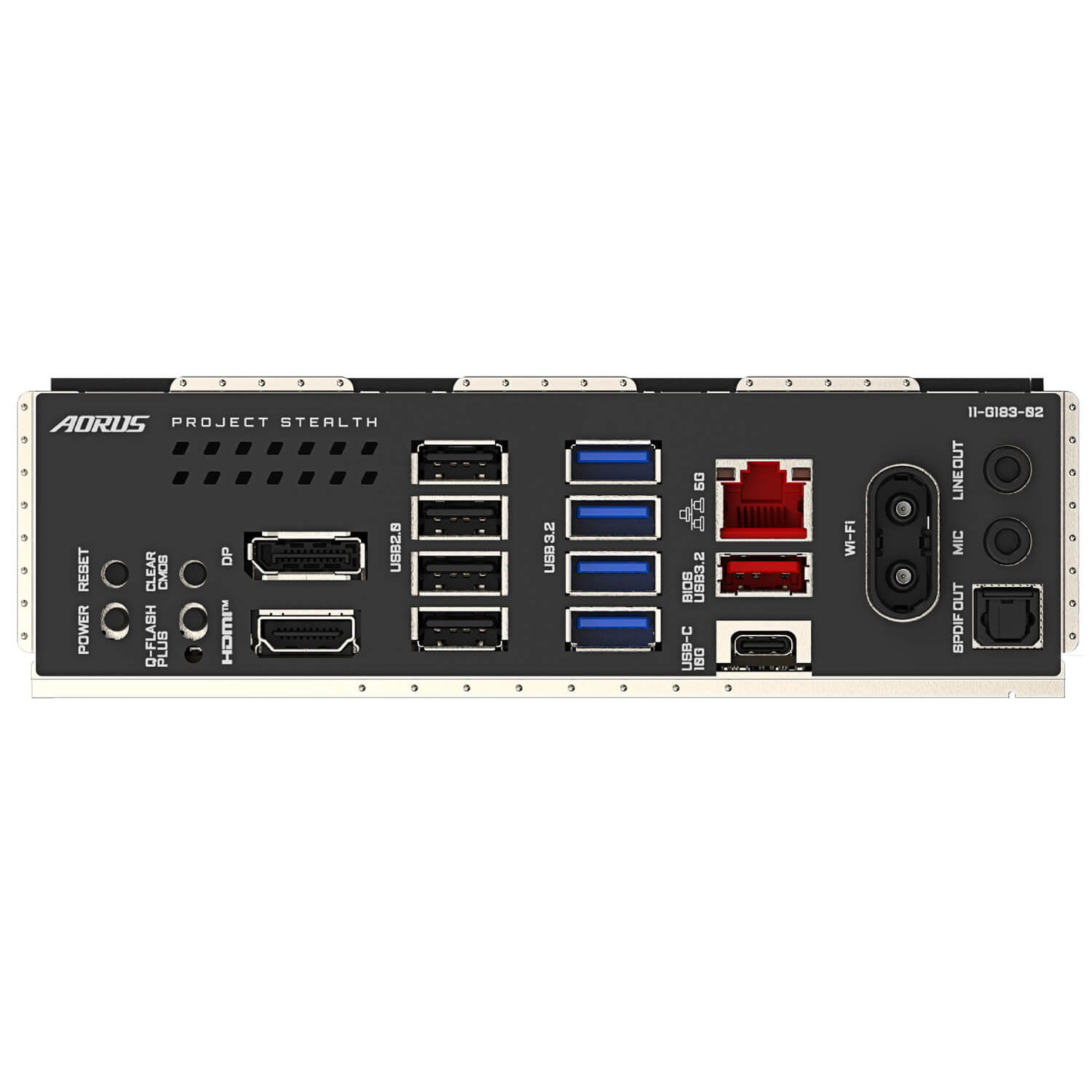

Rear connectivity includes USB-C 10Gbps, USB-A, HDMI and DisplayPort
STEALTH and DIY-Friendly Design

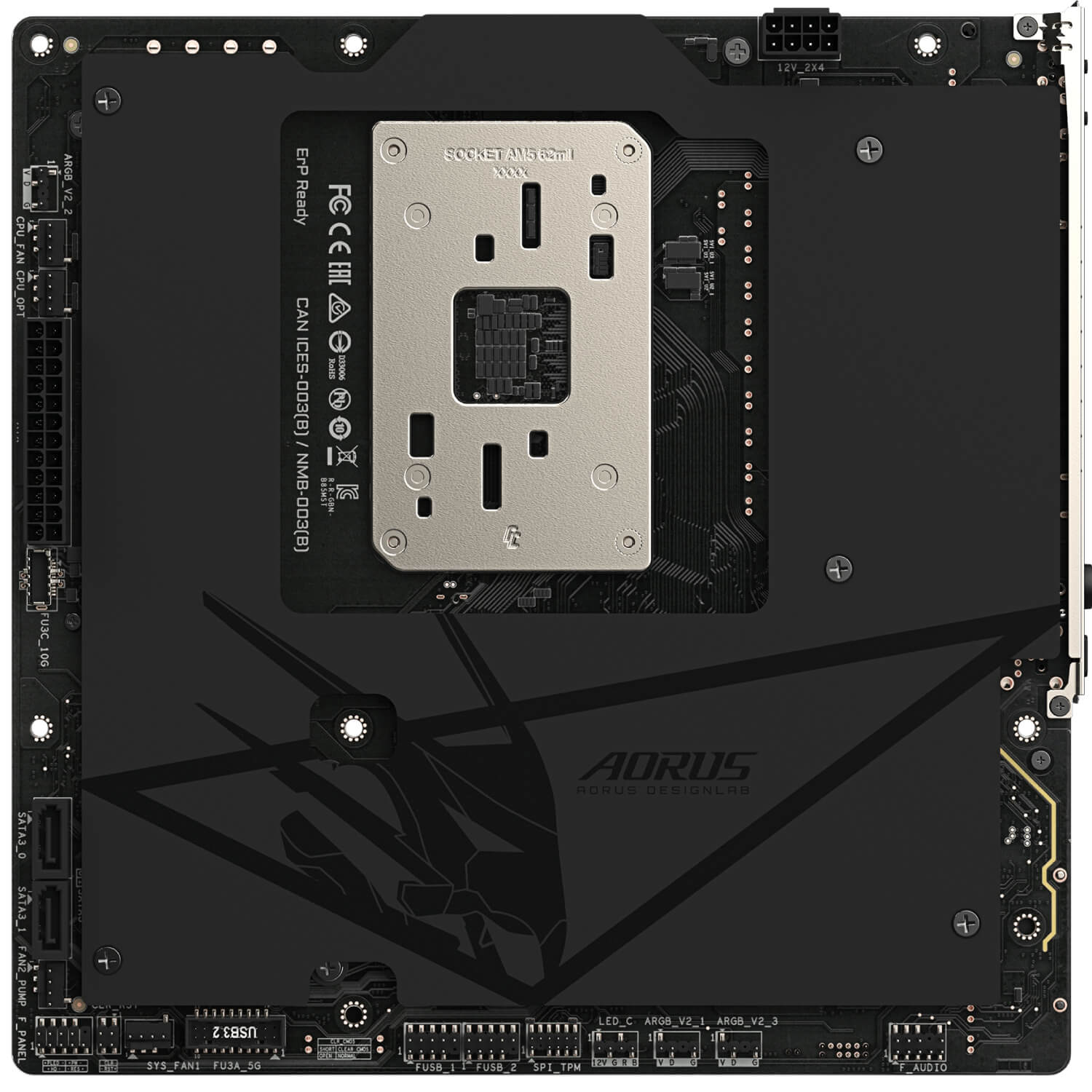

The STEALTH back-connect layout places key power and signal connectors on the rear side of the motherboard for use with compatible cases
PCIe EZ-Latch Plus and M.2 EZ-Latch designs simplify graphics card and M.2 installation or removal
WIFI EZ-Plug simplifies antenna connection, while Q-Flash Plus supports convenient BIOS updating
