Name: GIGABYTE BRIX BAREBONE BMCE-5105 GB-BMCE-5105 Mini PC
SKU: GB-BMCE-5105
Price: 231 USD
Availability: InStock

Description

GIGABYTE BRIX BAREBONE BMCE-5105 GB-BMCE-5105 Mini PC

Ultra compact PC design at only 0.67L (56.22x103x116.52mm) 1st 10 nm small core CPU Support M.2 2280 slot for SSD (support PCI-e x2+SATA) Supports 2.5″ HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3) 1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 Realtek 8111HS Gigabit LAN HDMI 2.0b support 4K@60P HDR10 mDP 1.4b support 4K@60P HBR2 Realtek ALC255 Codec 4 x USB 3.1 (1 x USB Type-C) Headphone Jack Mic-phone Jack VESA Mounting Bracket (75 x 75mm + 100 x 100mm) AC-DC adapter : 100-240V input, 19V 65W OS Support : Microsoft Windows 10 64Bit 1x Kensington Lock slot System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C

Specification

Dimension

56.22 mm x 103 mm x 116.52 mm (2.21″ x 4.06″ x 4.59″)
Motherboard Size

105 x 110 mm
CPU

Intel^® Pentium^® Processor N5105
2.0-2.9GHz, 4C/4T (TDP 10W)
Memory

1 x SO-DIMM DDR4 slots
2933MHz
Max. 16GB
LAN

Gigabit LAN (Realtek 8111HS)
Wifi Card

Dual Band Wireless-802.11 AC
Graphics

Intel^® UHD Graphics 605
Audio

Realtek ALC255
HDMI Resolution (Max.)

HDMI2.0a
4096 x 2160 @ 60 Hz
Mini DP Resolution (Max.)

DP1.2a
4096 x 2160 @ 60Hz
Storage

Supports 2.5″ HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
Expansion Slots

1 x M.2 slot (2280_storage) PCIe X2/SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

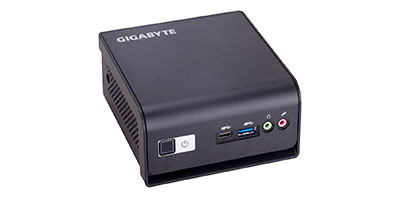

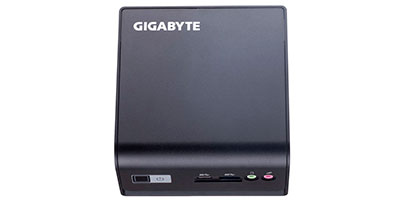

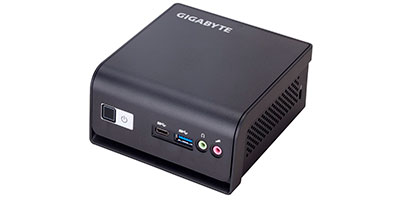

Front I/O

1 x USB3.0
1 x USB3.0 type C
1 x Headphone jack
1 x Microphone jack

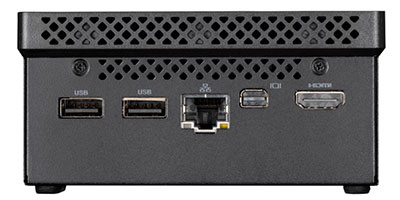

Rear I/O

1 x HDMI(2.0a)
1 x mini DisplayPort (1.2a)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Power Supply

Input: AC 100-240V
Output: DC 19V
2.1A
VESA

Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS

Win10 64bit

Environment

System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

Information

Intel® Pentium® Silver and Celeron® Processor BRIX use the newest Intel® Pentium® Silver and Celeron® processors offer amazing video conferencing abilities, faster wireless connectivity, improved overall application and graphics performance, and long battery life. BRIX with Intel Pentium Silver and Celeron processor family delivers unmatched balance of performance, experience and value for education and entry level computing. The platform includes ultra-fast Wi-Fi , 4K media support, next-gen Intel UHD Graphics and improvements in security in your choice of platform and OS at a price point for users who want rich experiences at a great value.
	Latest Intel 10nm Pentium Silver/ Celeron Processor Performance Intel new generation of small processor is much more powerful than before. Thanks new 10nm manufacturing processing and new core/GPU architectures, user can benefit not only performance boost, but also enjoy high-detail of UHD contents never before. Overall system benchmark can be easily over 40% and UP.
Dual Storage Support New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1×2280), but also can be loaded with a traditional 2.5” HDD/SSD as well. It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.
	DDR4 2933MHz Support GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface. The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.
VESA Support Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
	System Overview GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors. It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor. A gigabit ethernet speed up your internet/intranet connectivity.
