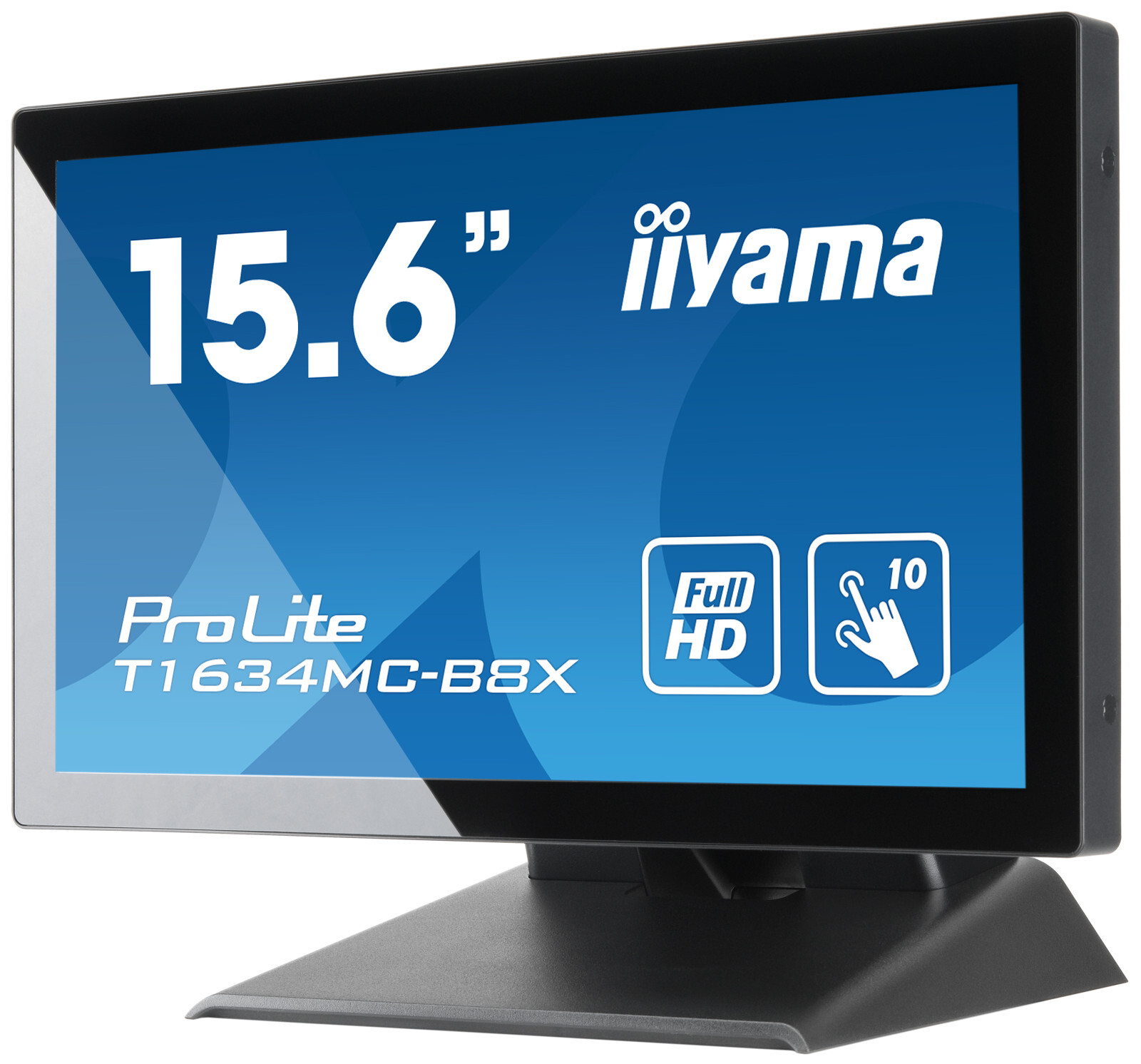

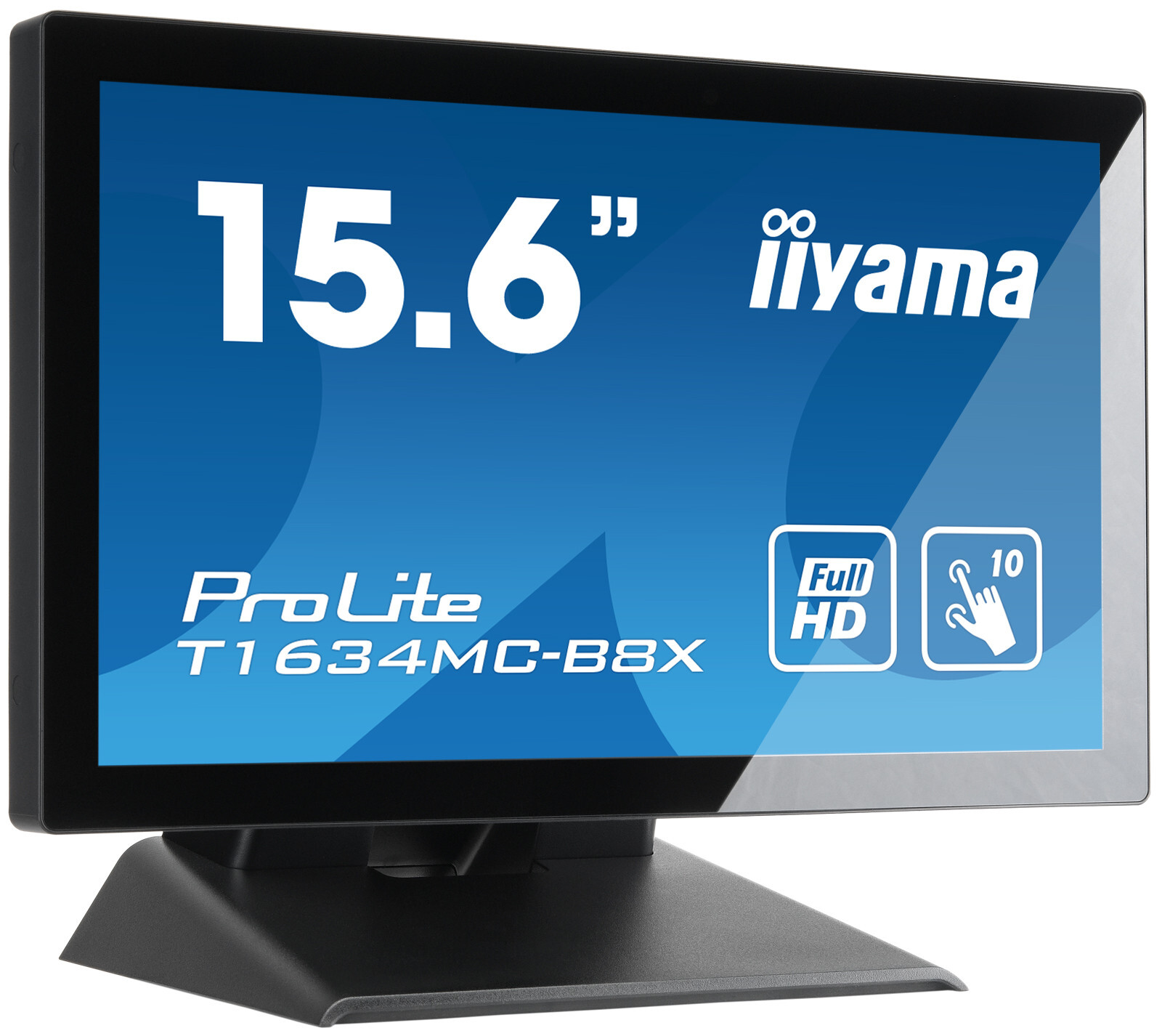

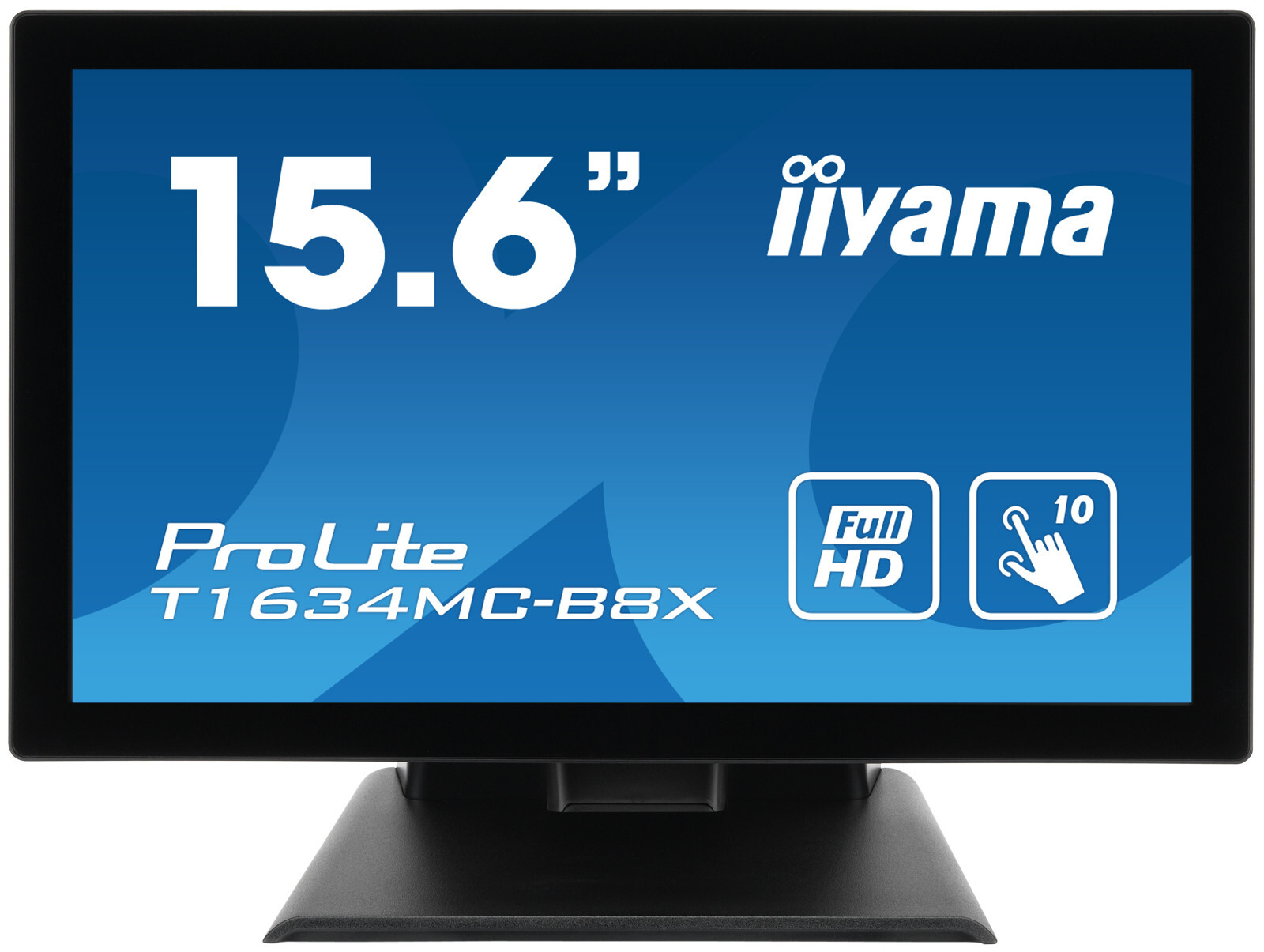

IIYAMA 15.6″ ProLite T1634MC-B8X IPS Full HD PCAP 10 Point Touch Monitor Glass

15.6″ Full HD PCAP 10 point touch monitor with
edge-to-edge glass, IPS Panel Technology and touch through glass function

The ProLite T1634MC-B8X uses projective capacitive touch
technology, built into an eye catching bezel with edge-to-edge glass. Featuring
IPS Panel Technology and Full HD (1920×1080) resolution, it offers natural,
highly accurate colours and wide viewing angles. In addition to the superb
image quality, the screen comes with an IP65 rating, which means the screen and
bezel is totally dust and water resistant, making it a perfect solution for
demanding environments. The Touch-Through-Glass function guarantees a seamless
and accurate touch response for interactive behind-glass-retail applications.

DISPLAY CHARACTERISTICS

Design  Edge to edge
glass

Diagonal               15.6″,
39.5cm

Panel     IPS Panel
Technology LED

Native resolution             1920
x 1080 @60Hz (2.1 megapixel)

Aspect ratio        16:9

Panel brightness              450
cd/m²

Brightness           405
cd/m² with touch

Light transmittance         90%

Static contrast   700:1
with touch

Response time (GTG)    25ms

Viewing zone     horizontal/vertical:
178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support  16.2mln
(6bit + Hi-FRC)

Horizontal Sync 30 –
84kHz

Viewable area W x H      344.2
x 193.6mm, 13.6 x 7.6″

Pixel pitch           0.179mm

Bezel colour and finish   black,
matte

TOUCH

Touch technology            projective
capacitive

Touch points      10
(HID, only with supported OS)

Touch method  stylus,
finger, glove (latex)

Touch interface                USB

Supported operating systems    All
iiyama monitors are Plug & Play and compatible with Windows and Linux. For
details regarding the supported OS for the touch models, please refer to the
driver instruction file available in the downloads section.

Through-Glass   6mm

Palm rejection   yes

INTERFACES / CONNECTORS / CONTROLS

Analog signal input          VGA
x1

Digital signal input            HDMI
x1

DisplayPort x1

HDCP     yes

FEATURES

Extra      Anti-fingerprint
coating, touch through-glass

Glass thickness 2.4mm

Glass hardness  7H

Water and dust protection          IP65
(front)

OSD key lock      yes

GENERAL

OSD languages  EN, DE,
FR, ES, IT, CN, JP

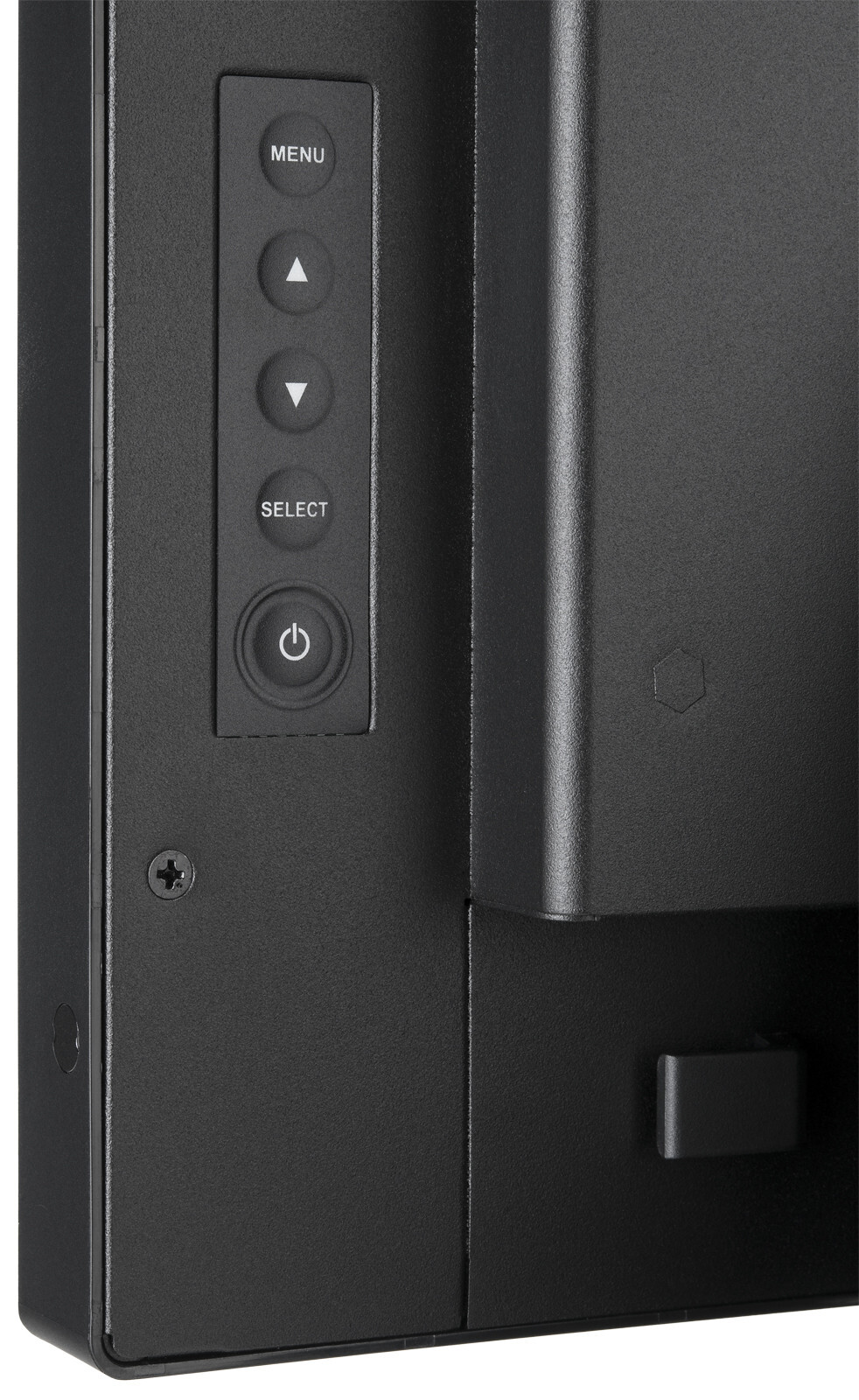

Control buttons                Menu,
Scroll up/ Brightness, Scroll down/ Contrast, Select, Power

User controls     picture
(contrast, brightness, H-position, V-position, phase, clock, auto adjust),
advanced (color temp., sharpness), OSD (timeout, position, H-position,
V-position, touch switch), option (reset, language, source select, display
mode, factory)

Plug&Play            DDC2B

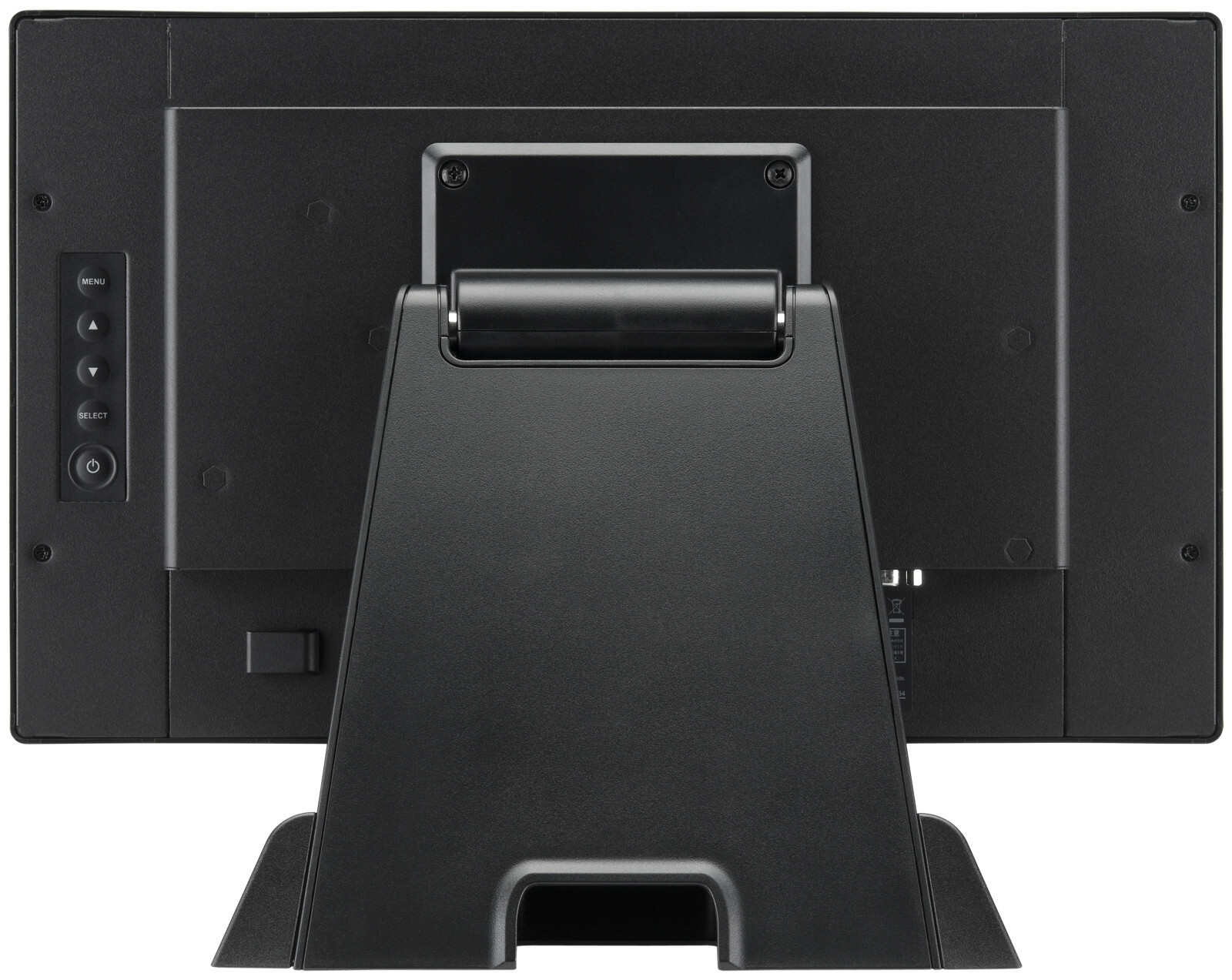

MECHANICAL

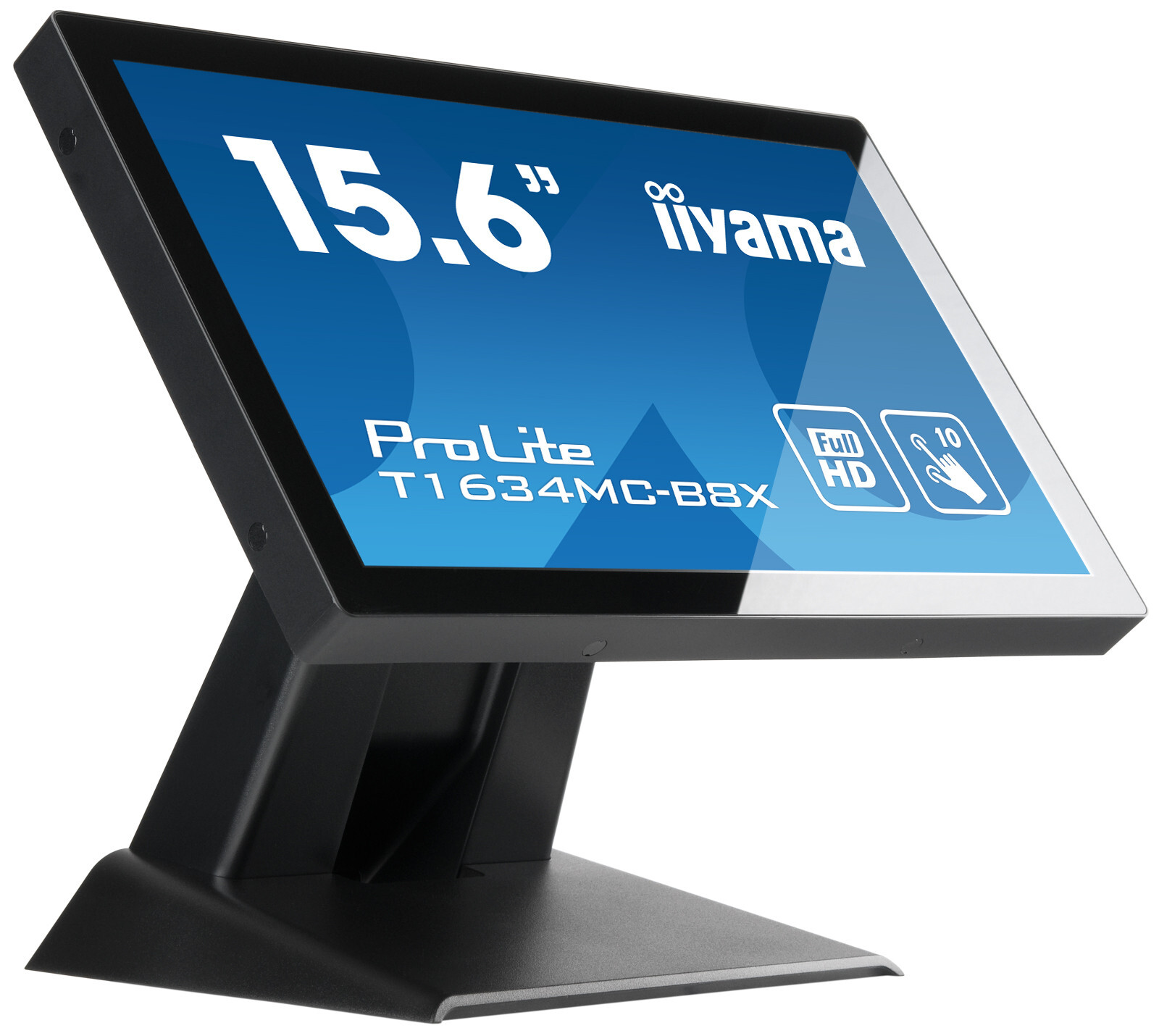

Orientation         landscape,
face-up

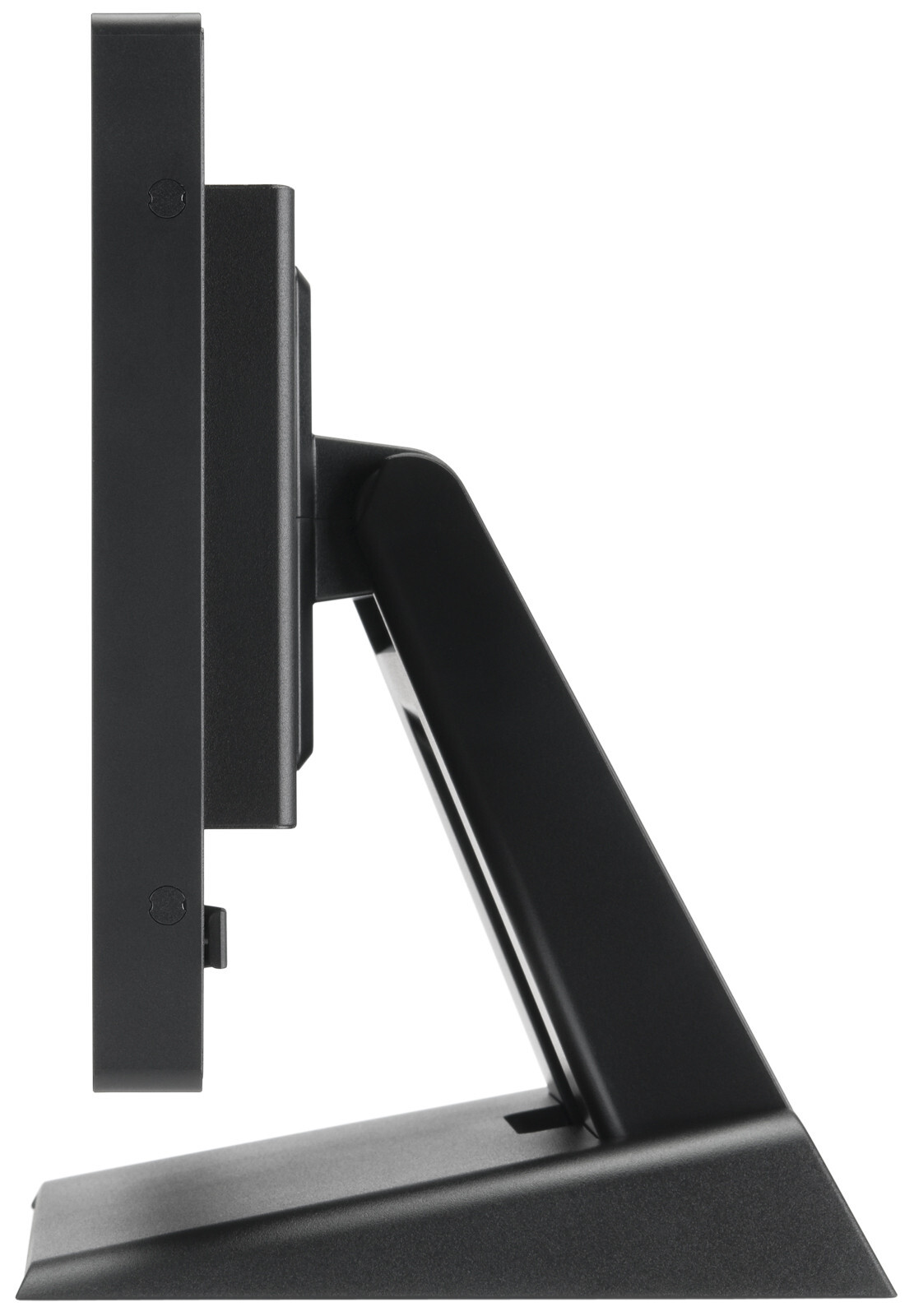

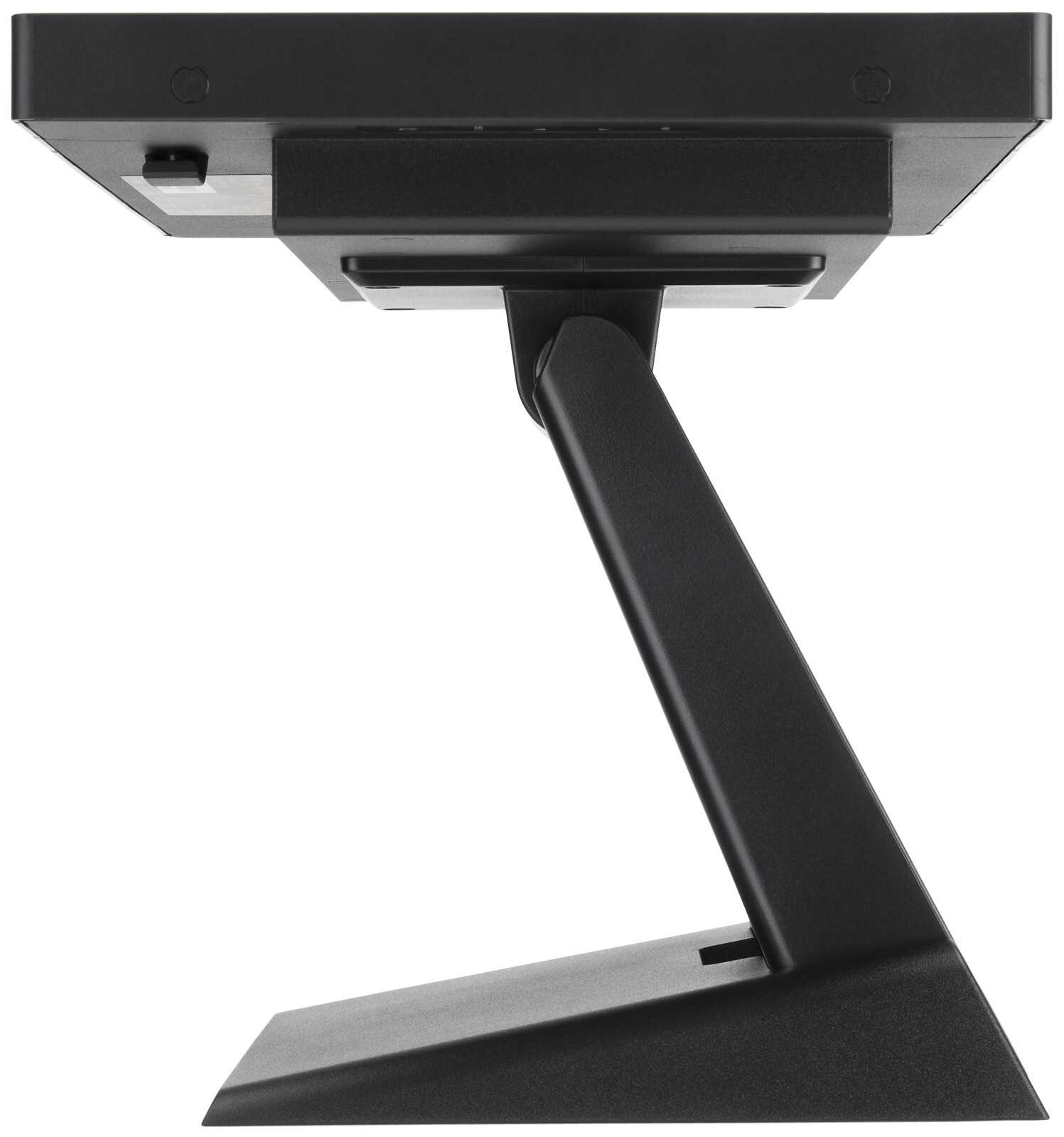

Tilt angle              90°
up; 5° down

VESA mounting 100 x
100mm

ACCESSORIES INCLUDED

Cables   power, USB,
HDMI, DP

Guides  quick start
guide, safety guide

Other    AC adapter
