Description
Specification
Chipset
Intel B760
Socket
1700
Memory Type
DDR4
MB Form Factor
Micro ATX
Network Connections
LAN 2.5 Gb/s
Graphics Interface
HDMI
\ DisplayPort
USB Connector
USB 2.0
\ USB 3.2
Audio O.B
3 port
DDR4 Slots
2
PCI-E x16
1
PCI-E x16 (x4) Slot
1
USB 3.2
2
USB 2.0
6
Storage Interface
SATA3
\ M.2 PCIe
MB Expansion Slots
PCIe 5.0 x16
\ PCIe 3.0 x16, mode x4
M.2 PCIe Connectors
3
SATA3 Ports
2
Information

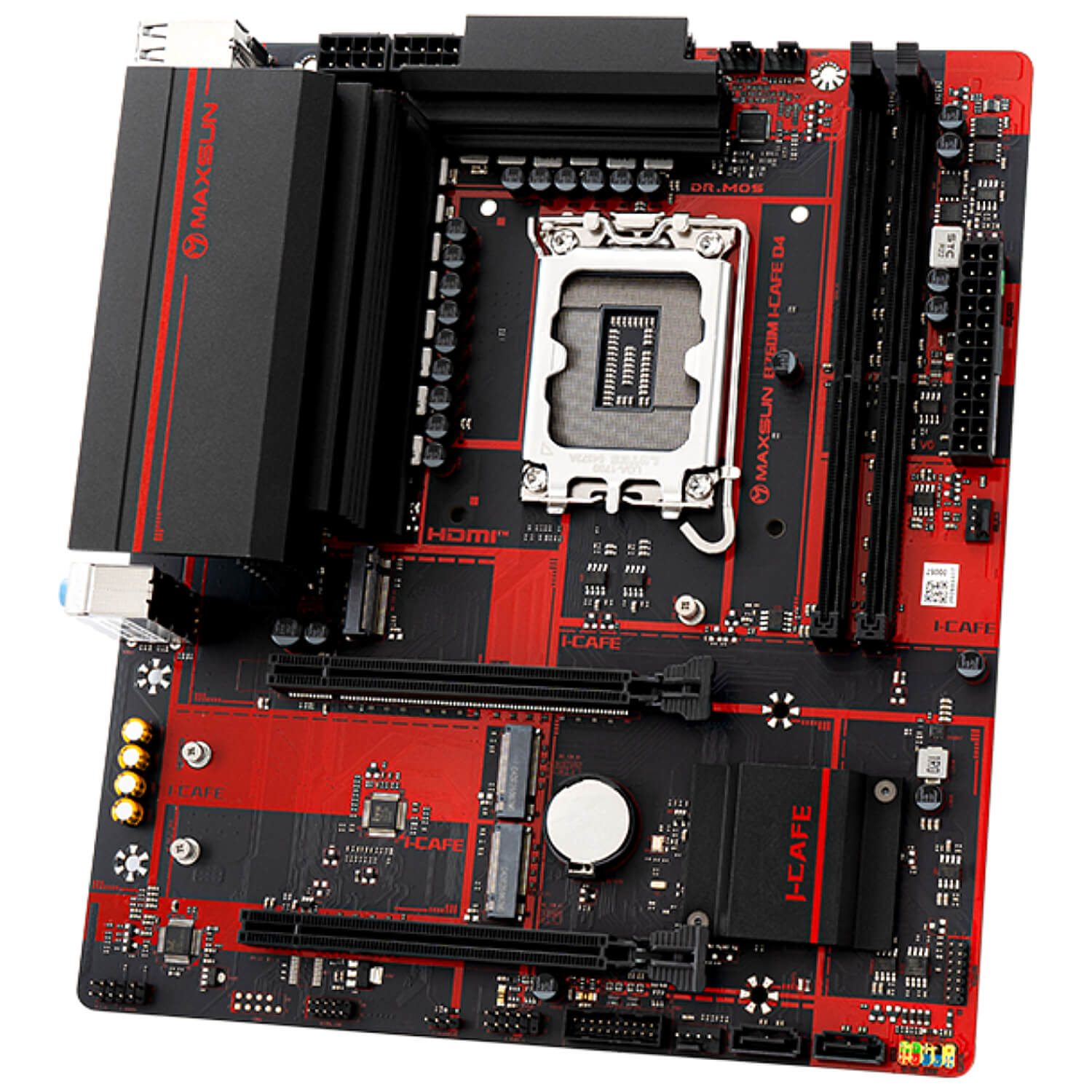

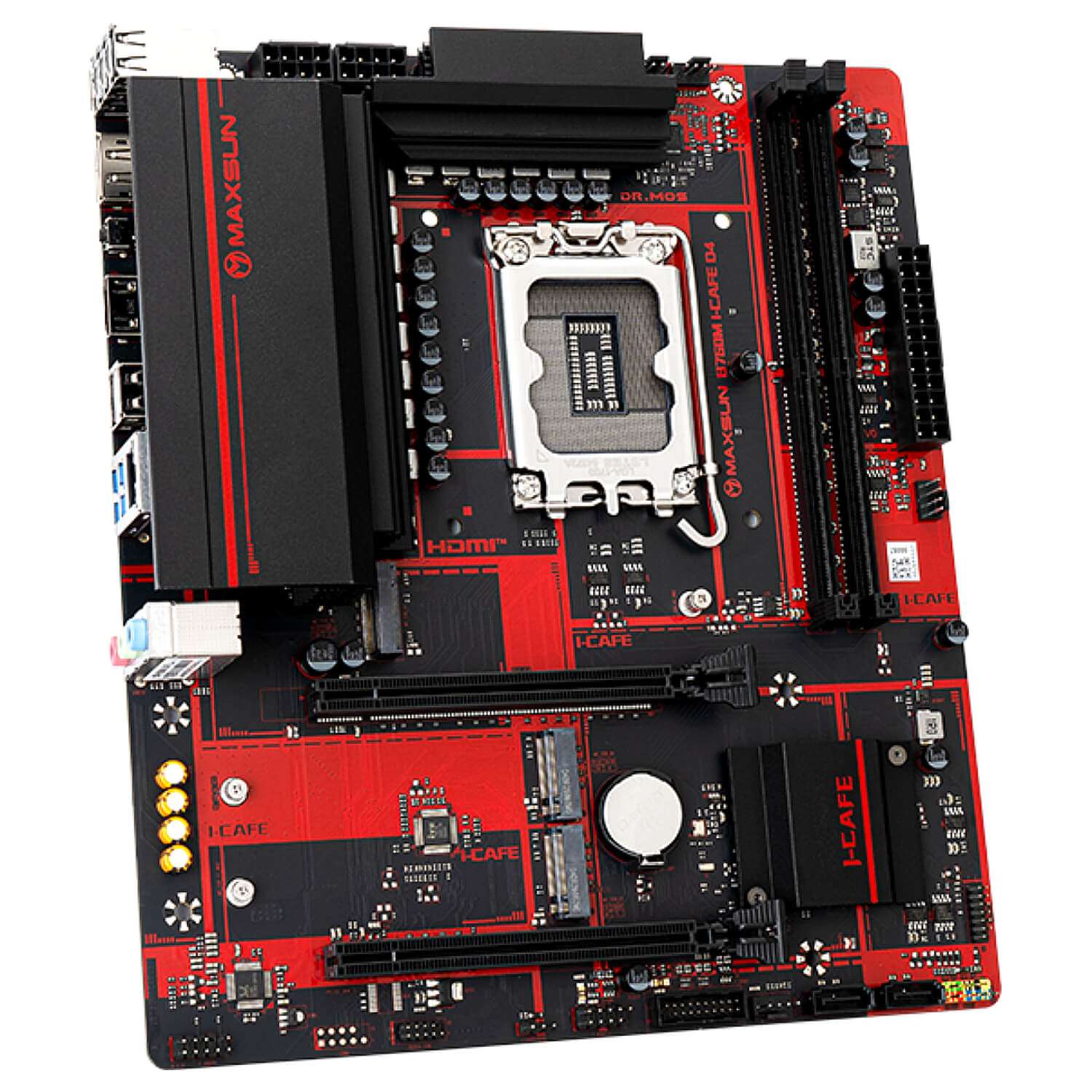

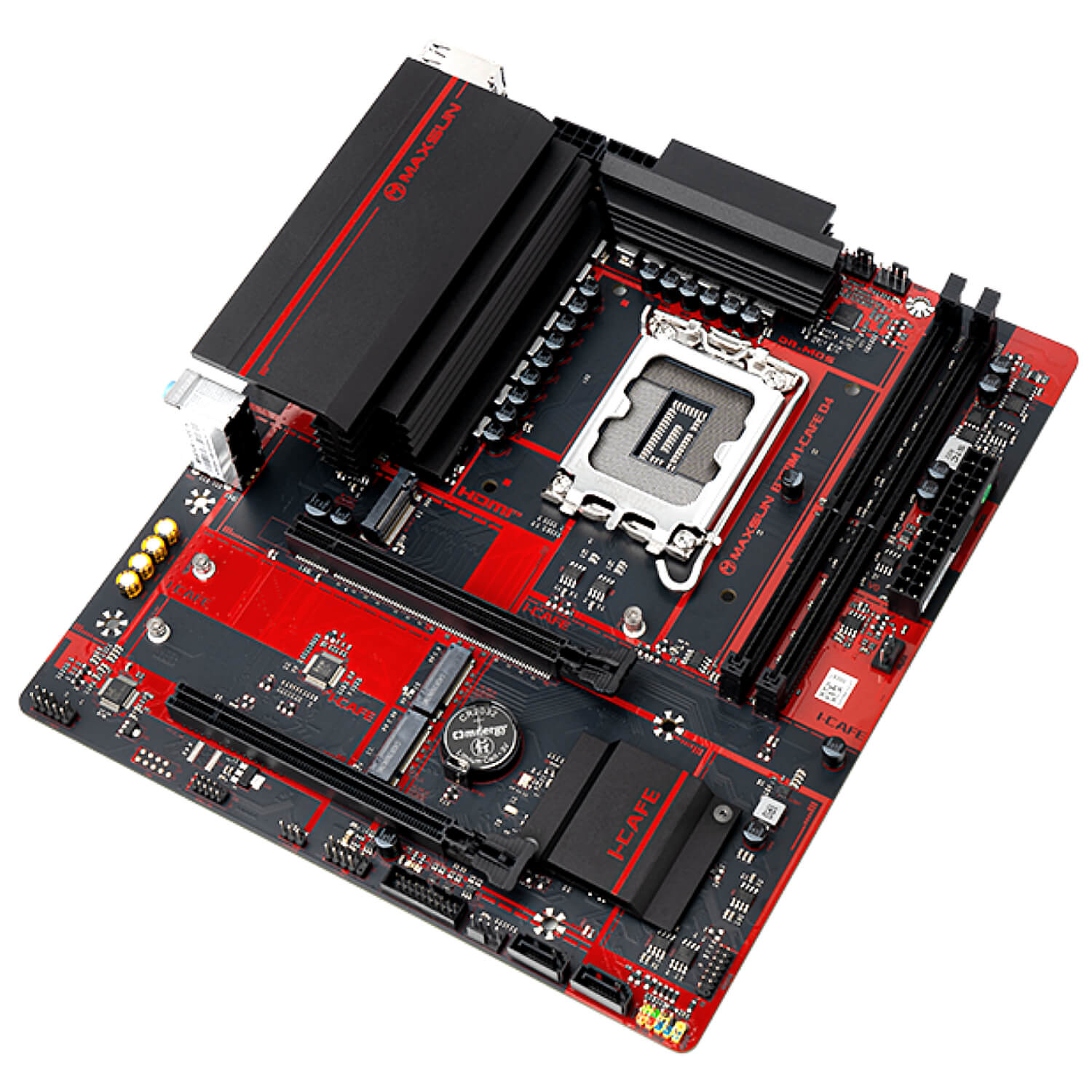

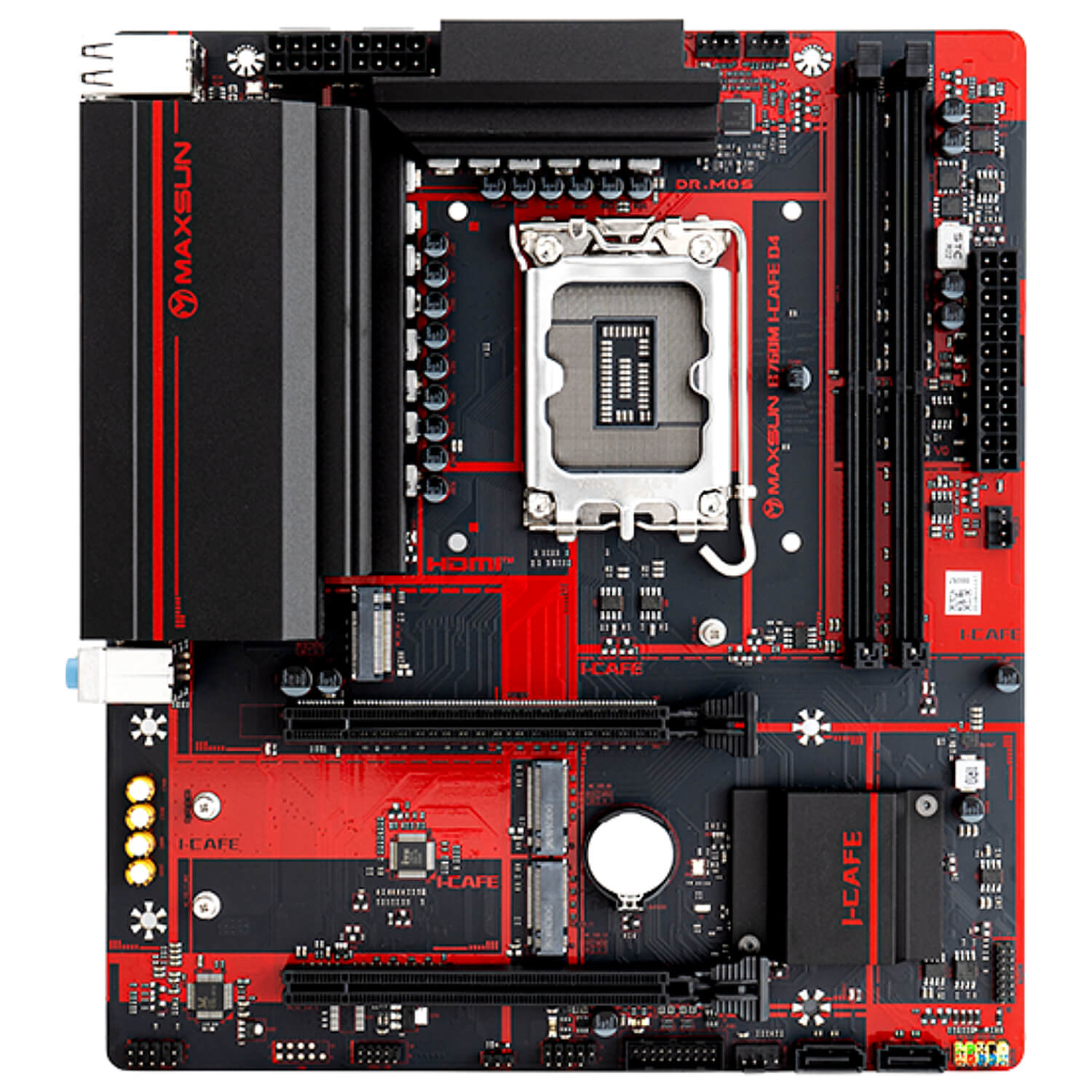

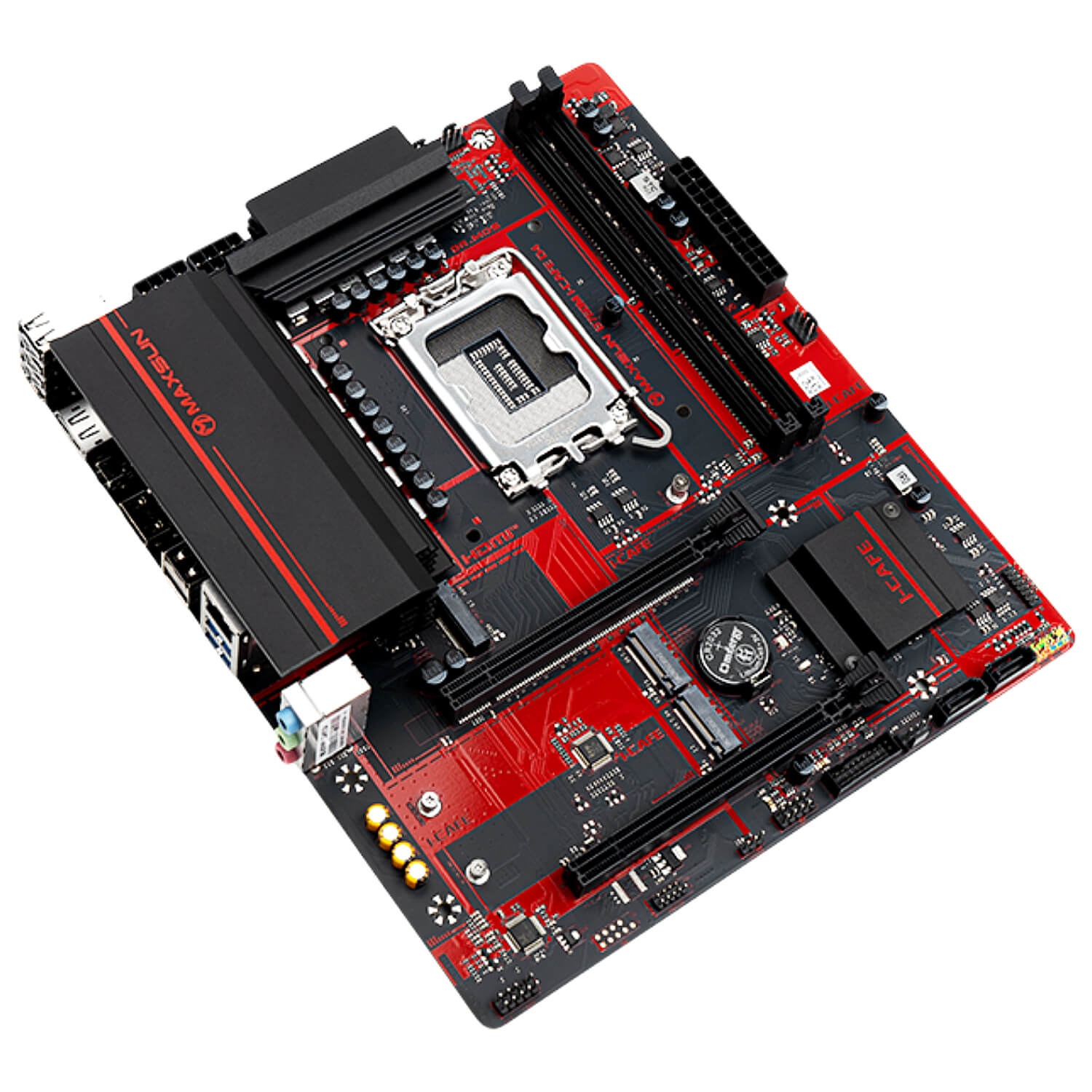

MAXSUN B760M I-CAFE D4
A Micro-ATX motherboard for Intel LGA1700 desktop systems
Built with the Intel B760 chipset and DDR4 memory support
Intel B760 Platform
The motherboard uses the Intel B760 chipset
It supports Intel 14th, 13th and 12th Gen Core processors for the LGA1700 socket
DDR4 Memory Support
The board is equipped with two DDR4 memory slots
This D4 version is intended for builds using DDR4 memory
Rear I/O Panel
The rear panel provides the external ports needed for everyday desktop use
Storage Options
Three M.2 Key-M slots support PCIe 4.0 modes for compatible 2280 SSDs
Two SATA 6Gb/s ports are available for additional storage drives
Compact System Builds
The Micro-ATX format makes the board suitable for compact desktop PCs
It is a practical platform for office, home and everyday PC configurations
