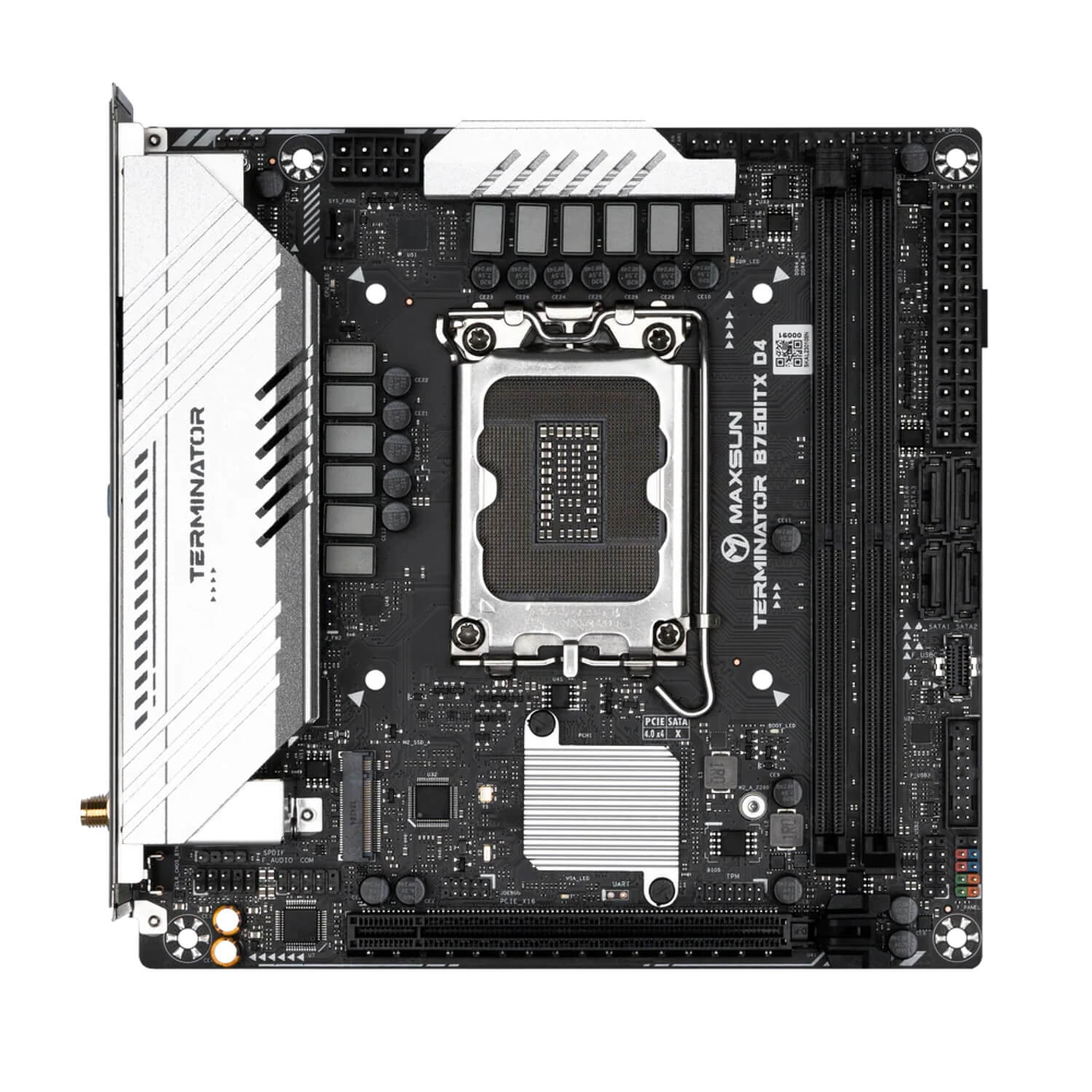

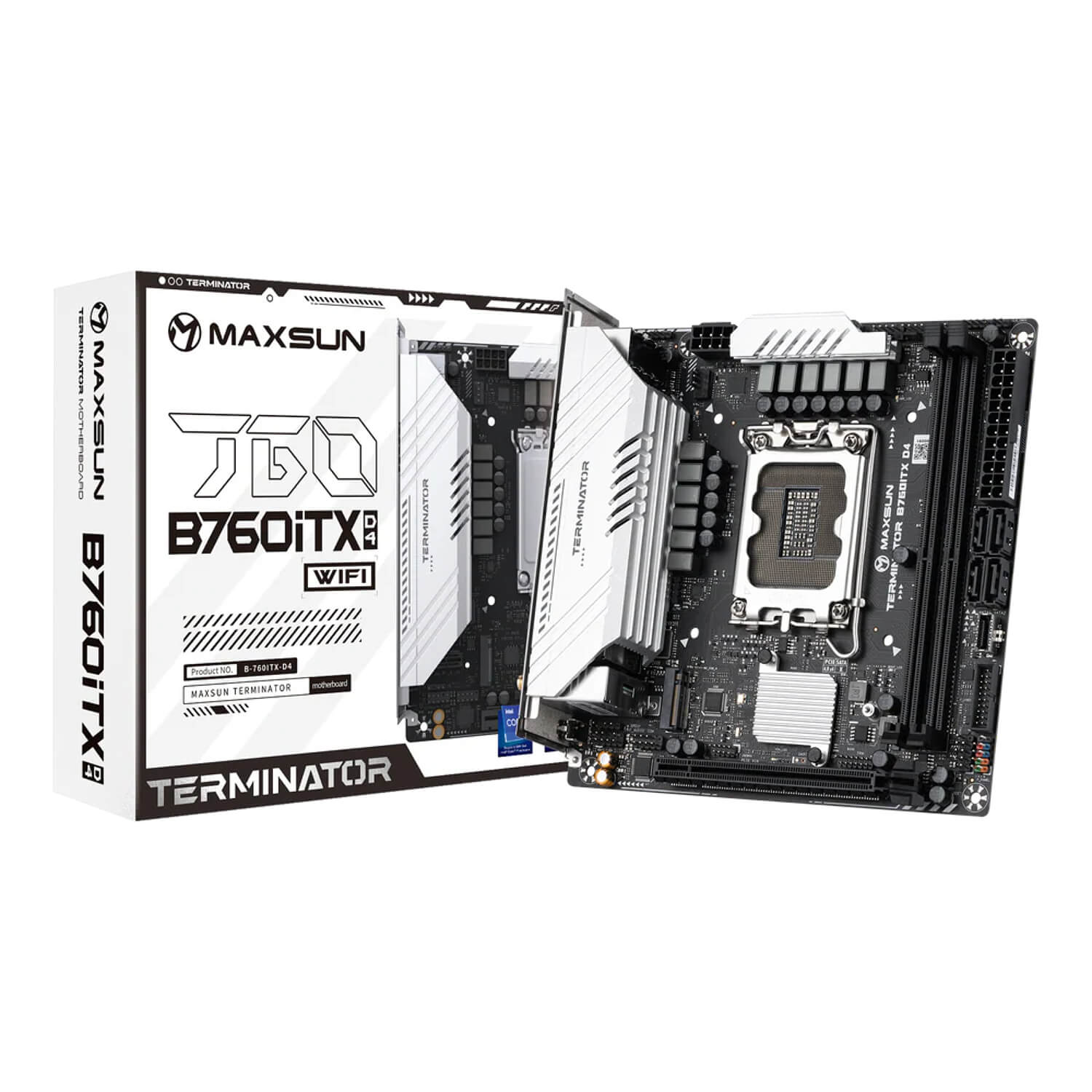

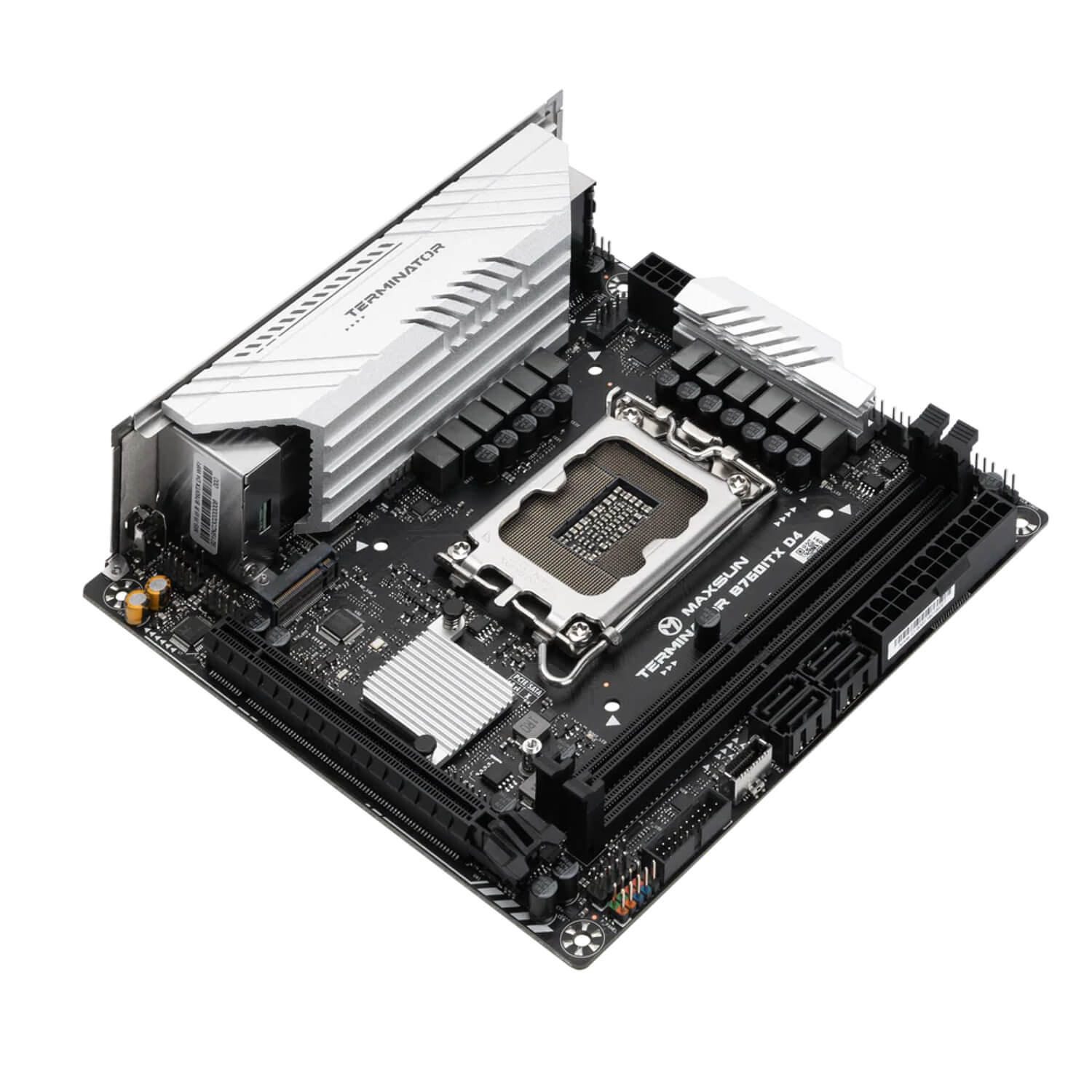

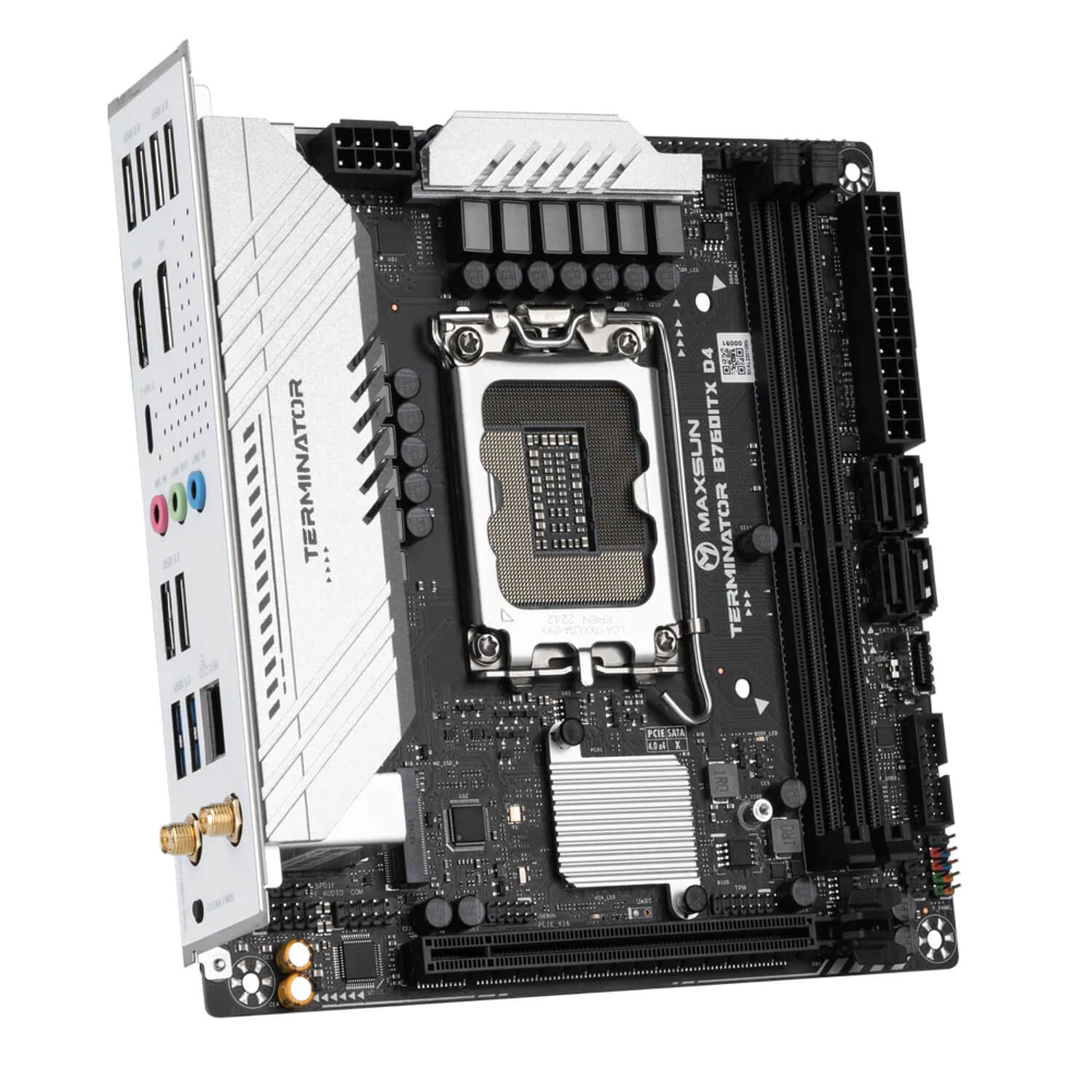

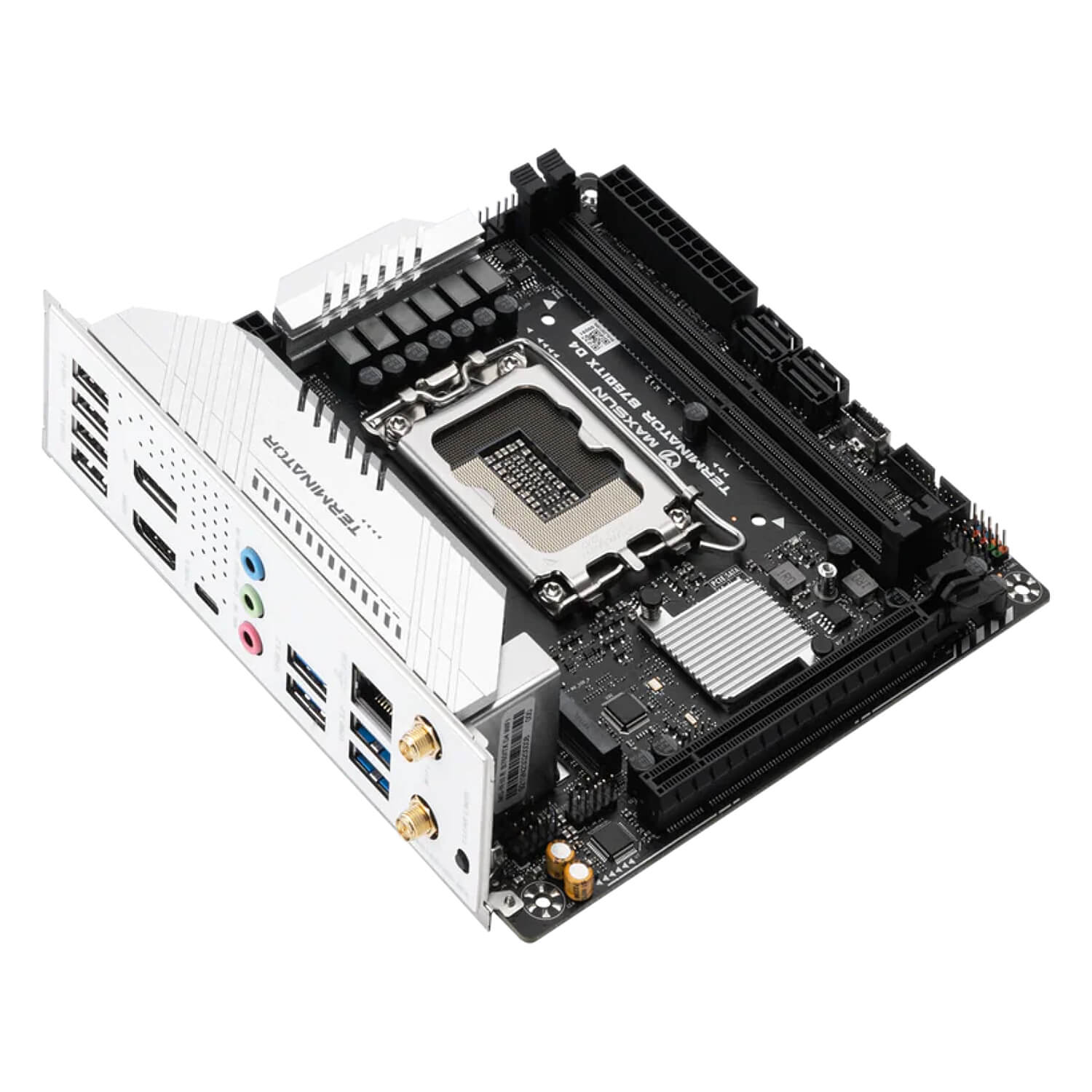

MAXSUN Terminator B760ITX D4 WIFI V3

A compact ITX motherboard for Intel LGA1700 desktop PC builds

Designed with Intel B760 chipset, DDR4 memory support and modern wired and wireless connectivity

Compact Intel B760 Platform

Supports 12th and 13th Gen Intel Core processors, Pentium Gold and Celeron processors for LGA1700

The ITX 170x170mm form factor is suitable for compact desktop builds

8+1+2 power supply design and 60A Dr.MOS support stable operation for compatible CPUs

DDR4 Memory Support

Two DDR4 memory slots support up to 64GB total capacity

Intel XMP 2.0 support allows compatible memory profiles to be used

Dual-channel memory support helps improve system responsiveness in everyday use

PCIe and Storage

One PCIe 5.0 x16 slot is available for a compatible graphics card or expansion card

Two M.2 2280 slots support PCIe 4.0 x4 NVMe SSD storage

Four SATA 6Gb/s ports are available for additional storage drives

Network and Wireless

Realtek 2.5G LAN provides fast wired networking for home and office setups

Intel Wi-Fi 6E AX211 supports 2.4GHz, 5GHz and 6GHz wireless networks with compatible routers

Bluetooth 5.3 is available for wireless accessories and device pairing

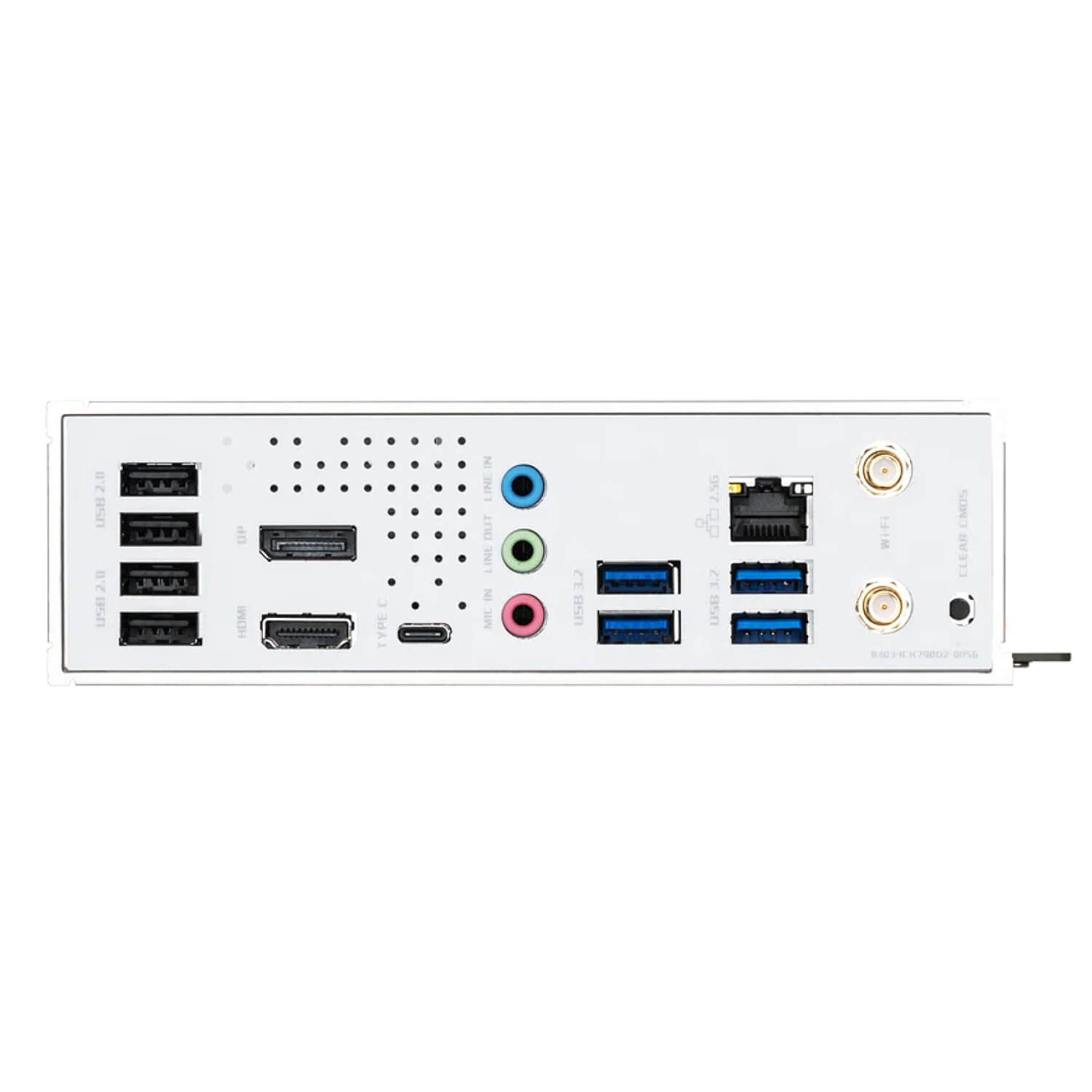

Display and USB Connectivity

Rear display outputs include DisplayPort 1.4 and HDMI

Front and rear USB Type-C support gives the system flexible device connectivity

Realtek ALC897 audio provides 5.1-channel high definition audio
