Description
Wavelength • Tx: 1490nm / DS-PMA-C+.
• Rx: 1310nm

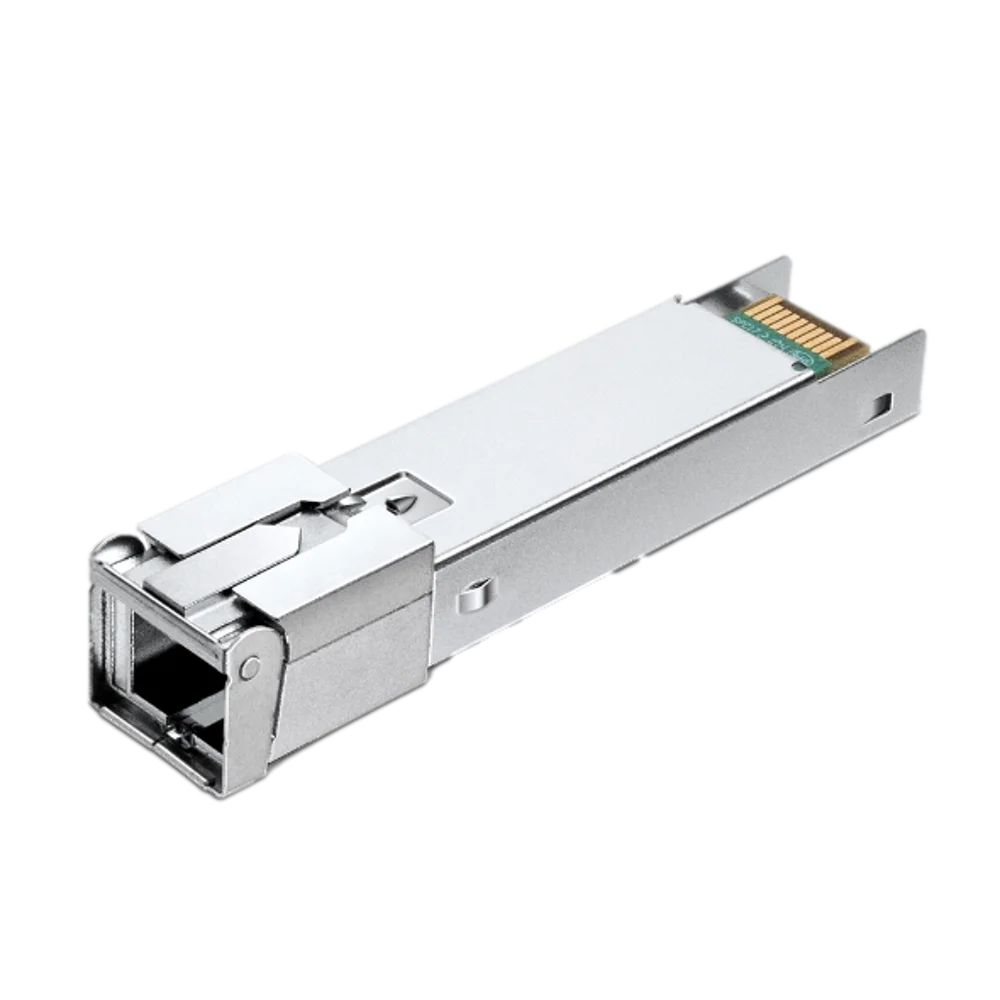

Connector • Device: GPON SFP
• Fiber: SC/UPC
Fiber Type Single Fiber (9/125um)
Data Rate • Tx: 2488.32Mbps
• Rx: 1244.16Mbps
Power Level Class C+ (Tx Optical Power +3~+7dBm，Rx Sensitivity <-30 dBm，Rx Saturation Optical Power>-12dBm)
Extinction Ratio >8.2dB
Rx Optical Power Tolerance >5dBm
Transmission Distance Max. 20 km
Hot Swap Yes
Nominal Voltage 3.3 V (< ± 5％)
Diagnostic Function Monitors parameters such as voltage, transceiver power, and temperature
Electrical Level • Data Interface: LVPECL
• Control Interface：LVTTL
Package 2× 10 SFF
